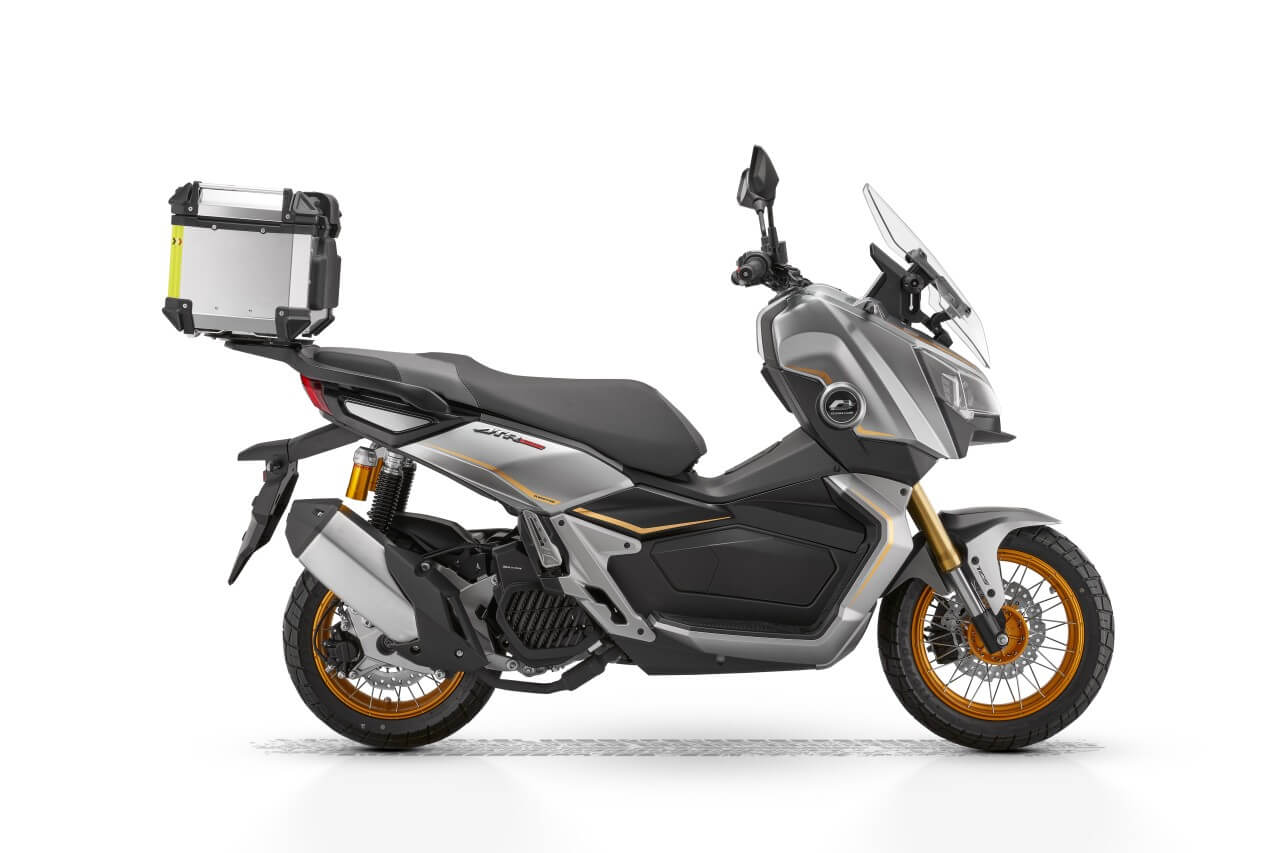

ATR 125

Price:

0,00 lei
ATR 125
Inapoi la motociclete

ATR 125

Capacitate 125cc
Cai putere 10.8/8750(14.7ps)
Cuplu 12.0N·m/8250
Inaltime la sa 795mm
Garda la sol 165mm
  2. Shop
  3. ATR 125
SRV 125
SRV 125
0,00 lei
0,00 lei
SQ 16
SQ 16
0,00 lei
0,00 lei

ATR 125

https://b2b.qjmotor.com.ro/web/image/product.template/16760/image_1920?unique=d504eb6

0,00 lei 0.0 RON 0,00 lei

0,00 lei

Nu este disponibil pentru vânzare

    Această combinație nu există.

    QJ125T-23F
    Produsul este: Disponibil (imediat)
    /report/barcode/?barcode_type=QR&value=False&width=100&height=100&humanreadable=0
    Get in Contact with Us
    Contactați-ne
    Share :
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    Specificatii si date tehnice complete

    Motor
    Tip 1-Cylinder, SOHC, Liquid-Cooled
    Cilindree 125cc
    Alezaj x Cursa 52.4*57.9mm
    Putere Max 10.8/8750(14.7ps)
    Cuplu Max 12.0N·m/8250
    Alimentare EFI
    Start Electric
    Ambreiaj Automatic CVT
    Transmisie Belt
    Sasiu
    Suspensie Fata Telescopic forks
    Suspensie Spate Telescopic coil spring oil damped
    Anvelope Fata 110/80-14
    Anvelope Spate 130/70-13
    Frane Fata Disc ø240mm (ABS)
    Frane Spate Disc ø220mm (ABS)
    Dimensiuni
    Dimensiuni 1975*770*1160mm(Telescopic forks) 1975*770*1180mm(Upside down telescopicforks)
    Ampatament 1345mm
    Inaltime Sa 795mm
    Garda la sol 165mm
    Capacitate Rezervor 8L
    Greutate 140


    Contact

    Solicita o oferta pentru acest model

    Completeaza formularul si revenim catre tine cu detalii despre motocicleta selectata.

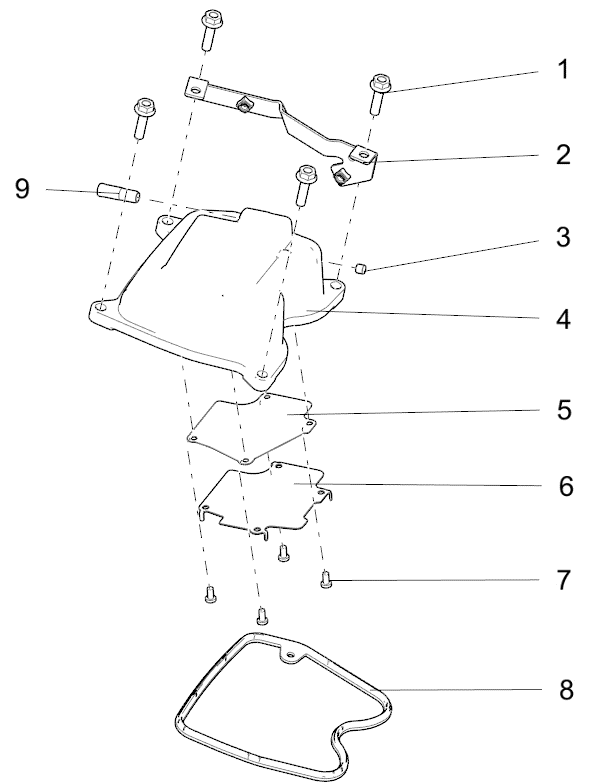

    E01 CYLINDER HEAD E01 CYLINDER HEAD

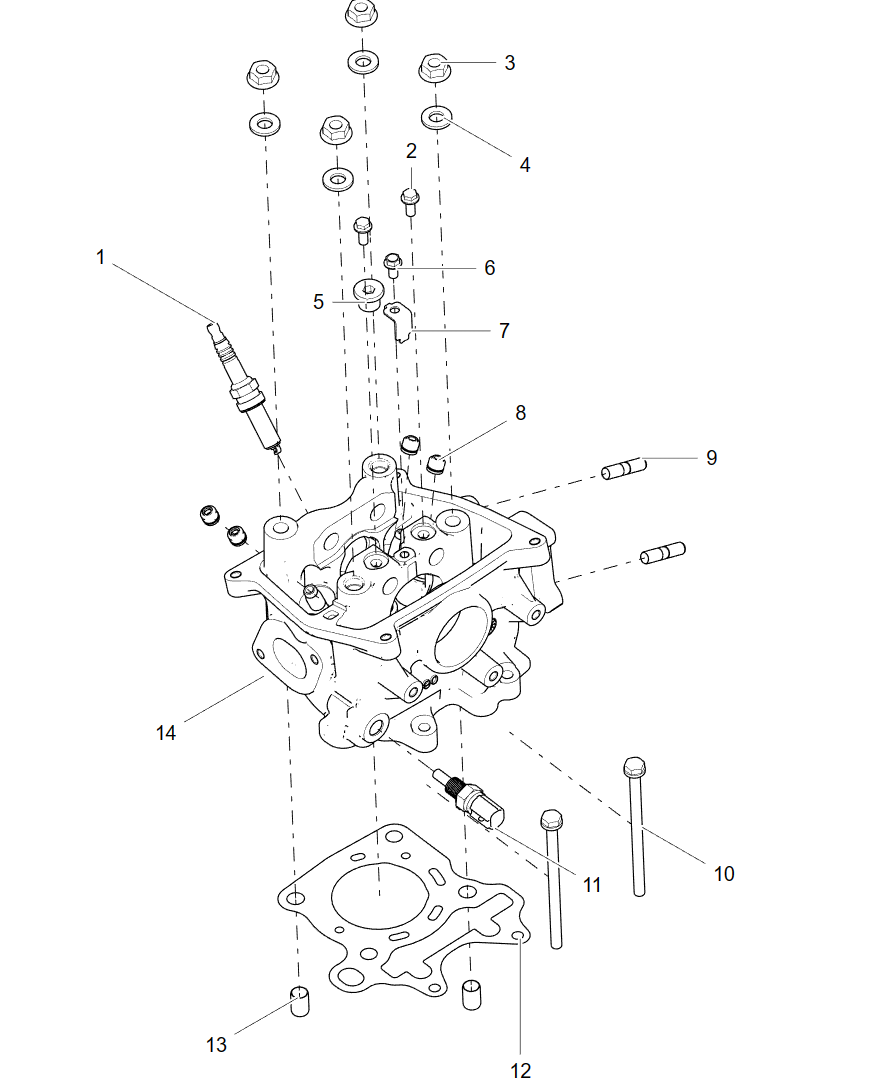

    E02CLYINDER COVER ASSY E02CLYINDER COVER ASSY

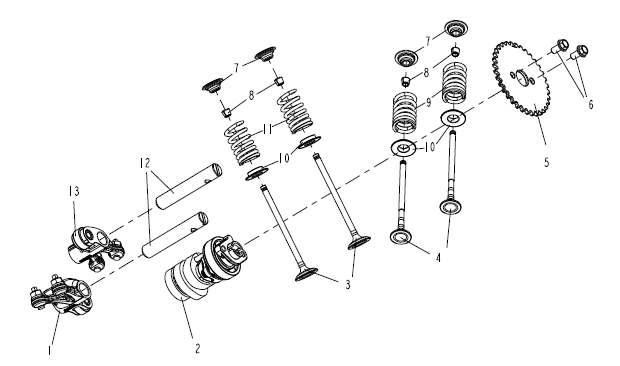

    E03 VALVE MECHANISM SUB-ASSY E03 VALVE MECHANISM SUB-ASSY

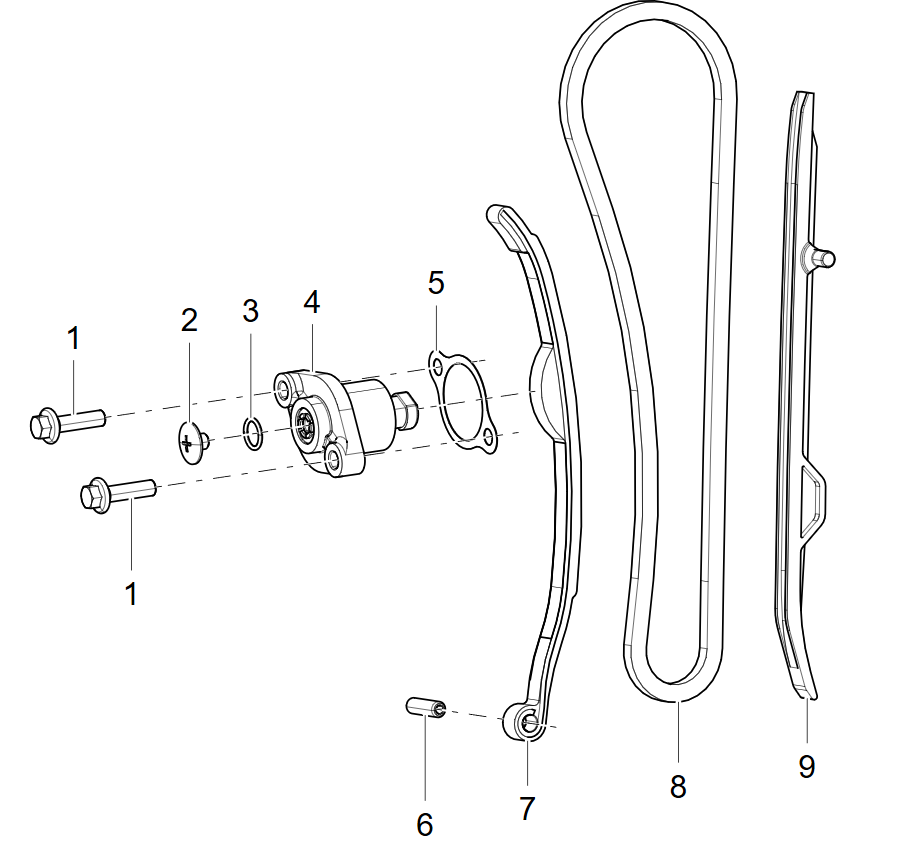

    E04 STRAINER UNIT ASSY E04 STRAINER UNIT ASSY

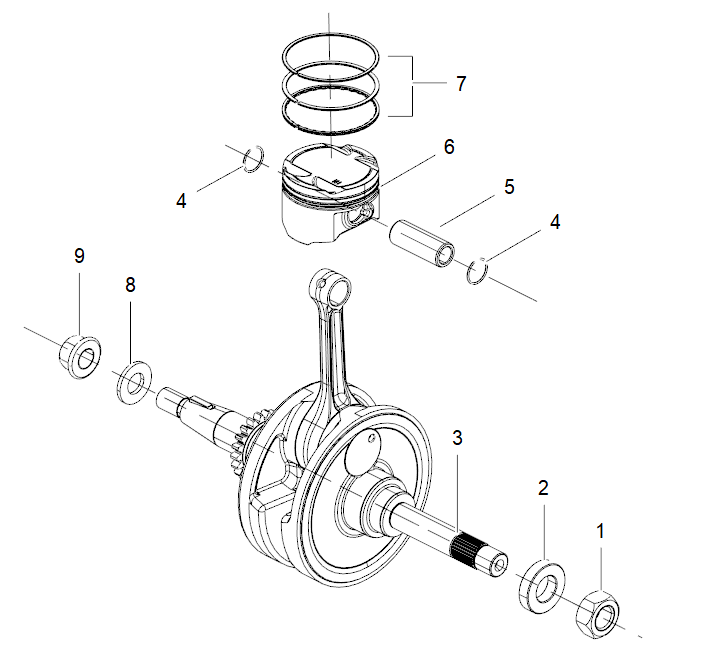

    E05 PISTON,CONNECTING ROD & CRANKSHAFT ASSY E05 PISTON,CONNECTING ROD & CRANKSHAFT ASSY

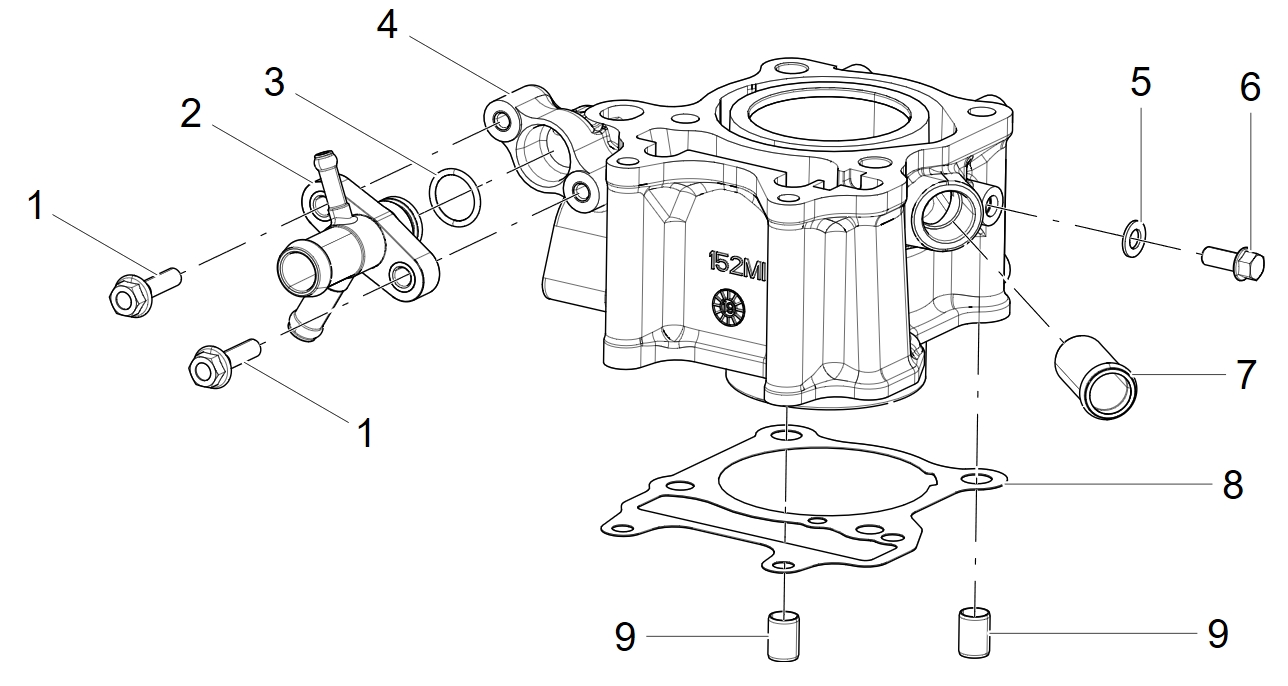

    E06 CYLINDER ASSY E06 CYLINDER ASSY

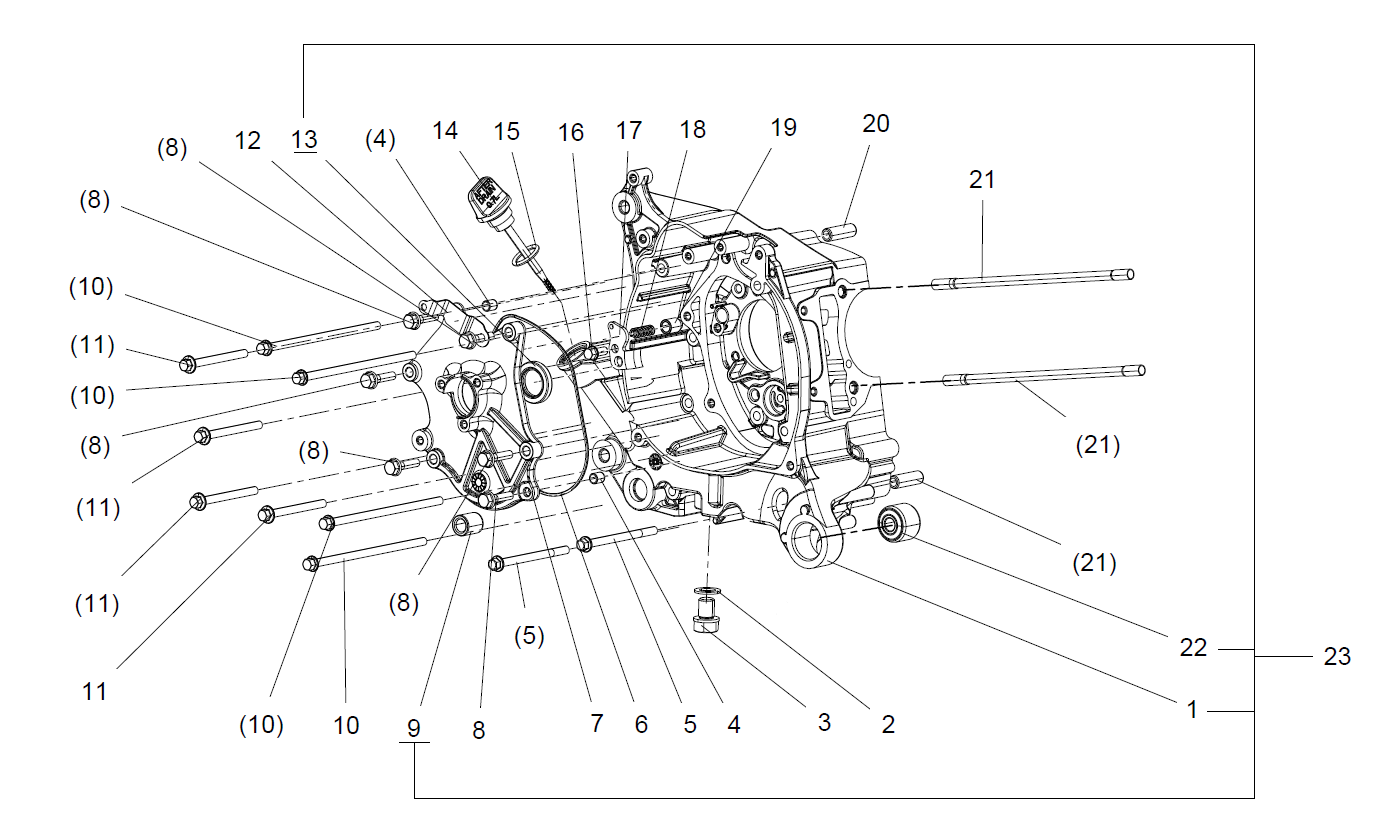

    E07 CRANKCASE ASSY E07 CRANKCASE ASSY

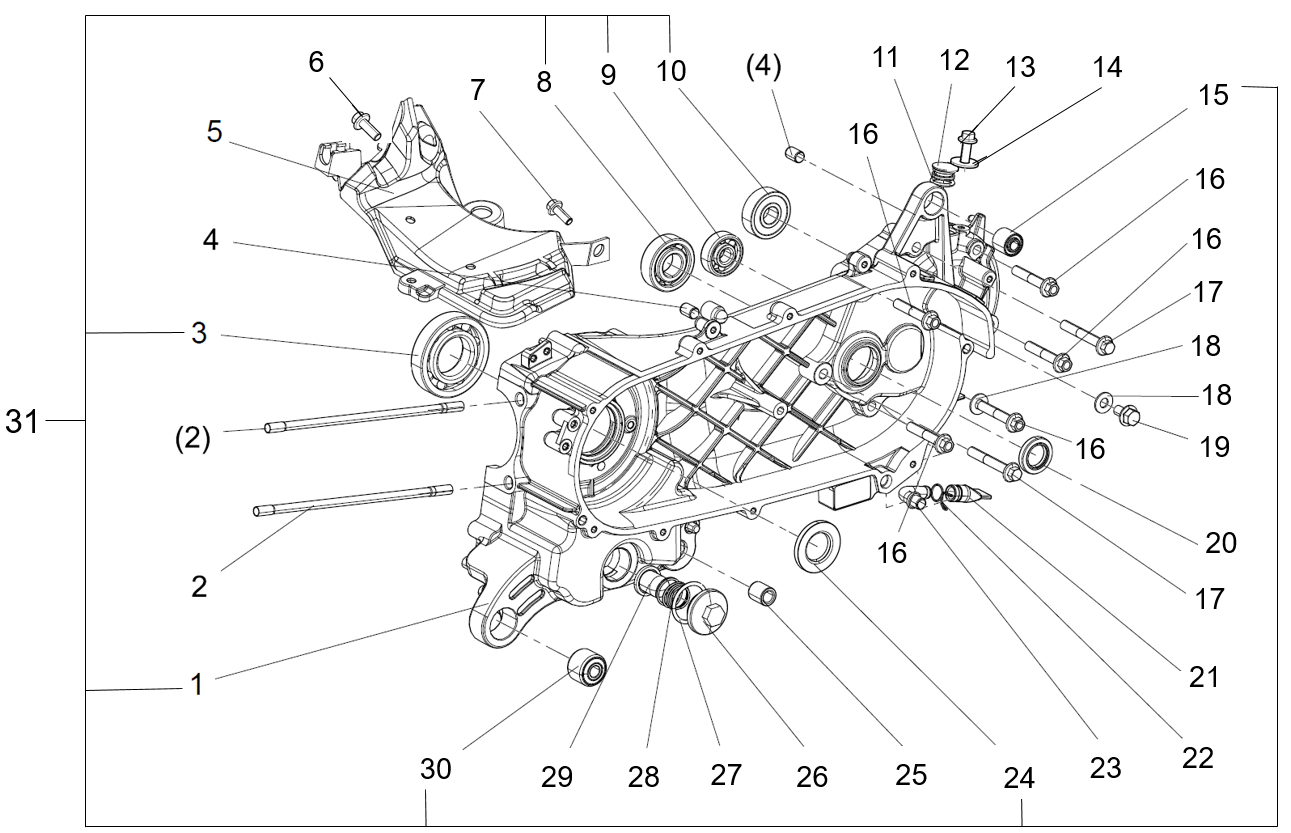

    E08 CRANKCASE ASSY E08 CRANKCASE ASSY

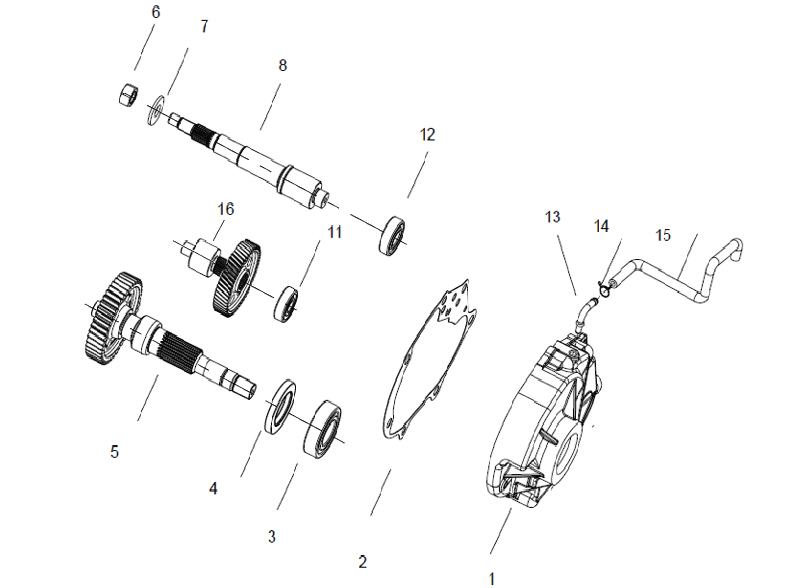

    E09 TRANSMISSION ASSY E09 TRANSMISSION ASSY

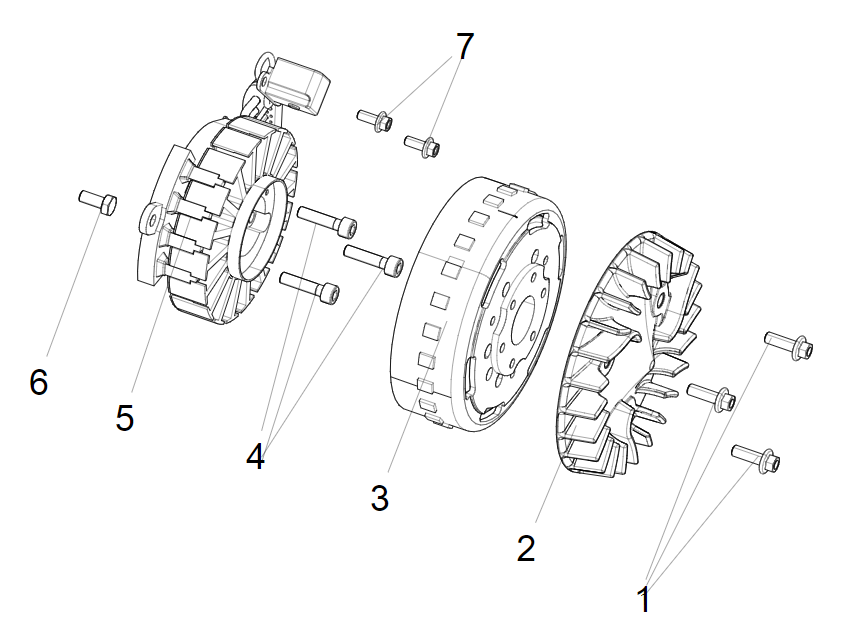

    E10 ELECTRICAL SYSTEM E10 ELECTRICAL SYSTEM

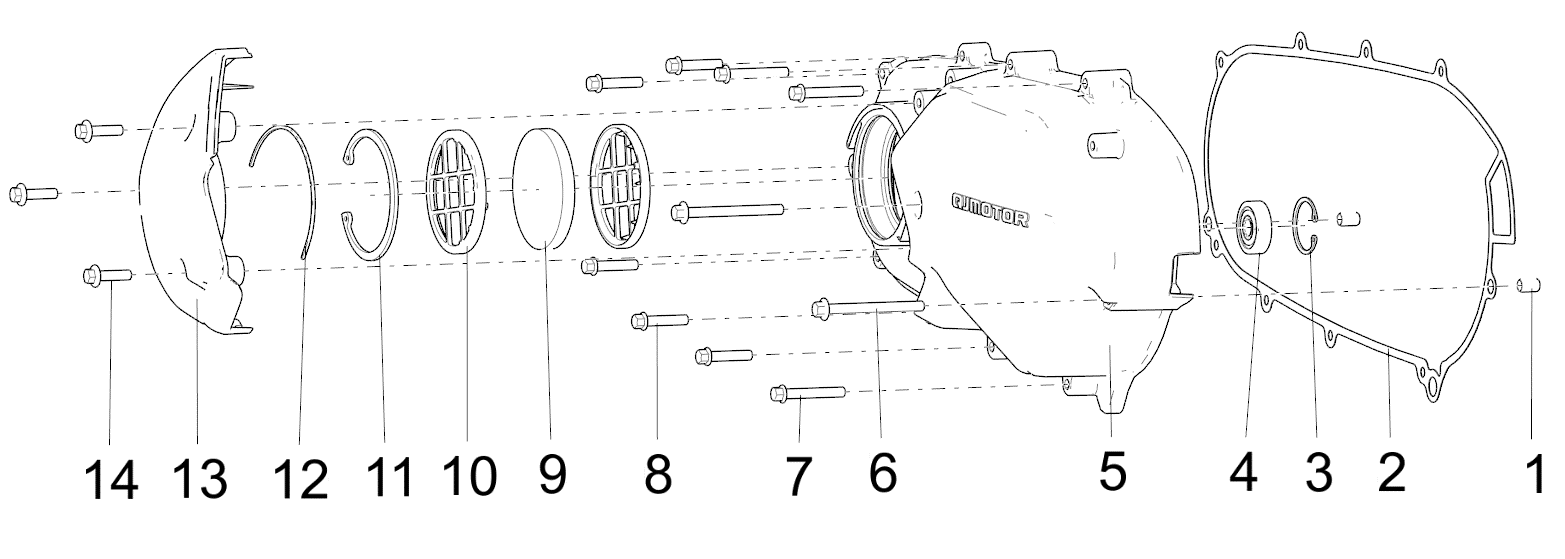

    E11 LEFT COVER ASSY E11 LEFT COVER ASSY

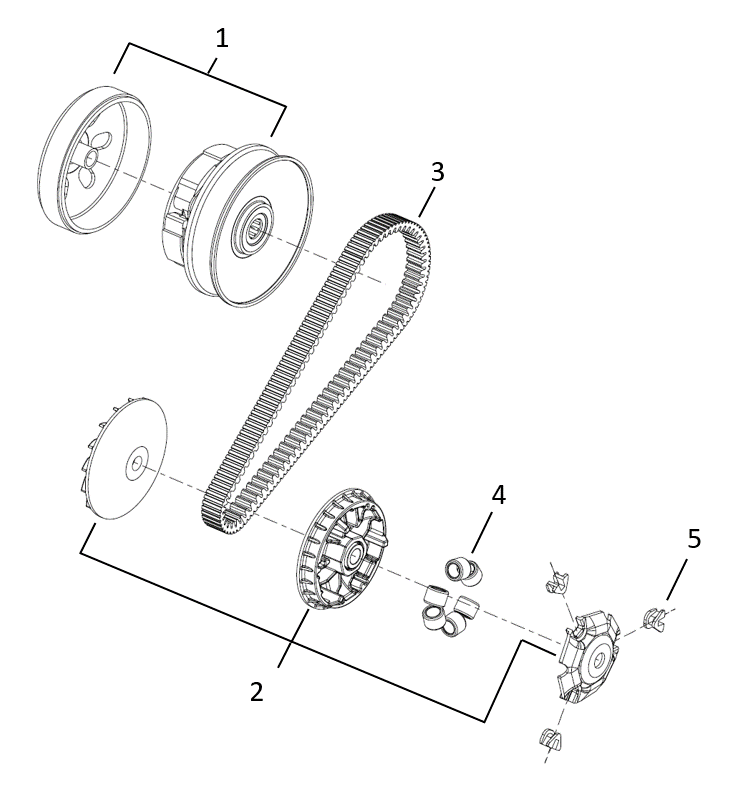

    E12 CLUTCH SYSTEM E12 CLUTCH SYSTEM

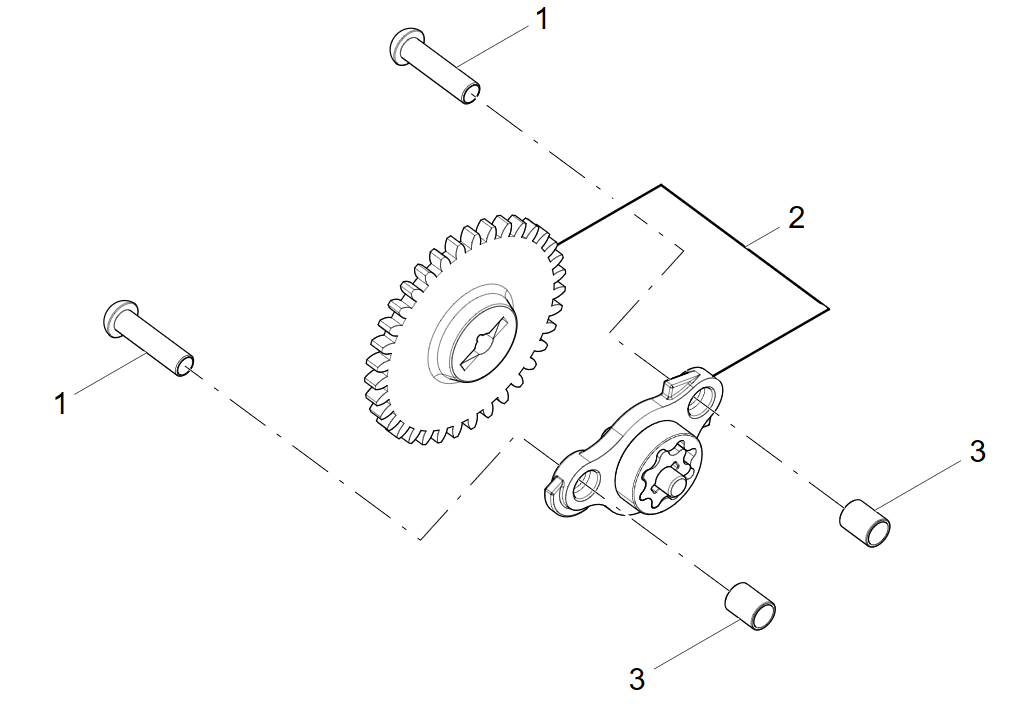

    E13 LUBRICATE SYSTEM E13 LUBRICATE SYSTEM

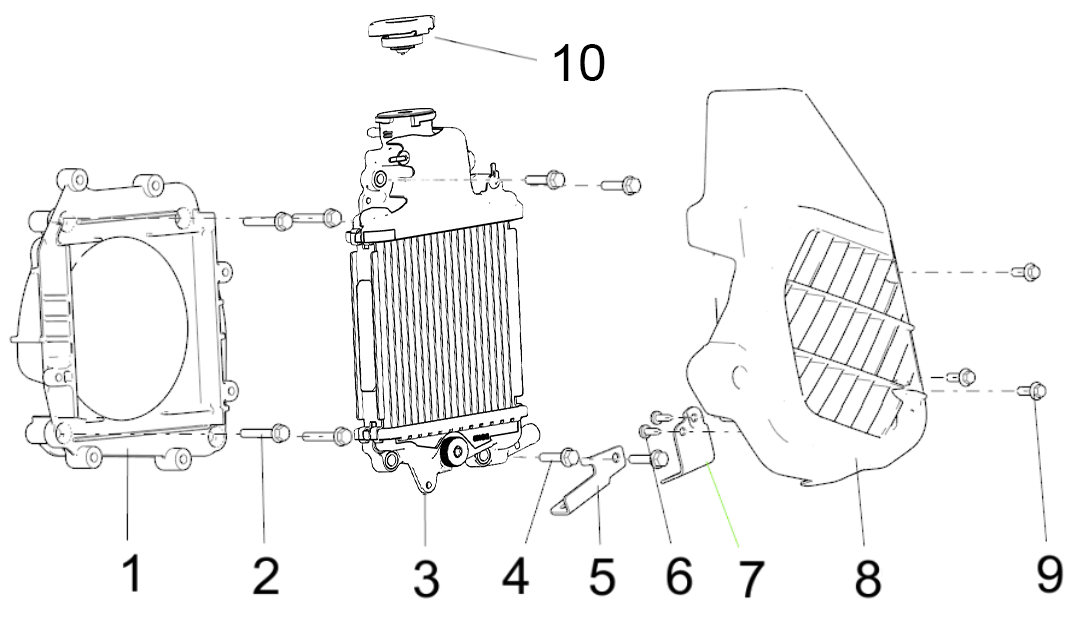

    E14 RADIATOR SUB-ASSY E14 RADIATOR SUB-ASSY

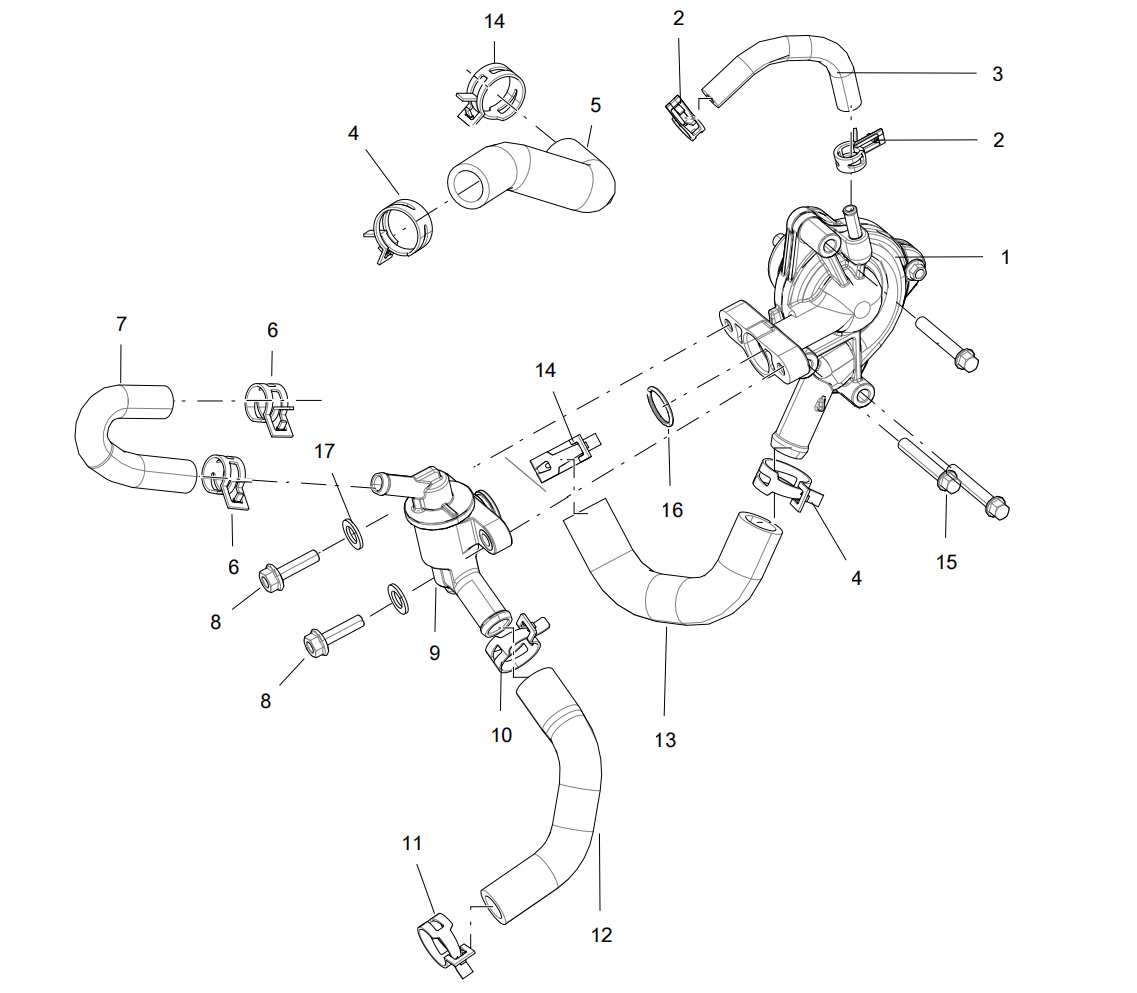

    E15 WATER PUMP SUB-ASSY E15 WATER PUMP SUB-ASSY

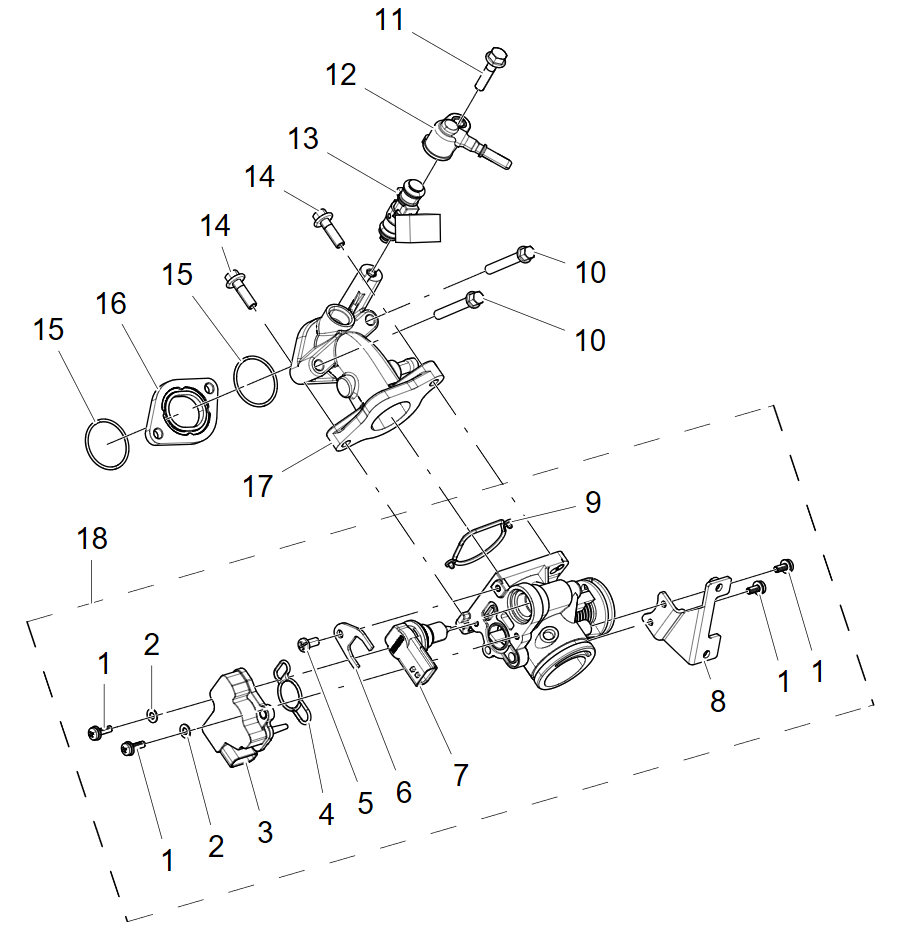

    E16 THROTTLE VALVE SUB-ASSEMBLY E16 THROTTLE VALVE SUB-ASSEMBLY

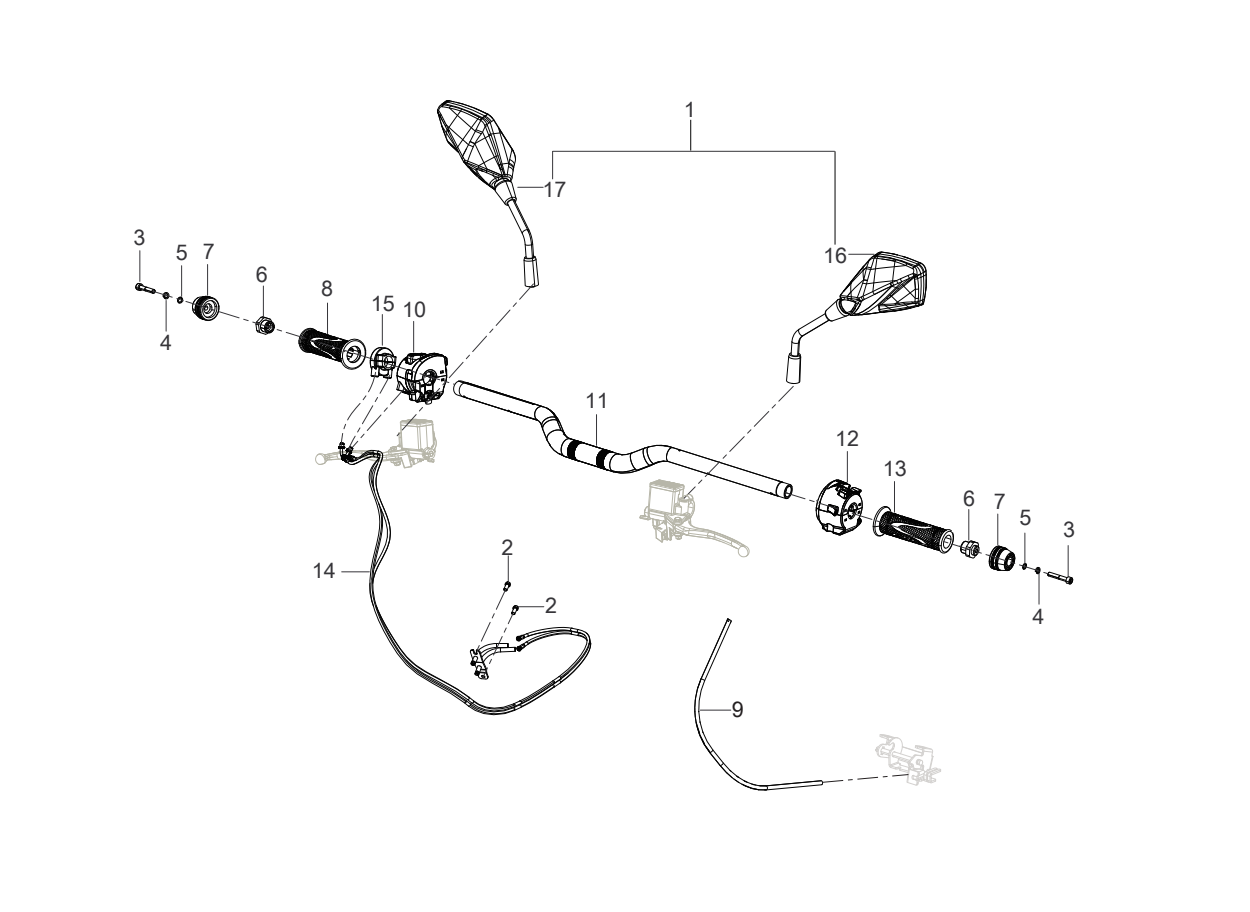

    F01 CONTROL ASSY. F01 CONTROL ASSY.

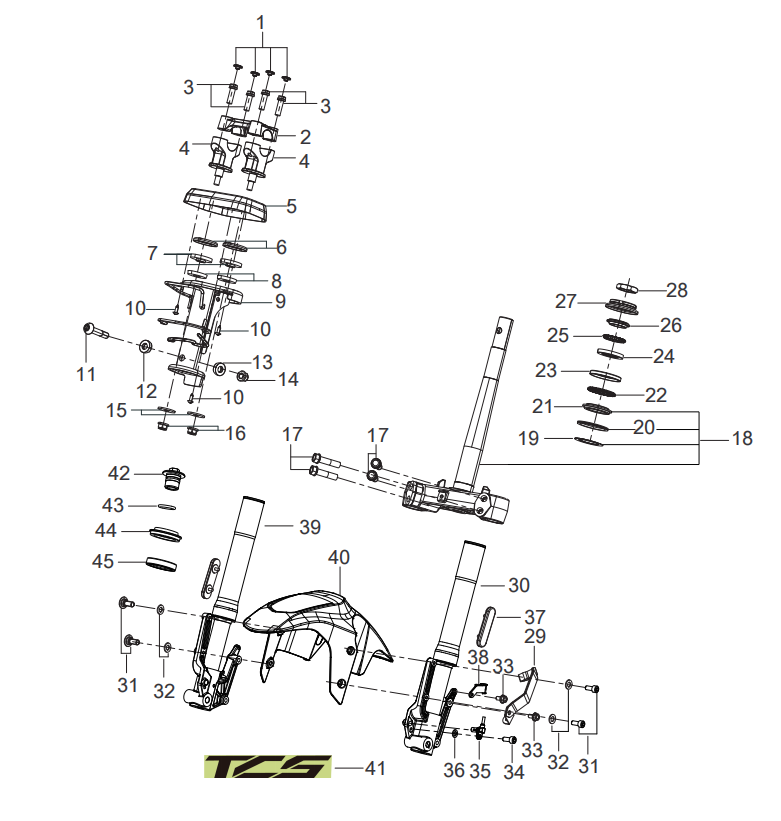

    F02A FORK ASSY. F02A FORK ASSY.

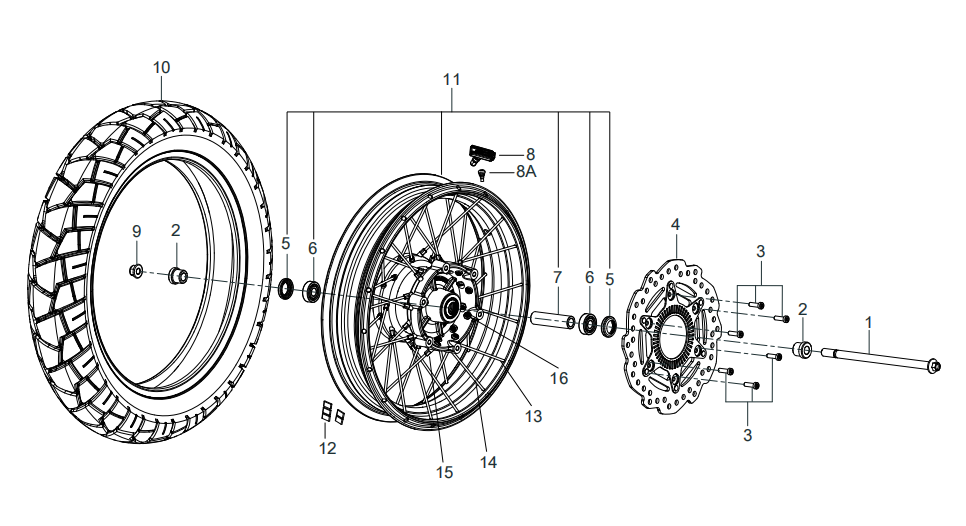

    F03A FRONT WHEEL ASSY. F03A FRONT WHEEL ASSY.

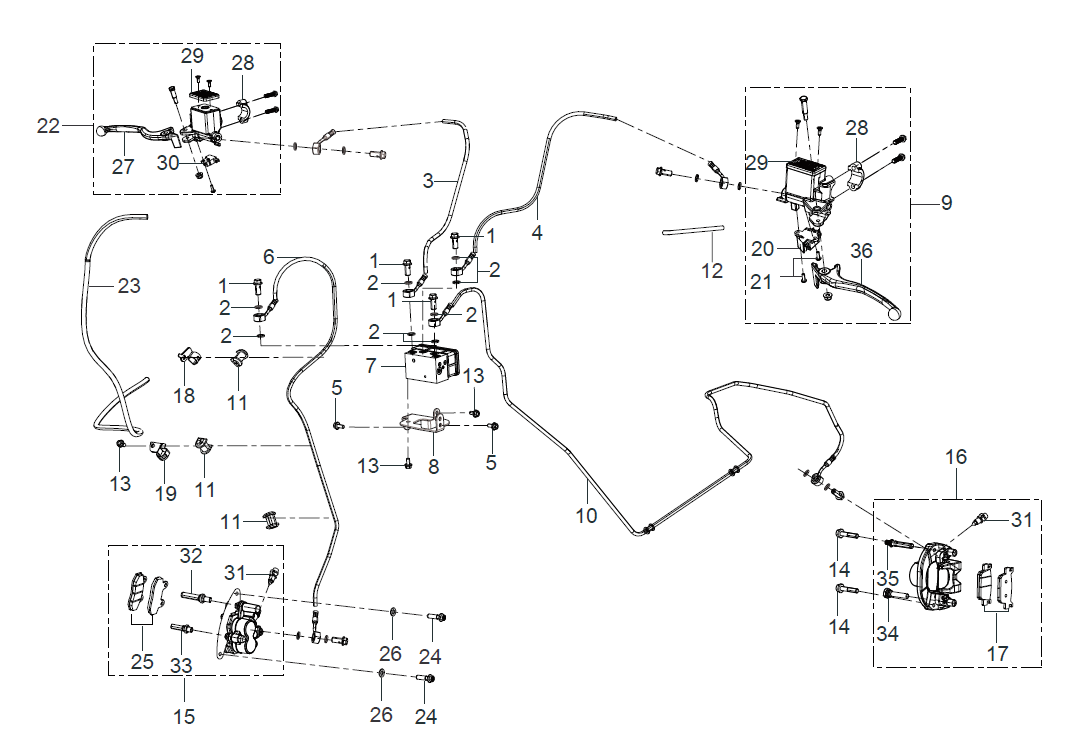

    F04 FRONT DISK BRAKE ASSY. F04 FRONT DISK BRAKE ASSY.

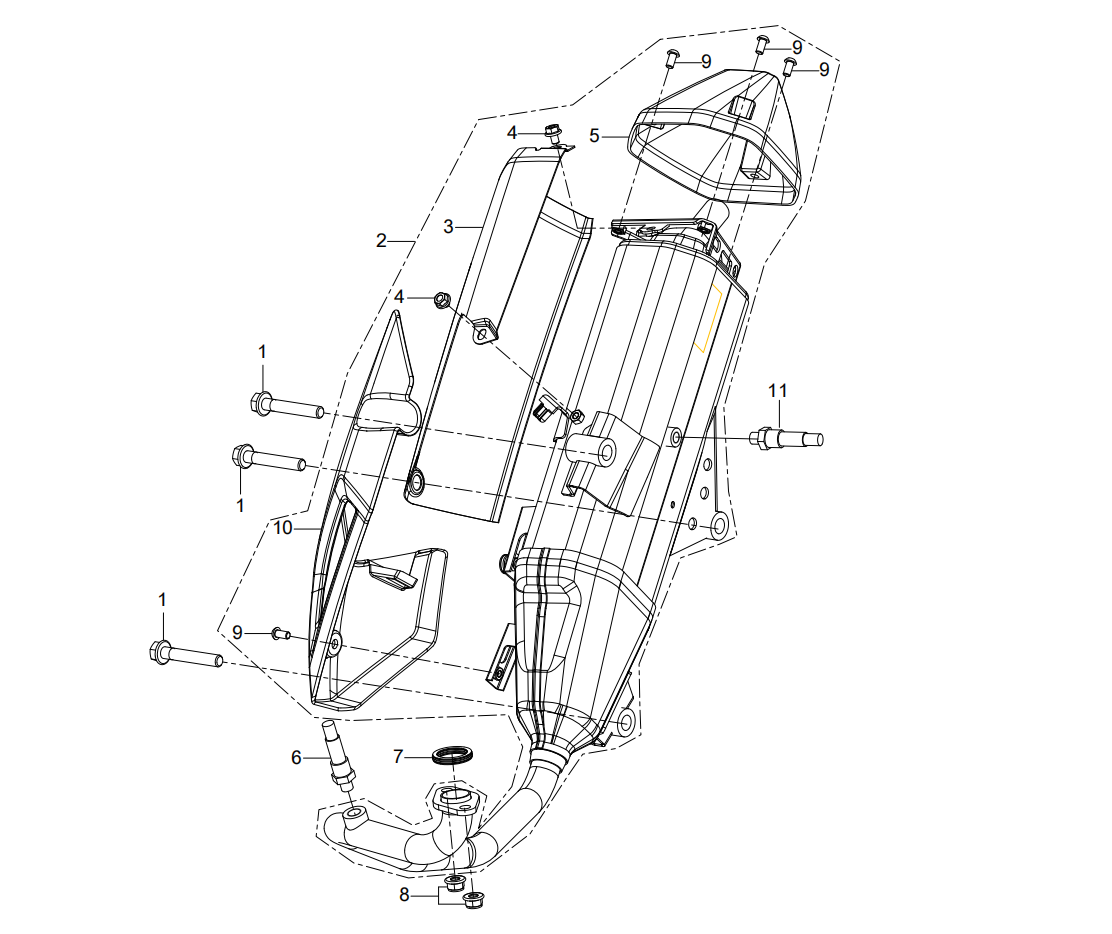

    F05 MUFFLER ASSY. F05 MUFFLER ASSY.

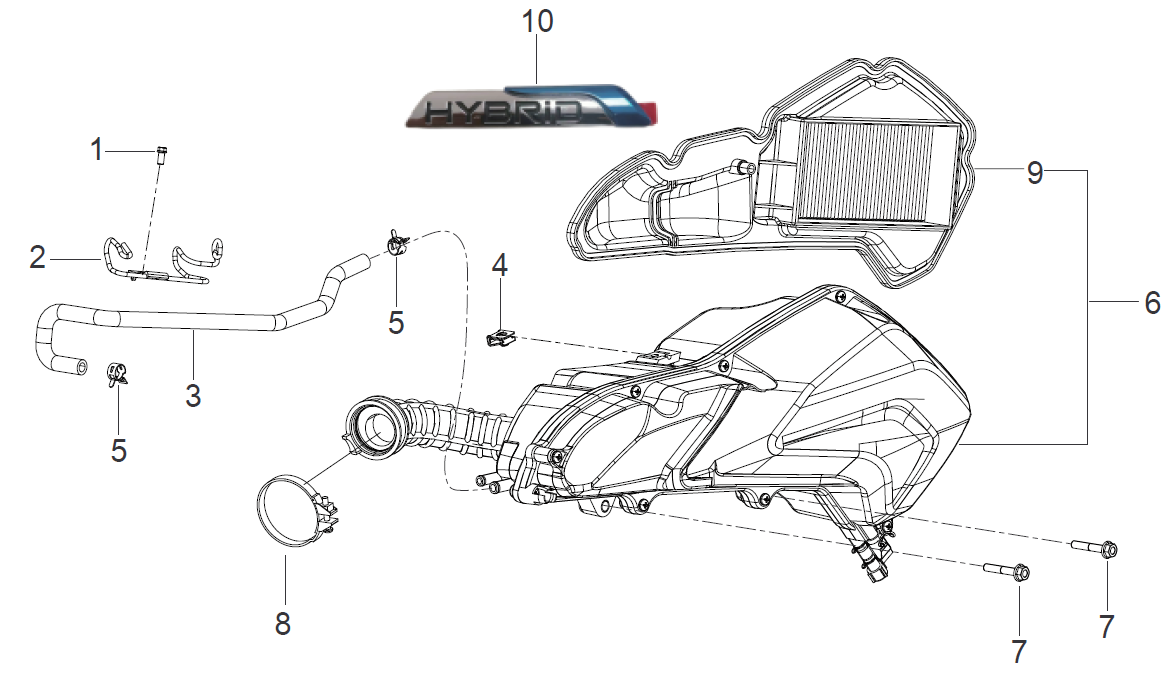

    F06 AIR CLEANER ASSY. F06 AIR CLEANER ASSY.

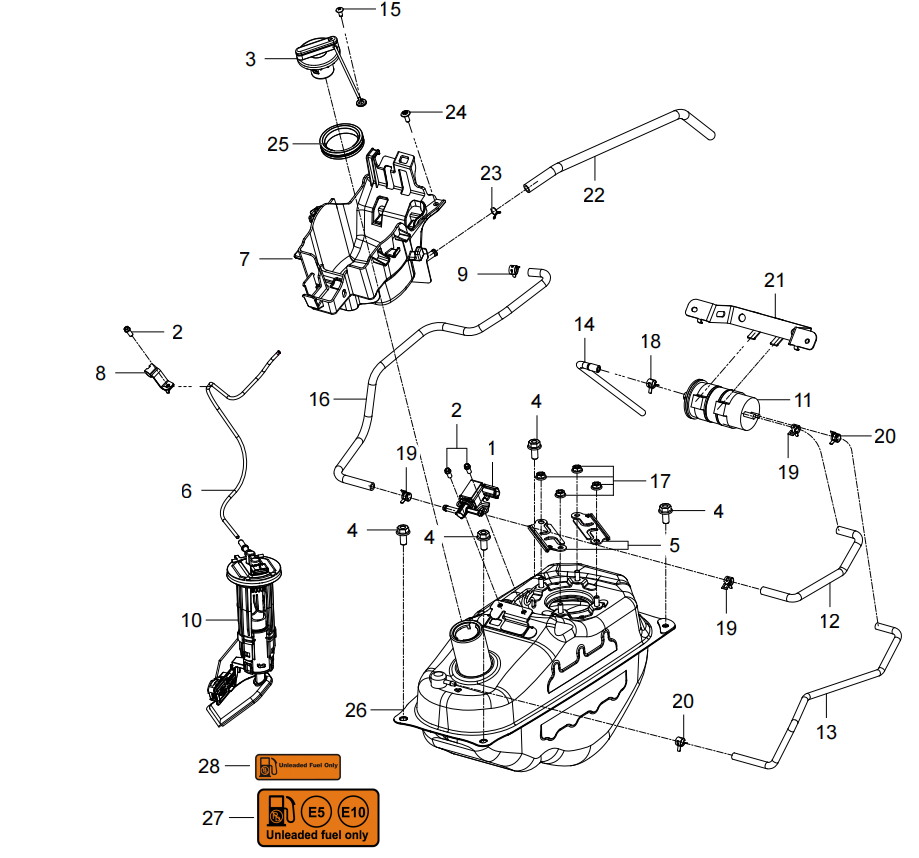

    F07 FUEL TANK ASSY. F07 FUEL TANK ASSY.

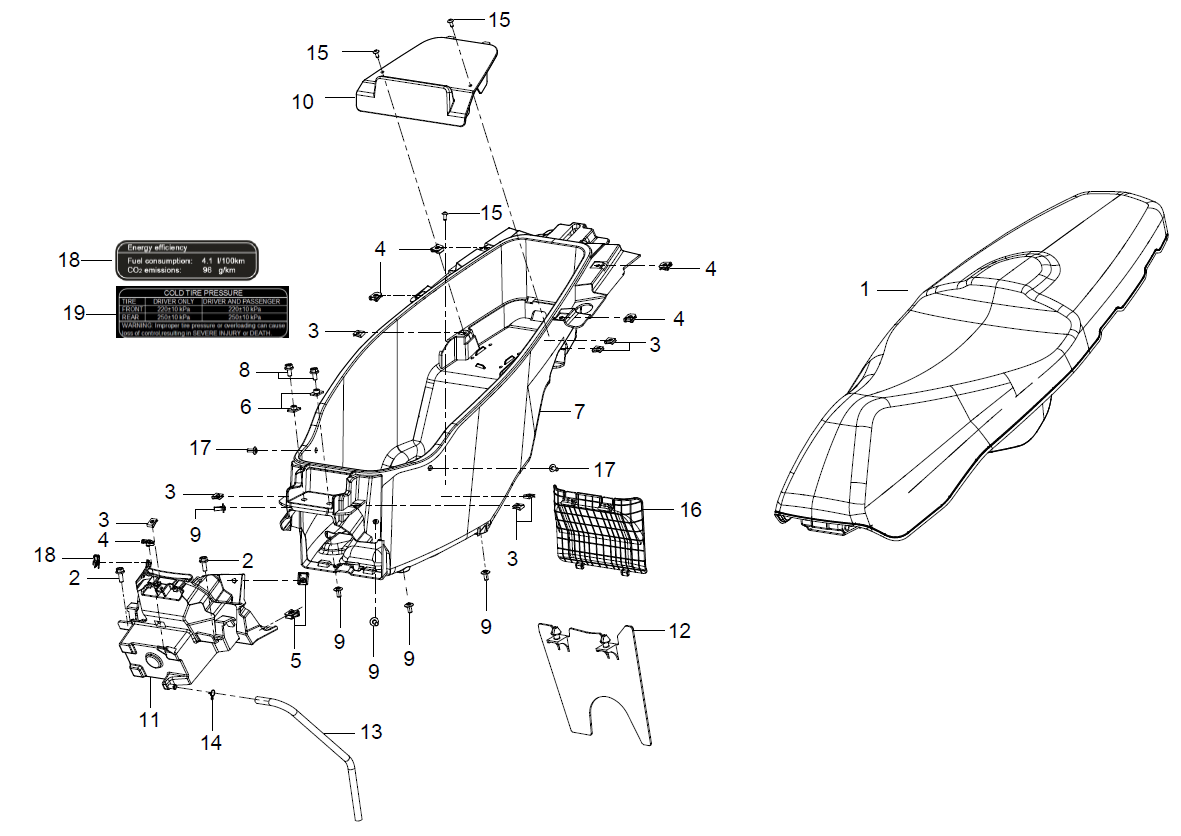

    F08 SEAT ASSY. F08 SEAT ASSY.

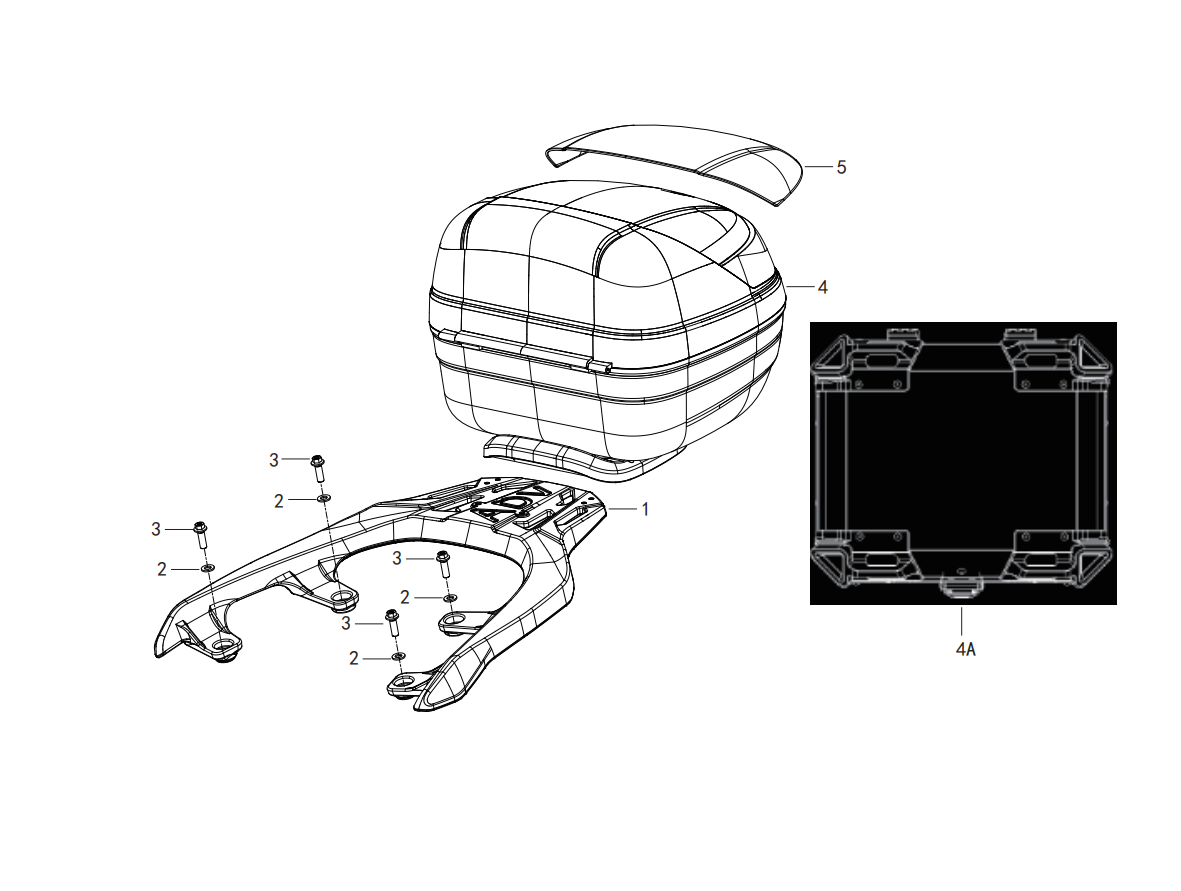

    F09 REAR ARMREST ASSY. F09 REAR ARMREST ASSY.

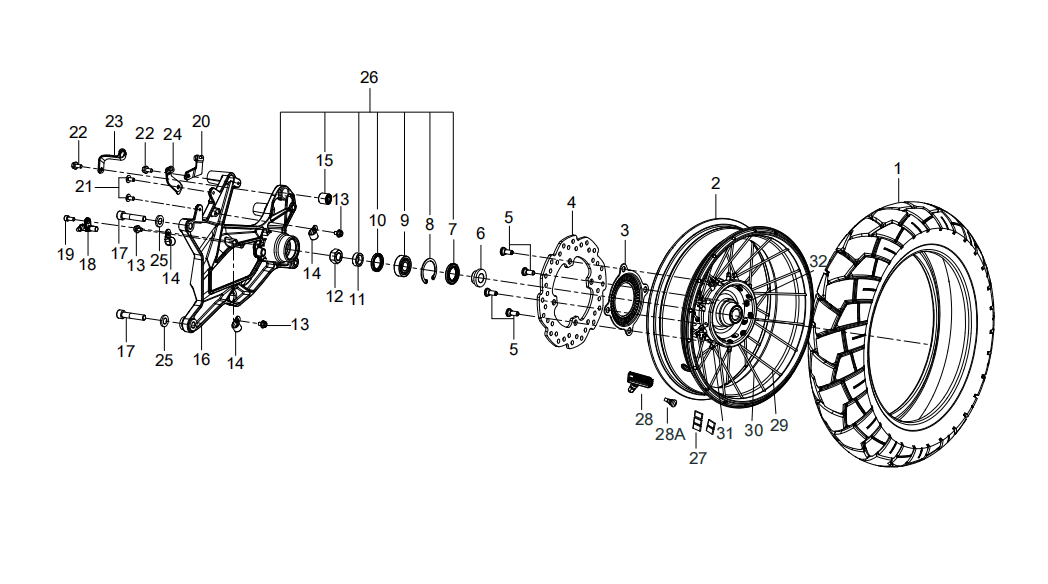

    F10 REAR WHEEL ASSY. F10 REAR WHEEL ASSY.

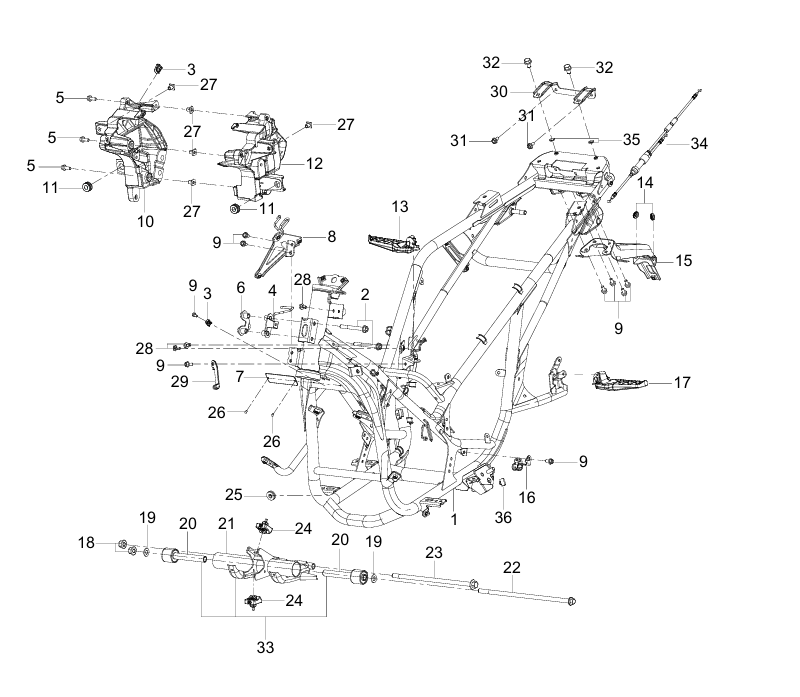

    F11 I FRAME BODY ASSY. F11 I FRAME BODY ASSY.

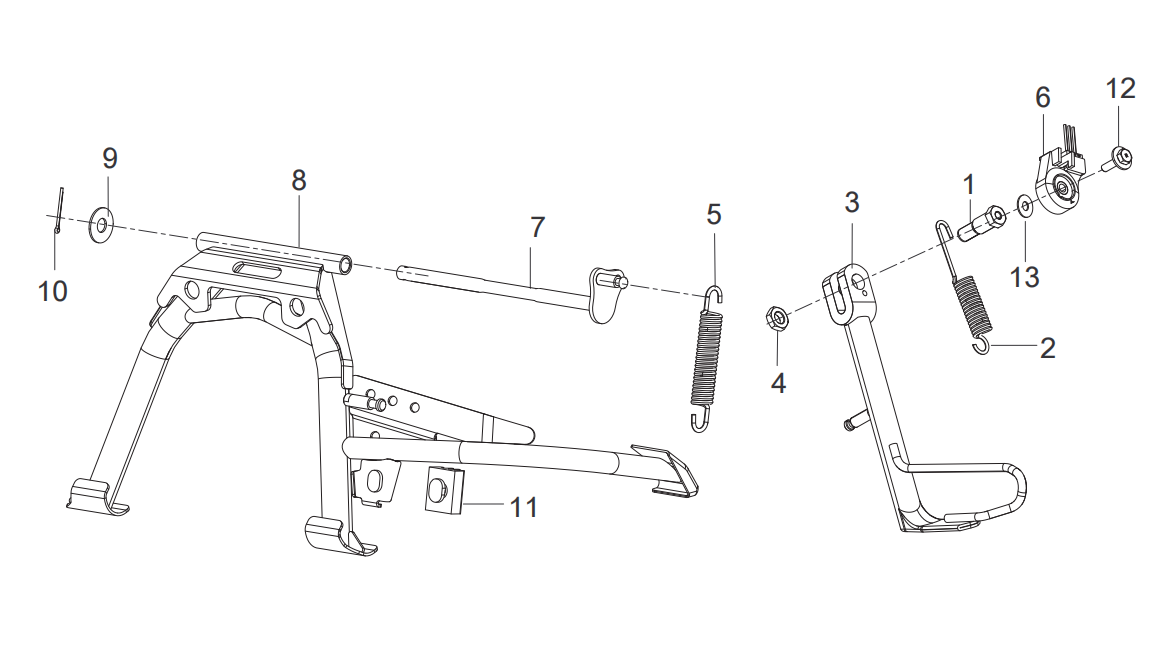

    F12 / MAIN STAND ASSY. F12 / MAIN STAND ASSY.

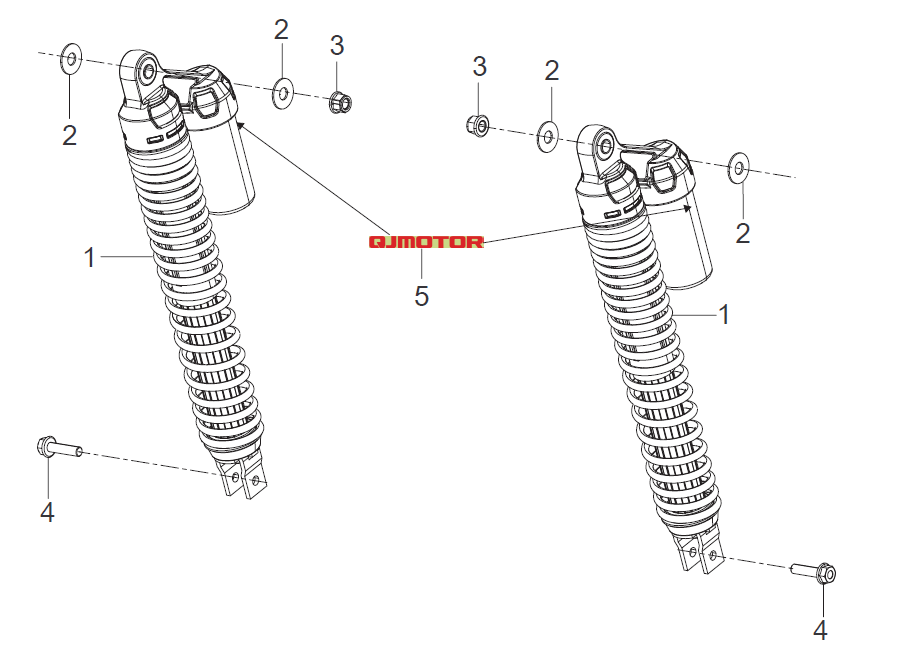

    F13 REAR ABSORBER ASSY. F13 REAR ABSORBER ASSY.

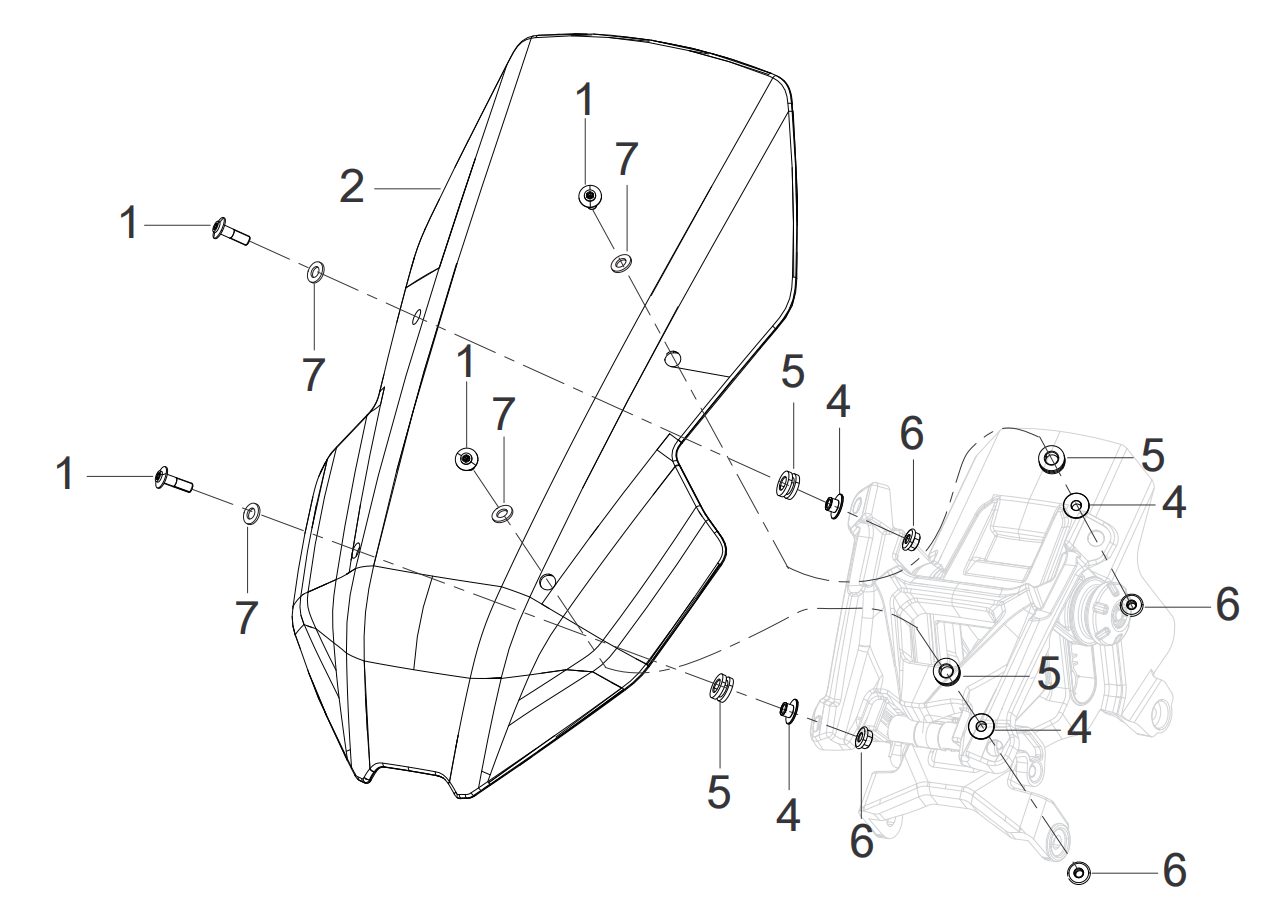

    F14 1 WINDSHIELD ASSY. F14 1 WINDSHIELD ASSY.

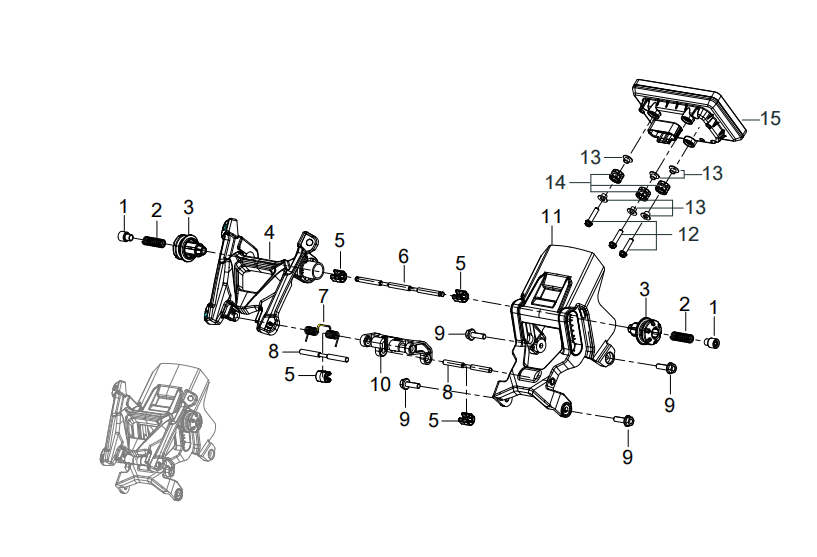

    F15 2 WINDSHIELD ASSY. F15 2 WINDSHIELD ASSY.

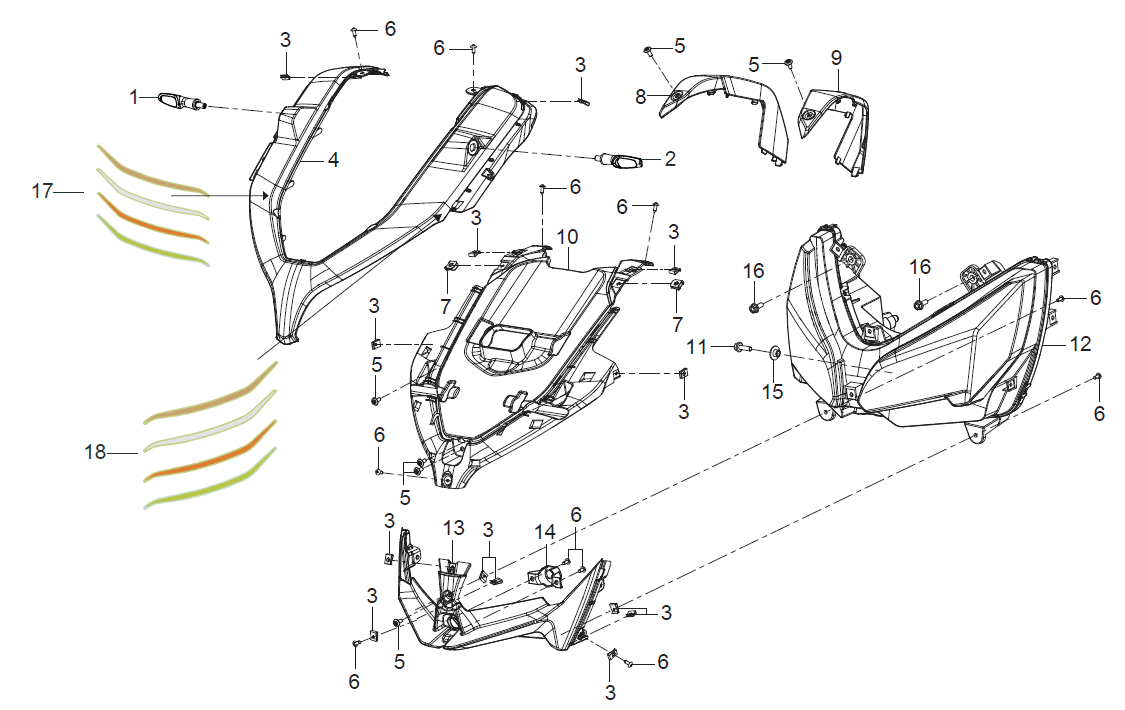

    F16 1 FRONT COVER ASSY. F16 1 FRONT COVER ASSY.

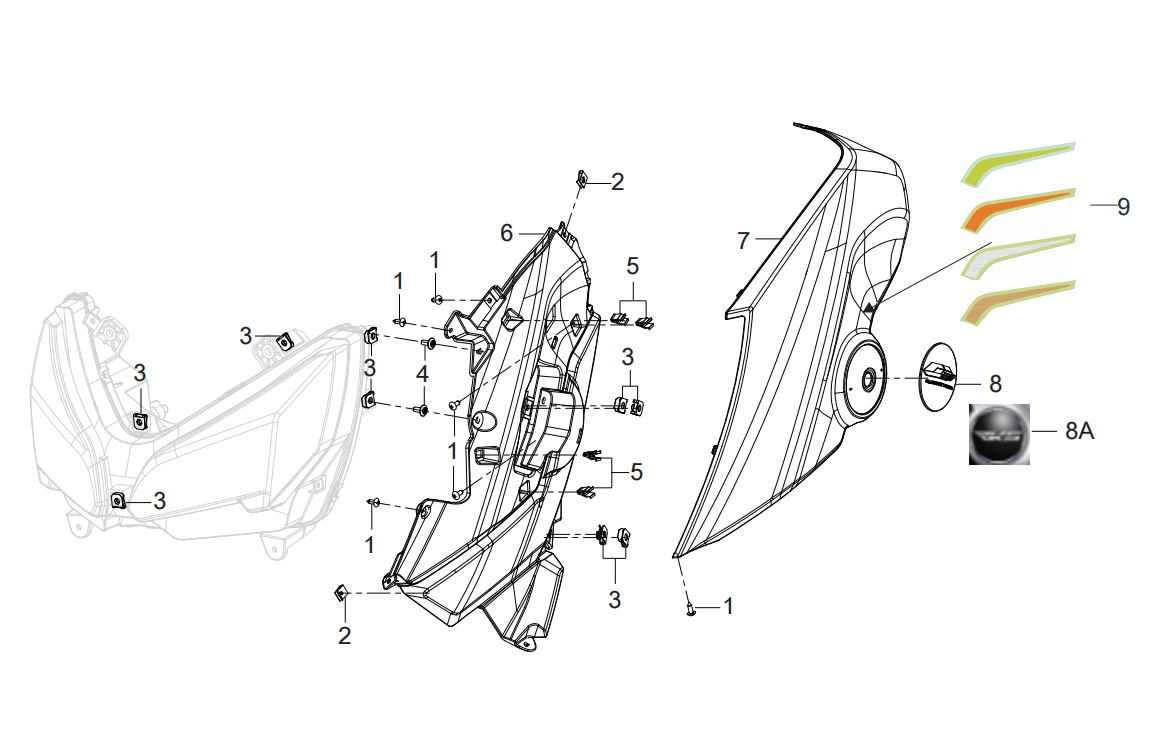

    F17 2 FRONT COVER ASSY. F17 2 FRONT COVER ASSY.

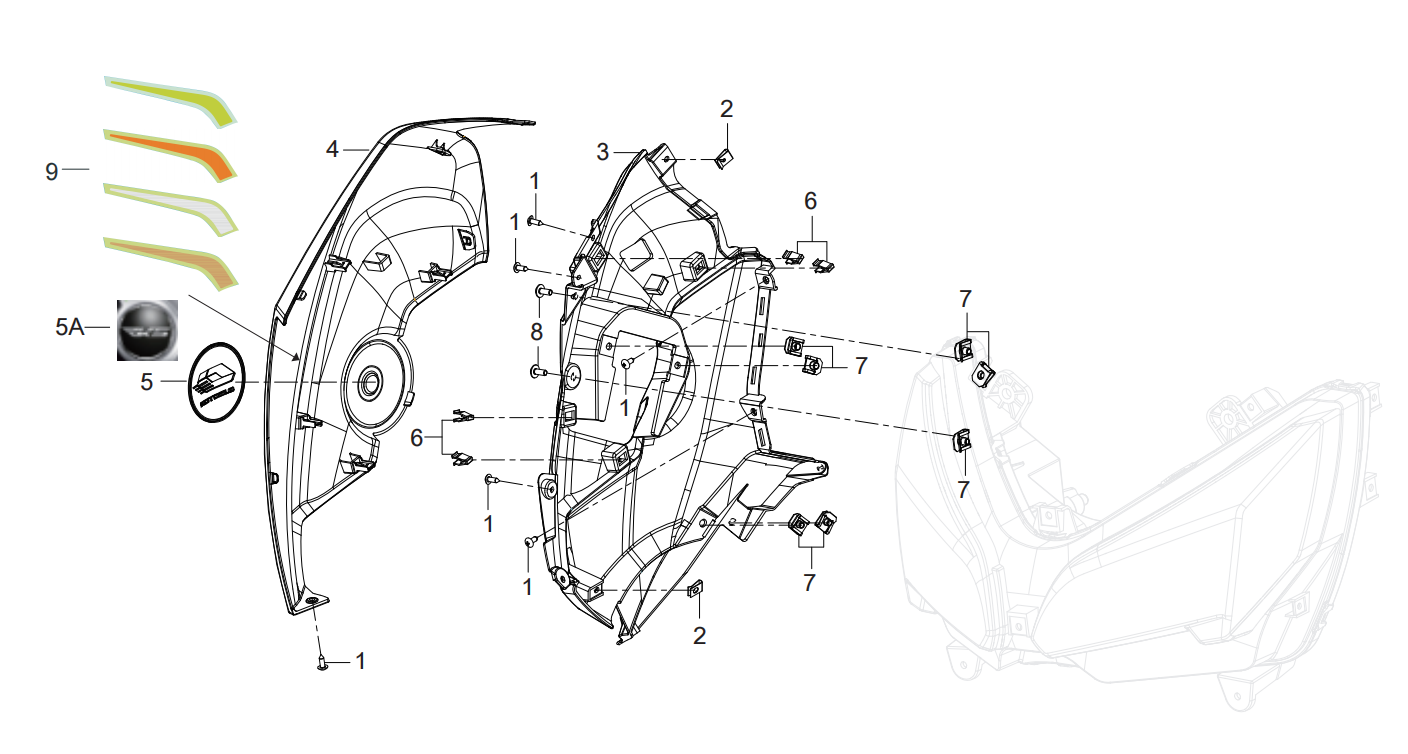

    F18 3 FRONT COVER ASSY. F18 3 FRONT COVER ASSY.

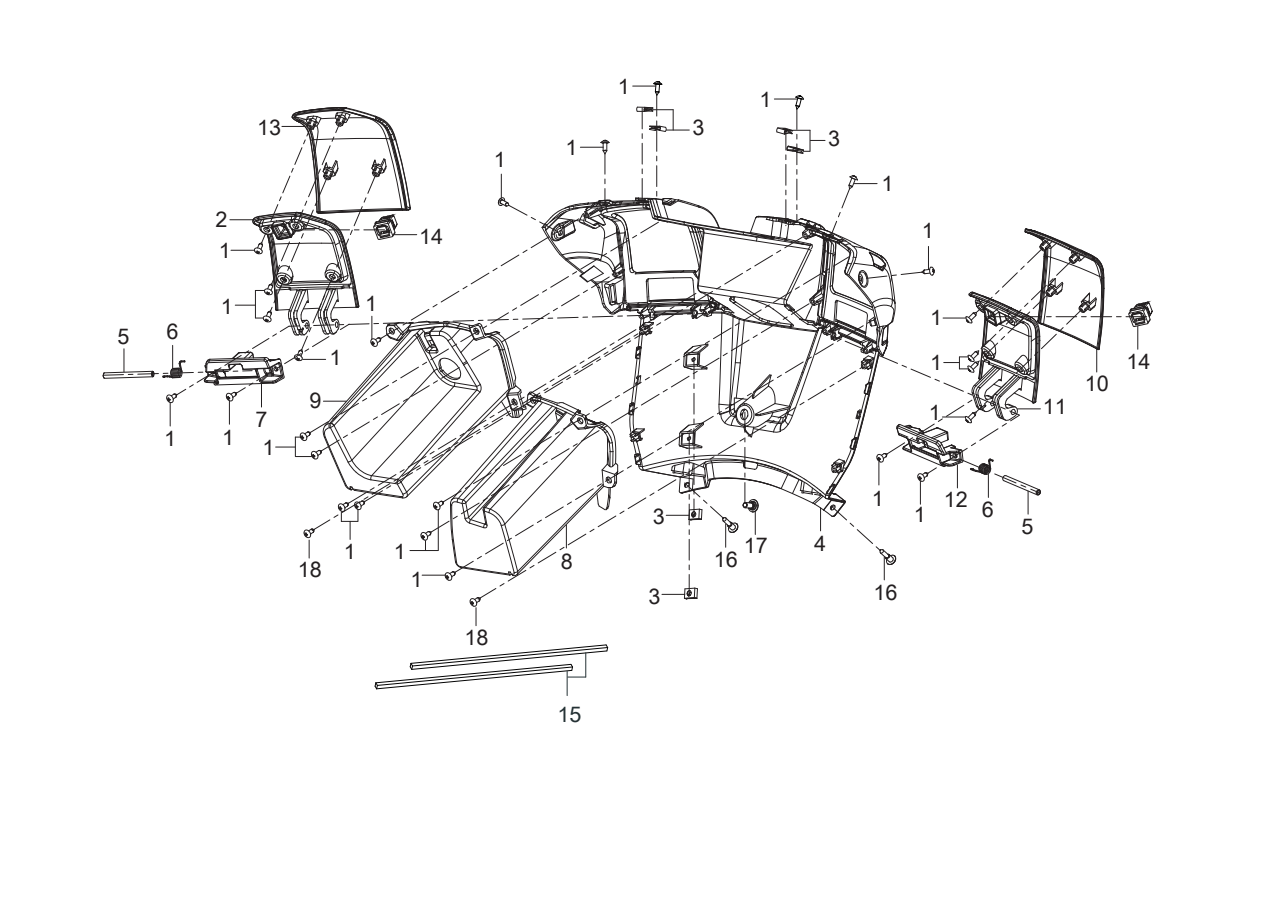

    F19 STORAGE BOX ASSY. F19 STORAGE BOX ASSY.

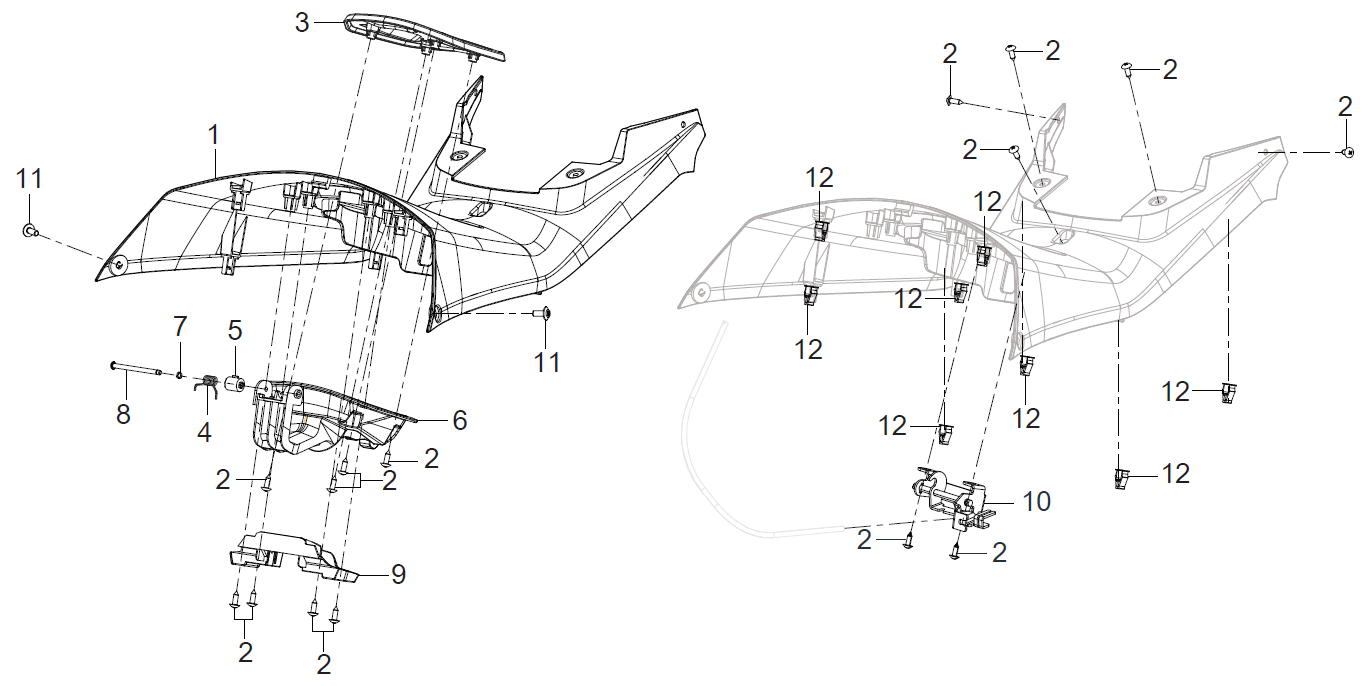

    F20 FOOT GUARD PLATE ASSY. F20 FOOT GUARD PLATE ASSY.

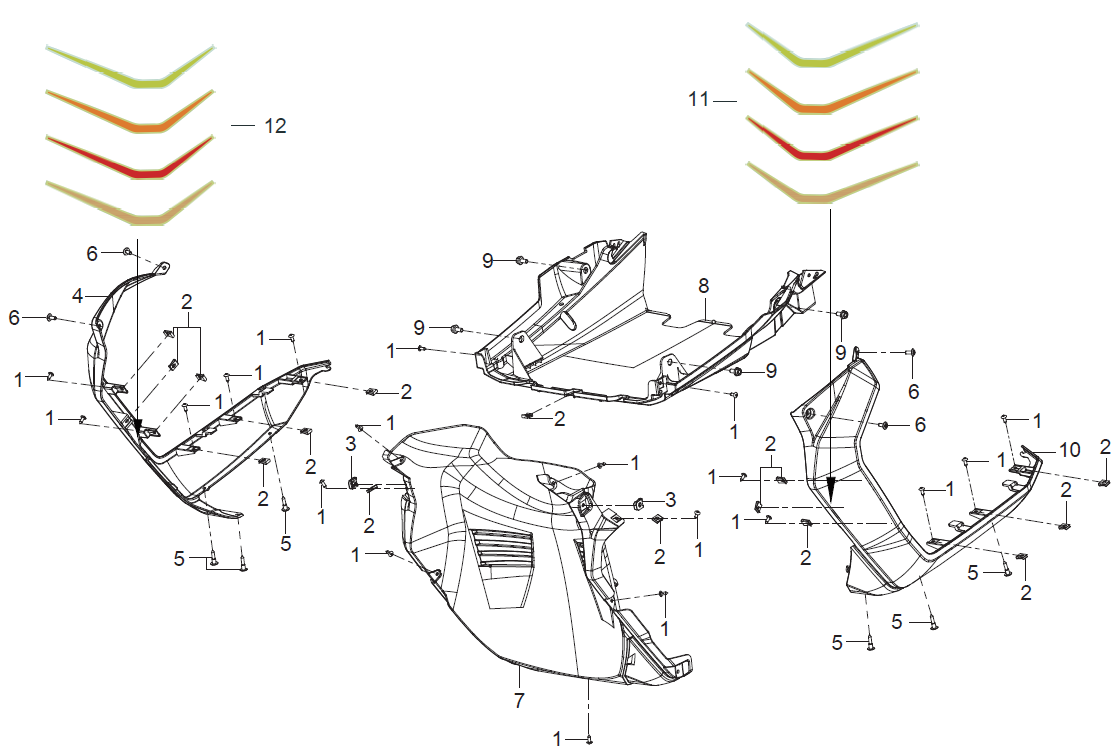

    F21 FOOT PEDAL ASSY. F21 FOOT PEDAL ASSY.

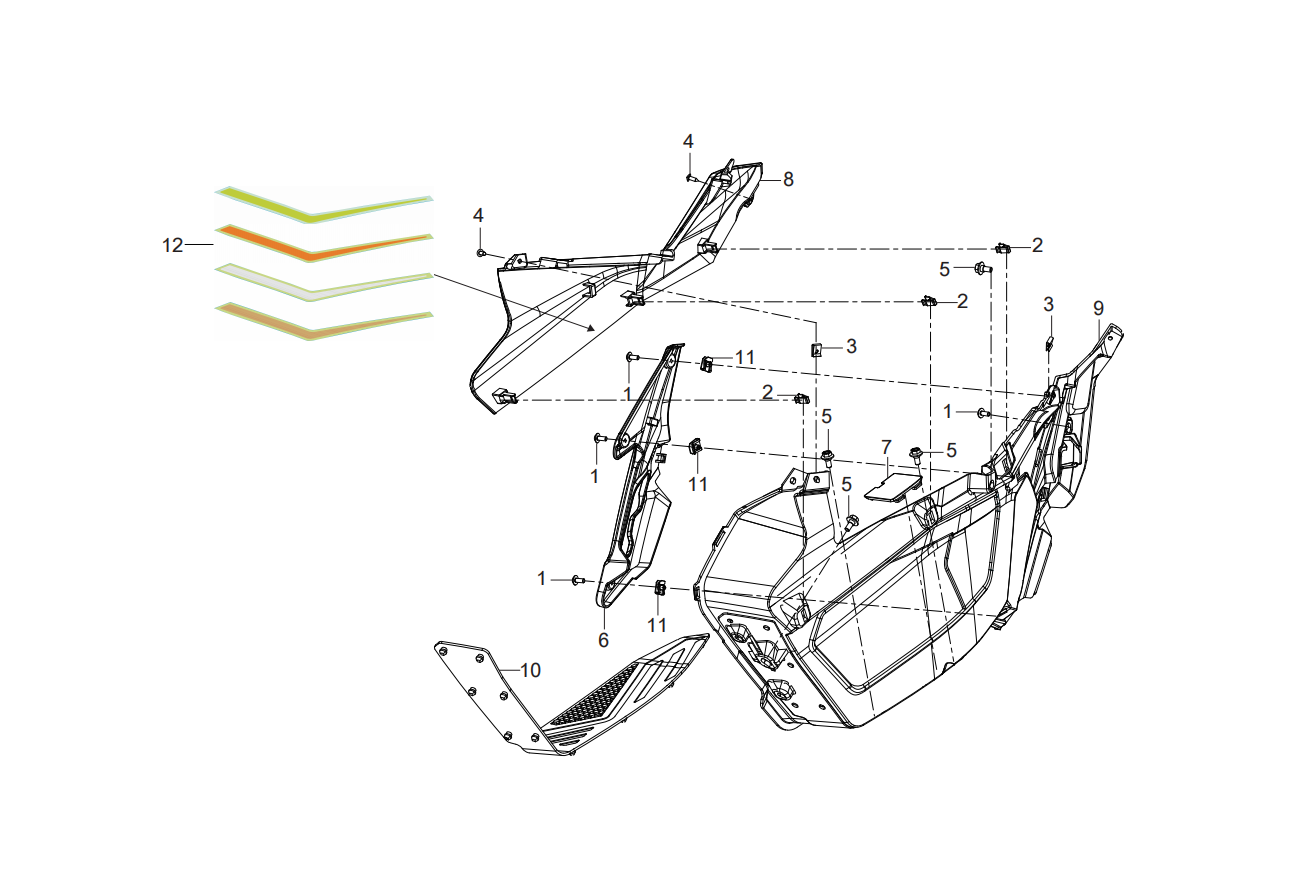

    F22 RIGHT GUARD PLATE ASSY. F22 RIGHT GUARD PLATE ASSY.

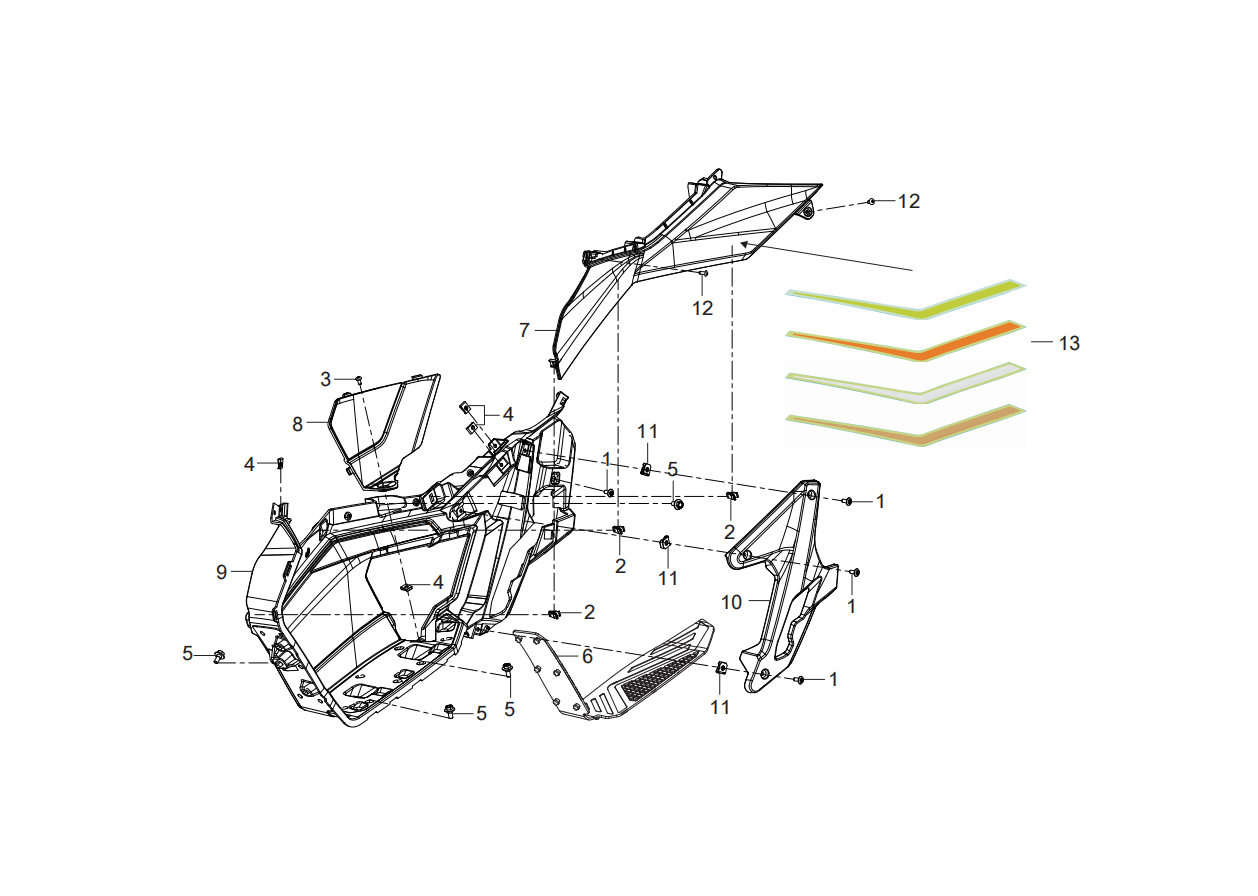

    F23 LEFT GUARD PLATE ASSY. F23 LEFT GUARD PLATE ASSY.

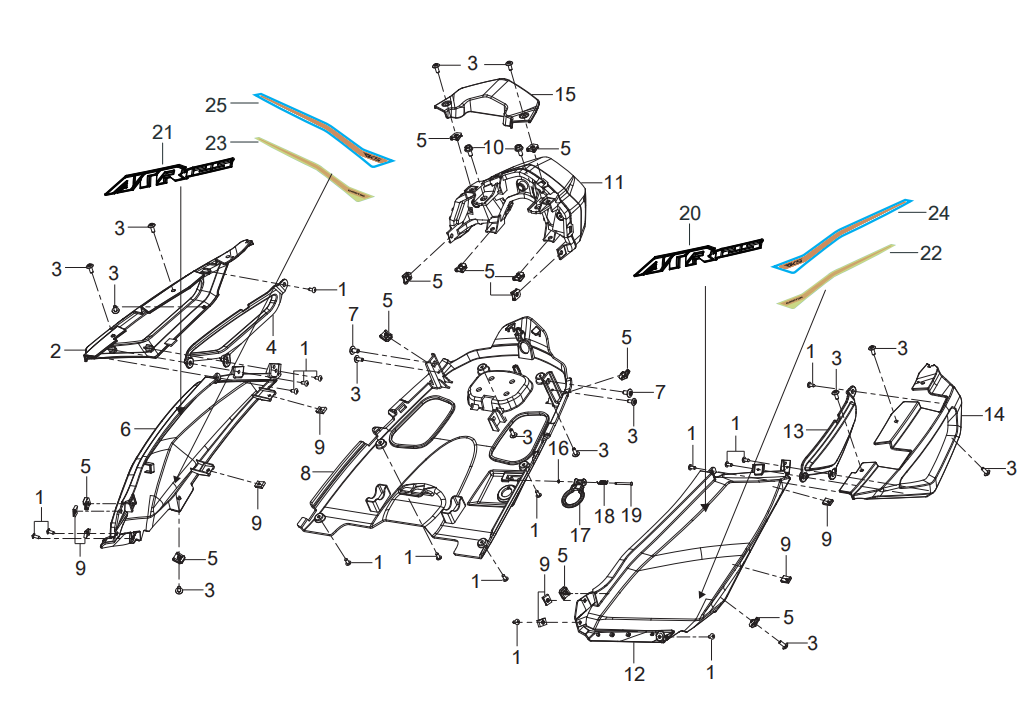

    F24 TAIL COVER ASSY. F24 TAIL COVER ASSY.

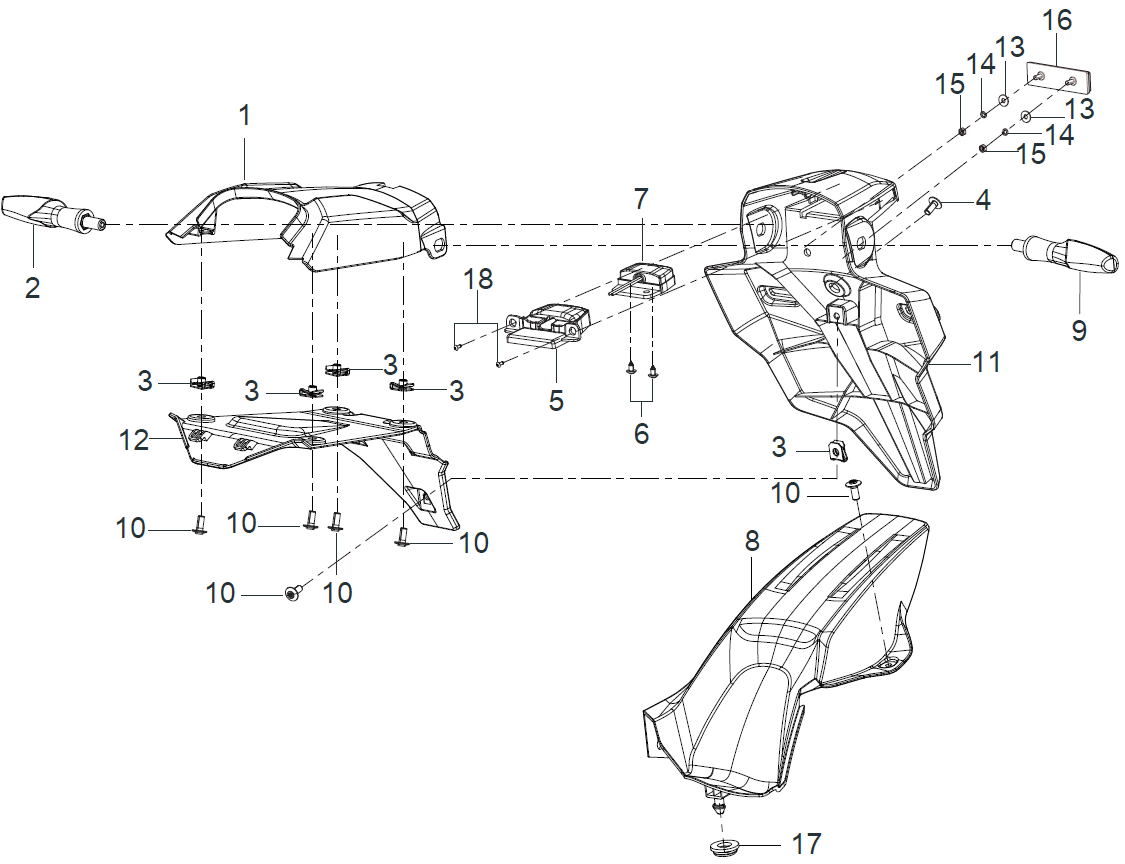

    F25 FENDER ASSY. F25 FENDER ASSY.

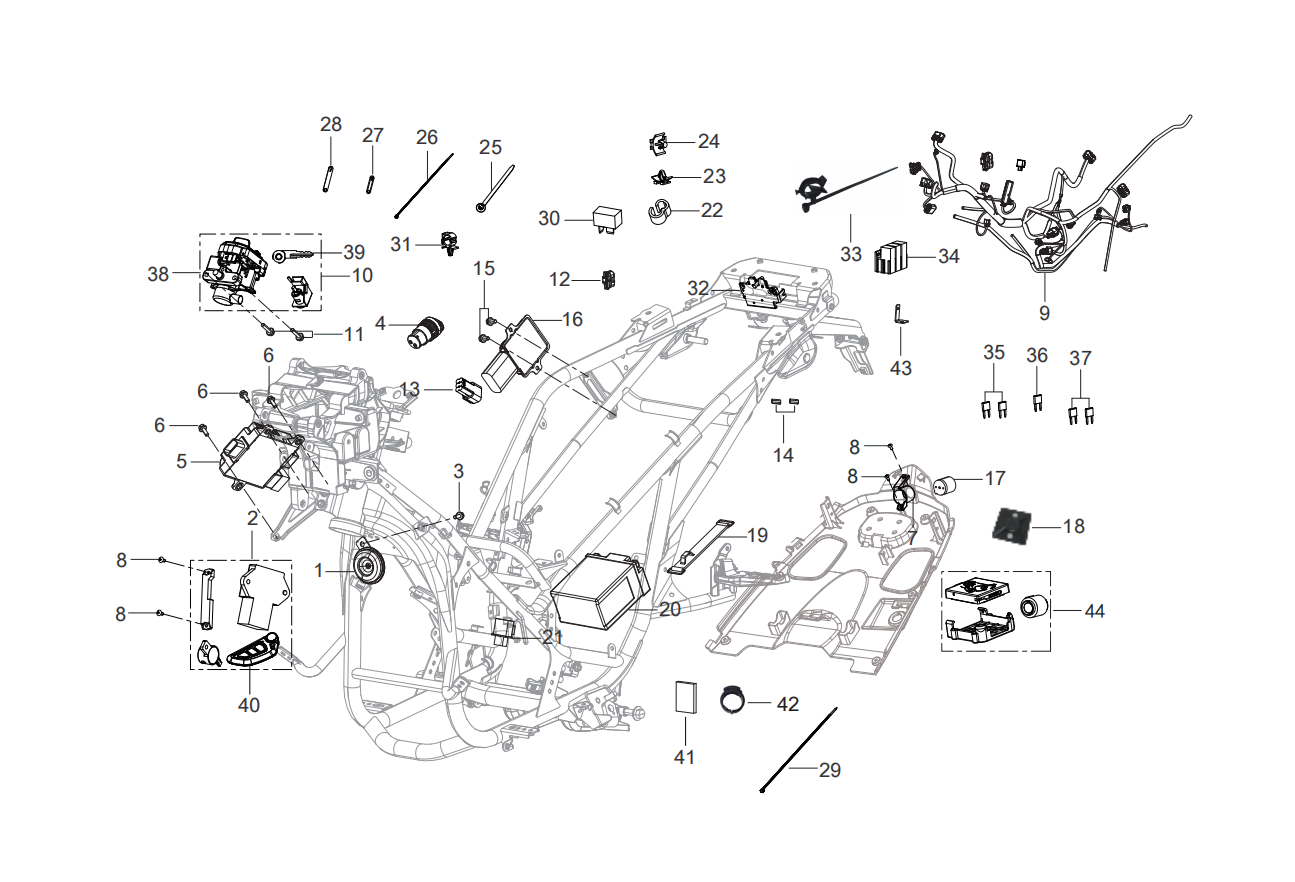

    F26 ELECTRICAL EQUIPMENT ASSY. F26 ELECTRICAL EQUIPMENT ASSY.

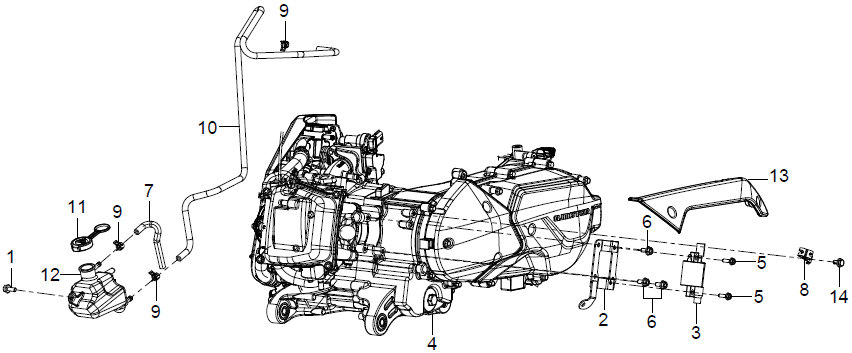

    F27 ENGINE ATTACHMENT ASSY. F27 ENGINE ATTACHMENT ASSY.

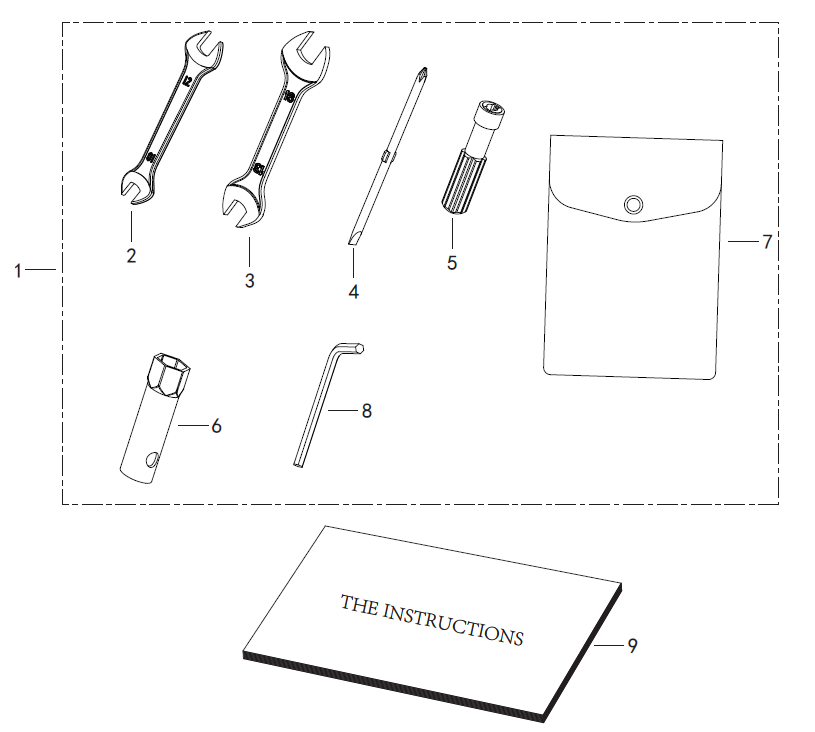

    F28 TOOL KIT ASSY. F28 TOOL KIT ASSY.
