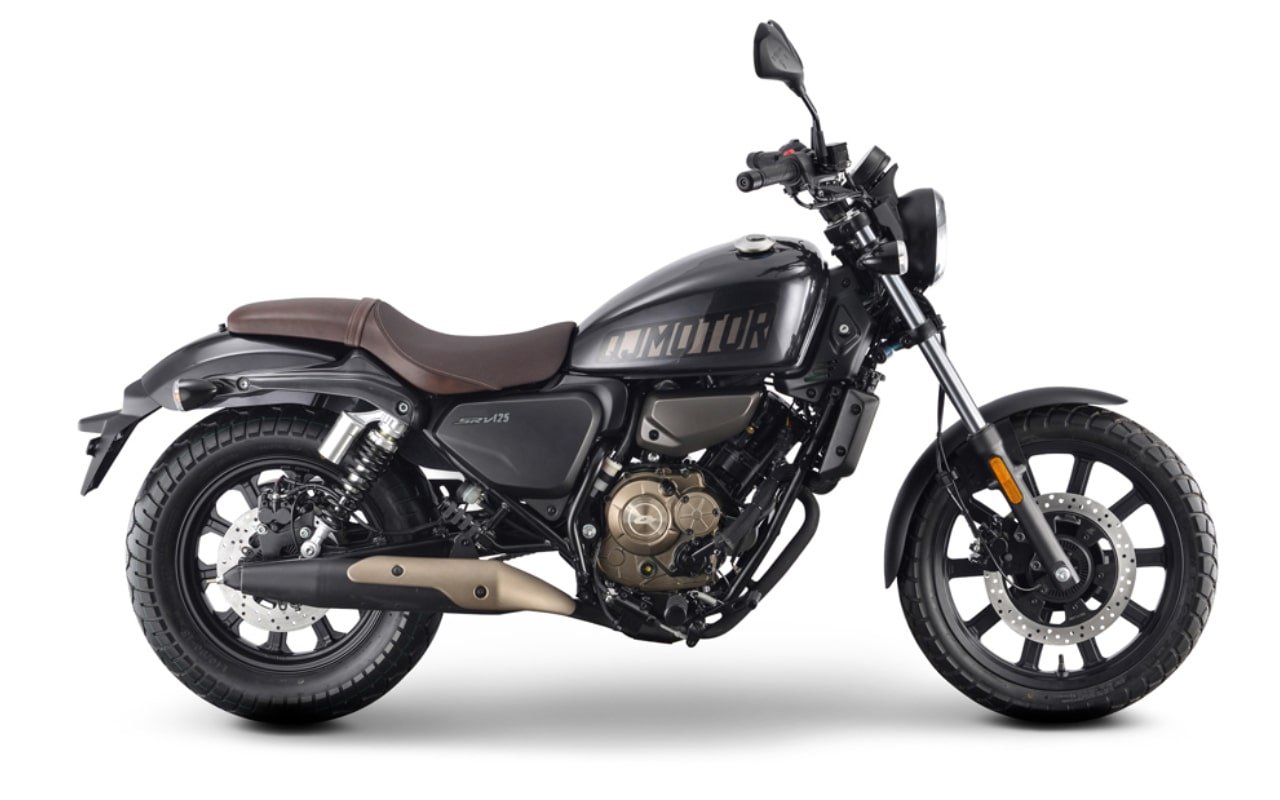

SRV 125

Price:

0,00 lei
SRV 125
Inapoi la motociclete

SRV 125

Capacitate 125cc
Cai putere 11.0/9500(15.0ps)
Cuplu 12.1N·m/7000
Inaltime la sa 720mm
Garda la sol 140mm
  2. Shop
  3. SRV 125
SRV 600 C
SRV 600 C
0,00 lei
0,00 lei
ATR 125
ATR 125
0,00 lei
0,00 lei

SRV 125

https://b2b.qjmotor.com.ro/web/image/product.template/16759/image_1920?unique=d504eb6

0,00 lei 0.0 RON 0,00 lei

0,00 lei

Nu este disponibil pentru vânzare

    Această combinație nu există.

    QJ125-2K
    Produsul este: Disponibil (imediat)
    /report/barcode/?barcode_type=QR&value=False&width=100&height=100&humanreadable=0
    Get in Contact with Us
    Contactați-ne
    Share :
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    Specificatii si date tehnice complete

    Motor
    Tip 1-Cylinder,4V, SOHC, Liquid-Cooled
    Cilindree 125cc
    Alezaj x Cursa 54.0*54.5mm
    Putere Max 11.0/9500(15.0ps)
    Cuplu Max 12.1N·m/7000
    Alimentare EFI
    Start Electric
    Ambreiaj Wet multi-plate
    Transmisie 6 Gears, Chain
    Sasiu
    Suspensie Fata Telescopic forks
    Suspensie Spate Telescopic coil spring oil damped
    Anvelope Fata 90/90-17
    Anvelope Spate 140/90-15
    Frane Fata Disc ø280mm (ABS or CBS)
    Frane Spate Disc ø240mm (ABS or CBS)
    Dimensiuni
    Dimensiuni 2140*825*1050mm - 2140*780*1050mm (Optional balance weight of the handlebar)
    Ampatament 1440mm
    Inaltime Sa 720mm
    Garda la sol 140mm
    Capacitate Rezervor 14.7L
    Greutate 150
    Contact

    Solicita o oferta pentru acest model

    Completeaza formularul si revenim catre tine cu detalii despre motocicleta selectata.

    E01 CYLINDER HEAD(、) E01 CYLINDER HEAD(、)
    E02 CYLINDER HEAD E02 CYLINDER HEAD
    E03 AIR INFLOW SYSTEM E03 AIR INFLOW SYSTEM
    E04 VALVE MECHANISM SUB-ASSEMBLY E04 VALVE MECHANISM SUB-ASSEMBLY
    E05 STRAINER UNIT ASSEMBLY E05 STRAINER UNIT ASSEMBLY
    E06 PISTON,CONNECTING ROD & CRANKSHAFT ASSY E06 PISTON,CONNECTING ROD & CRANKSHAFT ASSY
    E07 CYLINDER ASSY E07 CYLINDER ASSY
    E08 LEFT CRANKCASE ASSY E08 LEFT CRANKCASE ASSY
    E09 RIGHT CRANKCASE ASSY E09 RIGHT CRANKCASE ASSY
    E10 RIGHT COVER ASSY E10 RIGHT COVER ASSY
    E11 LEFT COVER ASSY E11 LEFT COVER ASSY
    E12 OIL PUMP ASSY E12 OIL PUMP ASSY
    E13 CLUTCH ASSY E13 CLUTCH ASSY
    E14 CLUTCH ASSY E14 CLUTCH ASSY
    E15 PRIMARY SHAFT ASSY E15 PRIMARY SHAFT ASSY
    E16 COUNTERSHAFT ASSY E16 COUNTERSHAFT ASSY
    E17 ELECTRIC STARTER ASSY E17 ELECTRIC STARTER ASSY
    E18 WATER PUMP ASSY E18 WATER PUMP ASSY
    F01 CONTROL ASSY. F01 CONTROL ASSY.
    F02 1 FORK ASSY. F02 1 FORK ASSY.
    F03 FRONT WHEEL ASSY. F03 FRONT WHEEL ASSY.
    F04 DISK BRAKE ASSY. F04 DISK BRAKE ASSY.
    F05 MUFFLER ASSY. F05 MUFFLER ASSY.
    F06 AIR CLEANER ASSY. F06 AIR CLEANER ASSY.
    F07 FUEL TANK ASSY. F07 FUEL TANK ASSY.
    F08 SEAT ASSY. F08 SEAT ASSY.
    F09 REAR SWINGING ARM ASSY. F09 REAR SWINGING ARM ASSY.
    F10 REAR WHEEL ASSY. F10 REAR WHEEL ASSY.
    F11 I FRAME BODY ASSY. F11 I FRAME BODY ASSY.
    F12 II FRAME BODY ASSY. F12 II FRAME BODY ASSY.
    F13 FRAME BODY ASSY. F13 FRAME BODY ASSY.
    F14 REAR ABSORBER ASSY. F14 REAR ABSORBER ASSY.
    F15 REAR ABSORBER ASSY. F15 REAR ABSORBER ASSY.
    F16 SODE COVER ASSY. F16 SODE COVER ASSY.
    F17 REAR FENDER ASSY. F17 REAR FENDER ASSY.
    F18 LAMPS AND METERS . F18 LAMPS AND METERS .
    F19 ELECTRICAL EQUIPMENT ASSY. F19 ELECTRICAL EQUIPMENT ASSY.
    F20 ENGINE ATTACHMENT ASSY. F20 ENGINE ATTACHMENT ASSY.
    F21 ASSY. F21 ASSY.
    F22 TOOL KIT ASSY. F22 TOOL KIT ASSY.
