SRV 600 V

Price:

0,00 lei

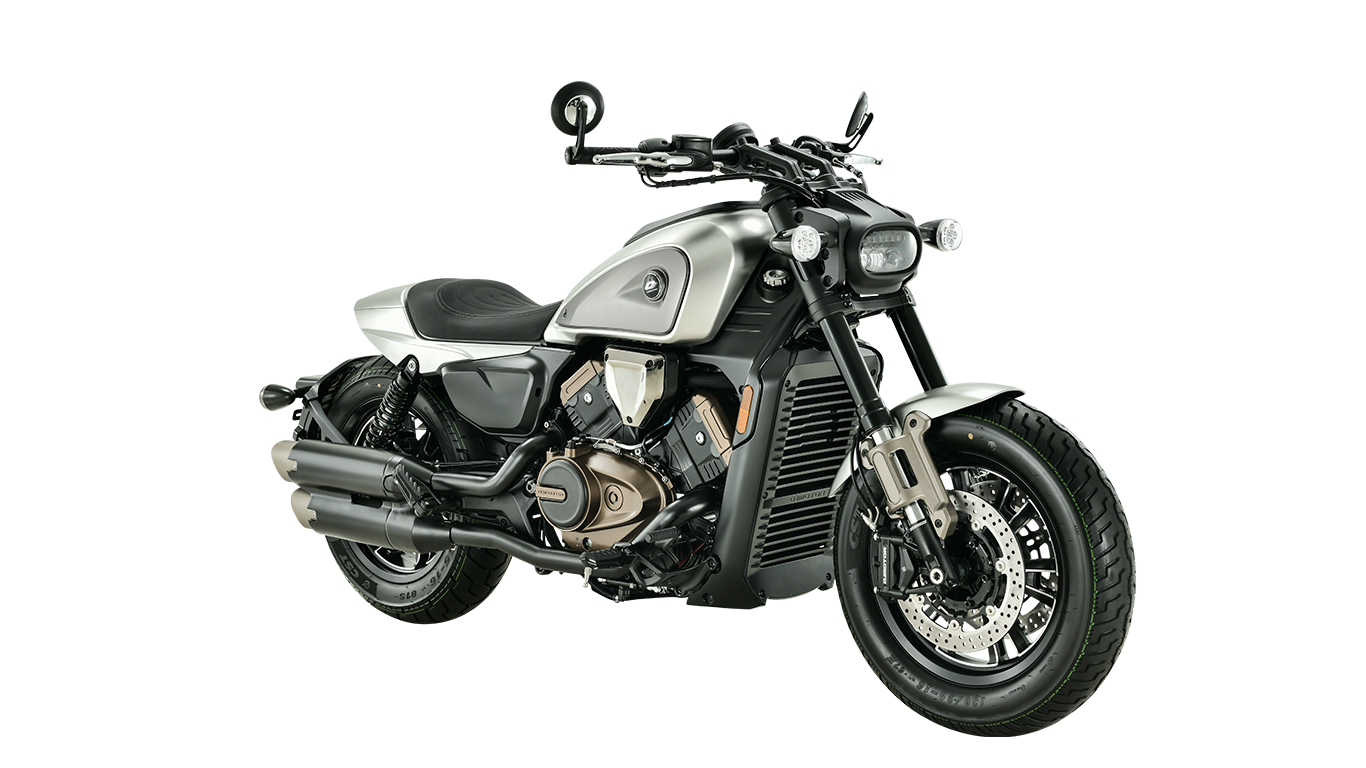

SRV 600 V
Inapoi la motociclete

SRV 600 V

Capacitate 561cc
Cai putere 50.5/10500(68.7ps)(E5/E-Mark) 51.0/10500(69.3ps)(E5+) 35.0/7250(47.6ps)(E5+)
Cuplu 53.0N∙m/8500(E5+) 45.5N∙m/7250(E5+)
Inaltime la sa 720mm
Garda la sol 140mm
  2. Shop
  3. SRV 600 V
SRK 921
SRK 921
0,00 lei
0,00 lei
SRV 600 C
SRV 600 C
0,00 lei
0,00 lei

SRV 600 V

https://b2b.qjmotor.com.ro/web/image/product.template/16757/image_1920?unique=d504eb6

0,00 lei 0.0 RON 0,00 lei

0,00 lei

Nu este disponibil pentru vânzare

    Această combinație nu există.

    QJ600-12B
    Produsul este: Disponibil (imediat)
    /report/barcode/?barcode_type=QR&value=False&width=100&height=100&humanreadable=0
    Get in Contact with Us
    Contactați-ne
    Share :
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    Specificatii si date tehnice complete

    Motor
    Tip 4-Cylinder V, 16V DOHC, Liquid-Cooled
    Cilindree 561cc
    Alezaj x Cursa 61.0*48.0mm
    Putere Max 50.5/10500(68.7ps)(E5/E-Mark) 51.0/10500(69.3ps)(E5+) 35.0/7250(47.6ps)(E5+)
    Cuplu Max 53.0N∙m/8500(E5+) 45.5N∙m/7250(E5+)
    Alimentare EFI
    Start Electric
    Ambreiaj Wet multi-plate
    Transmisie 6 Gears,Belt
    Sasiu
    Suspensie Fata Telescopic Upside-Down
    Suspensie Spate Telescopic coil spring oil damped
    Anvelope Fata 130/90-16
    Anvelope Spate 180/65-16
    Frane Fata Disc ø300mm (ABS)
    Frane Spate Disc ø260mm
    Dimensiuni
    Dimensiuni 2280*830*1115mm
    Ampatament 1580mm
    Inaltime Sa 720mm
    Garda la sol 140mm
    Capacitate Rezervor 16L
    Greutate 228
    Contact

    Solicita o oferta pentru acest model

    Completeaza formularul si revenim catre tine cu detalii despre motocicleta selectata.

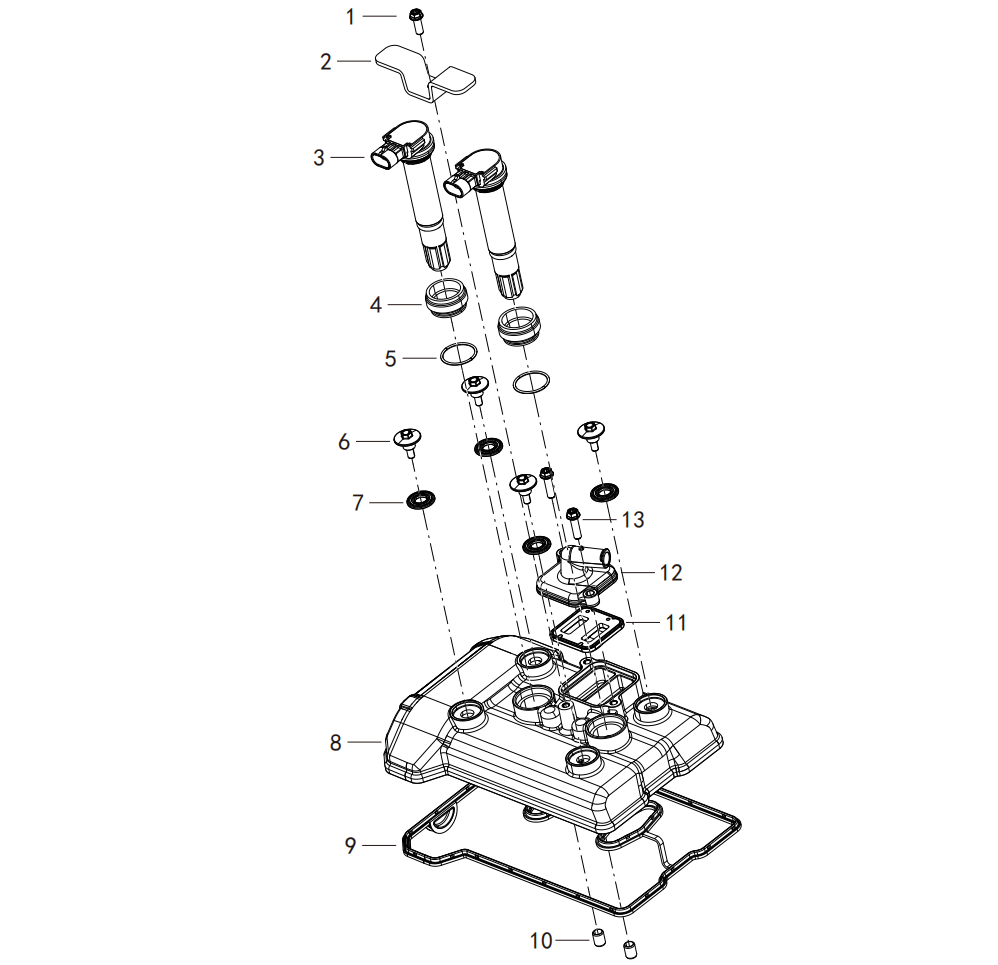

    E01 CYLINDER HEAD E01 CYLINDER HEAD

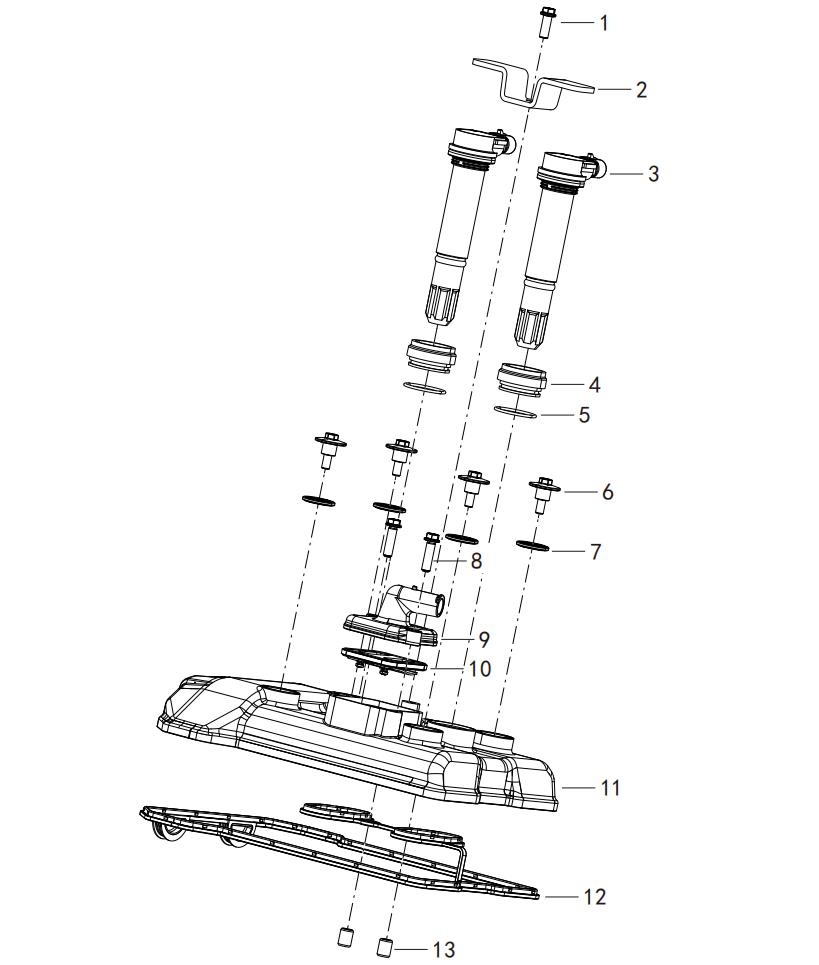

    E02 CYLINDER HEAD E02 CYLINDER HEAD

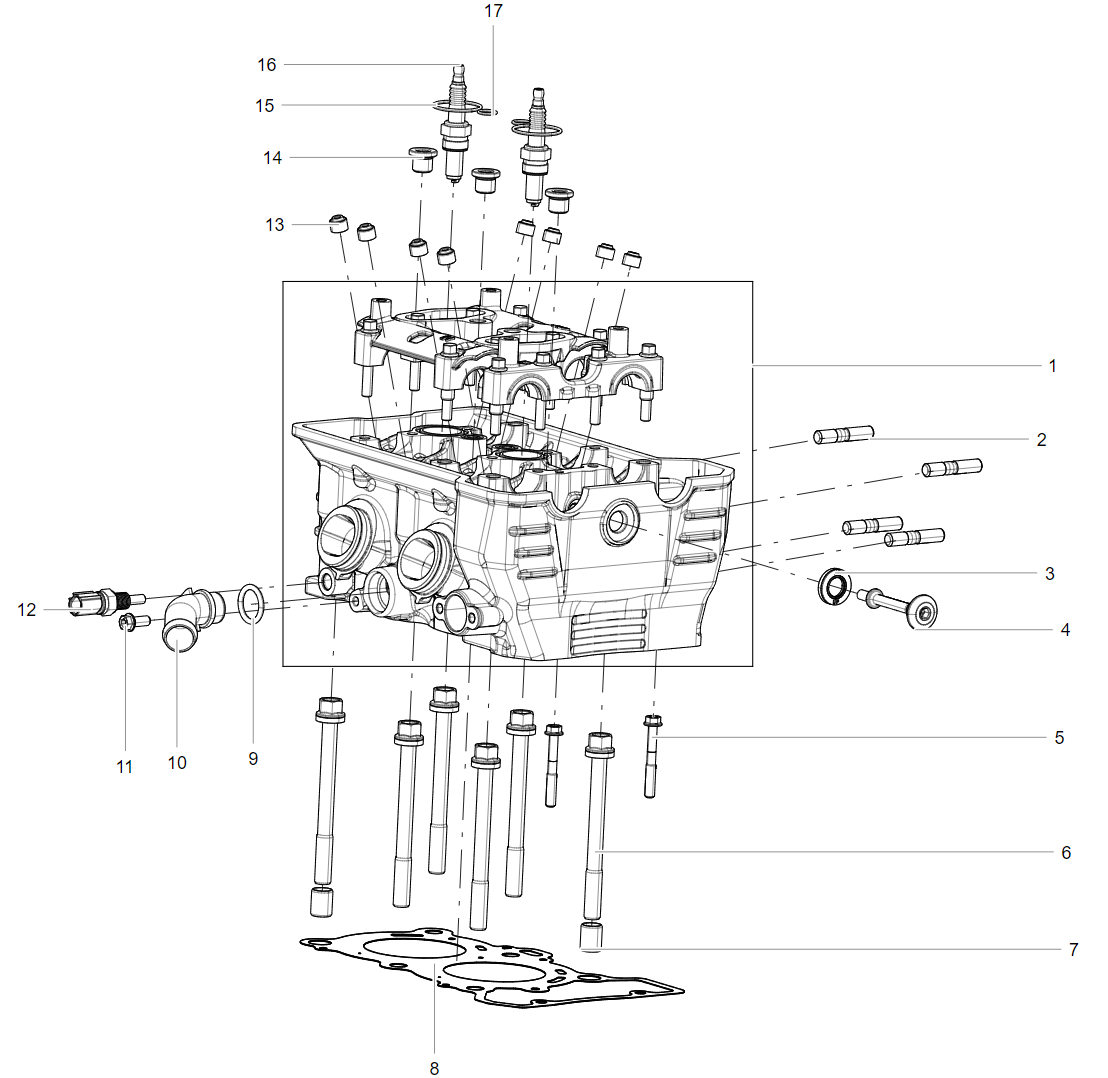

    E03 CLYINDER COVER ASSY E03 CLYINDER COVER ASSY

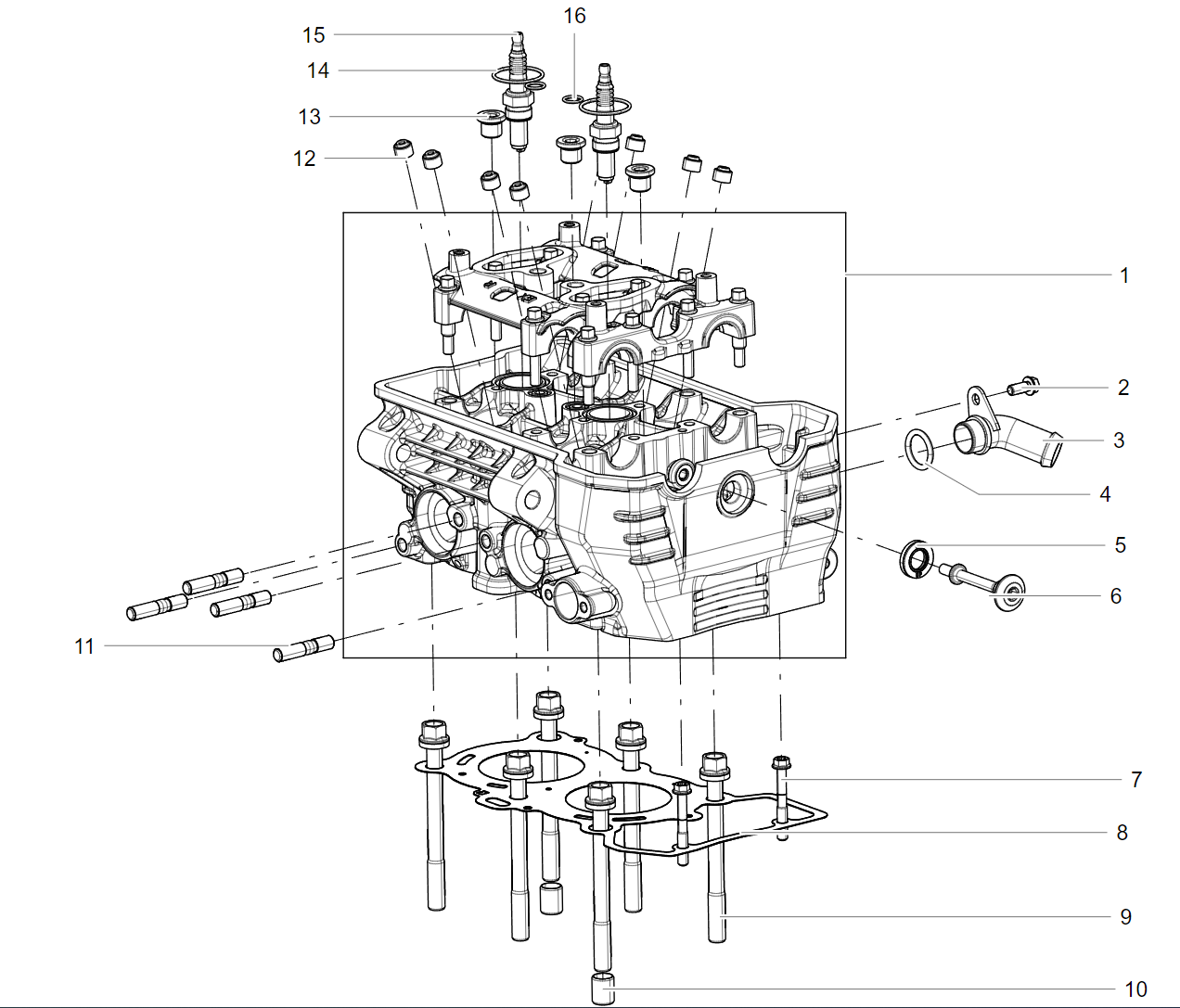

    E04 CLYINDER COVER ASSY E04 CLYINDER COVER ASSY

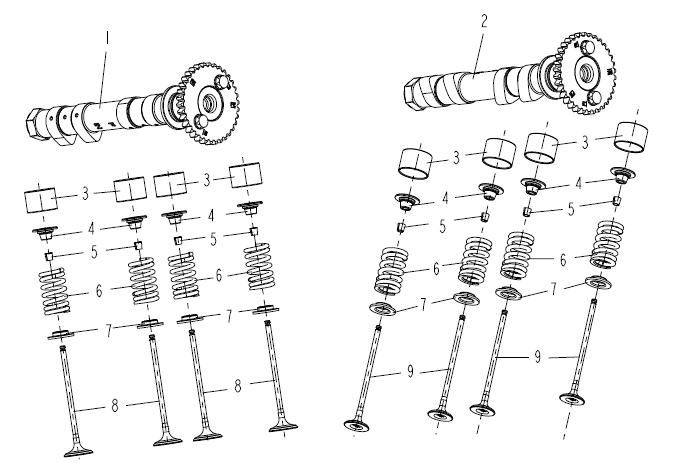

    E05 VALVE MECHANISM SUB-ASSY E05 VALVE MECHANISM SUB-ASSY
    E06 VALVE MECHANISM SUB-ASSY E06 VALVE MECHANISM SUB-ASSY

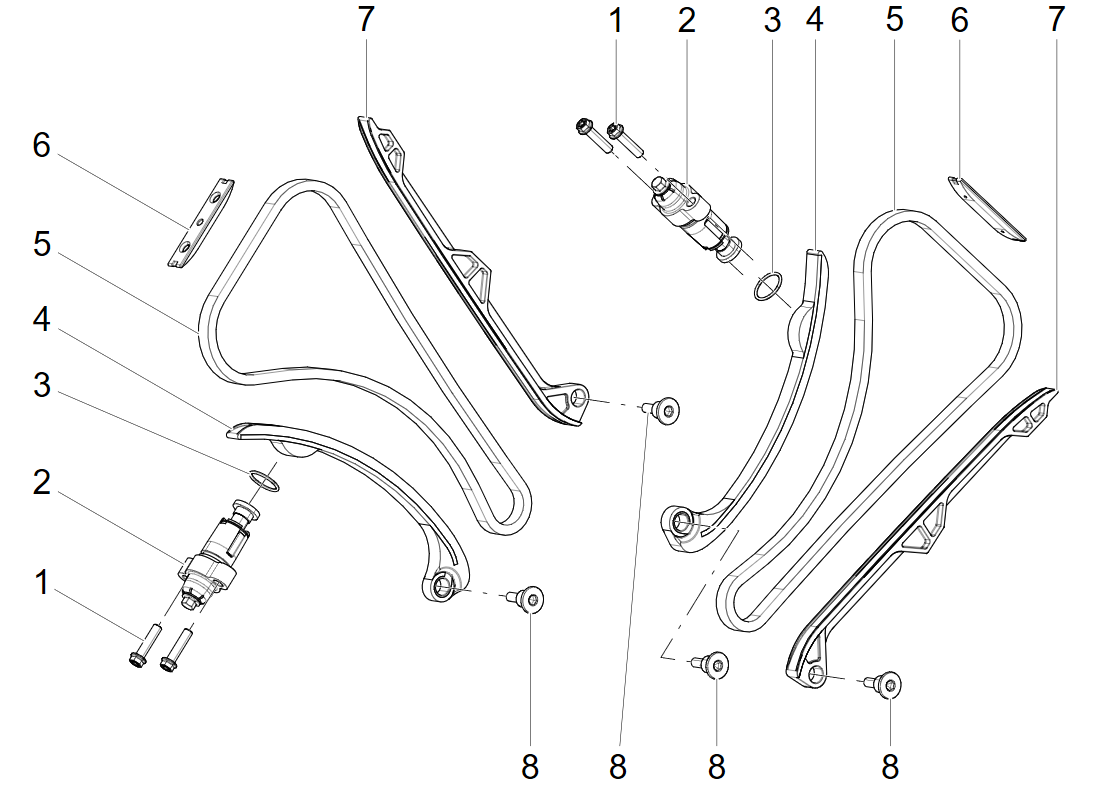

    E07 STRAINER UNIT ASSY E07 STRAINER UNIT ASSY

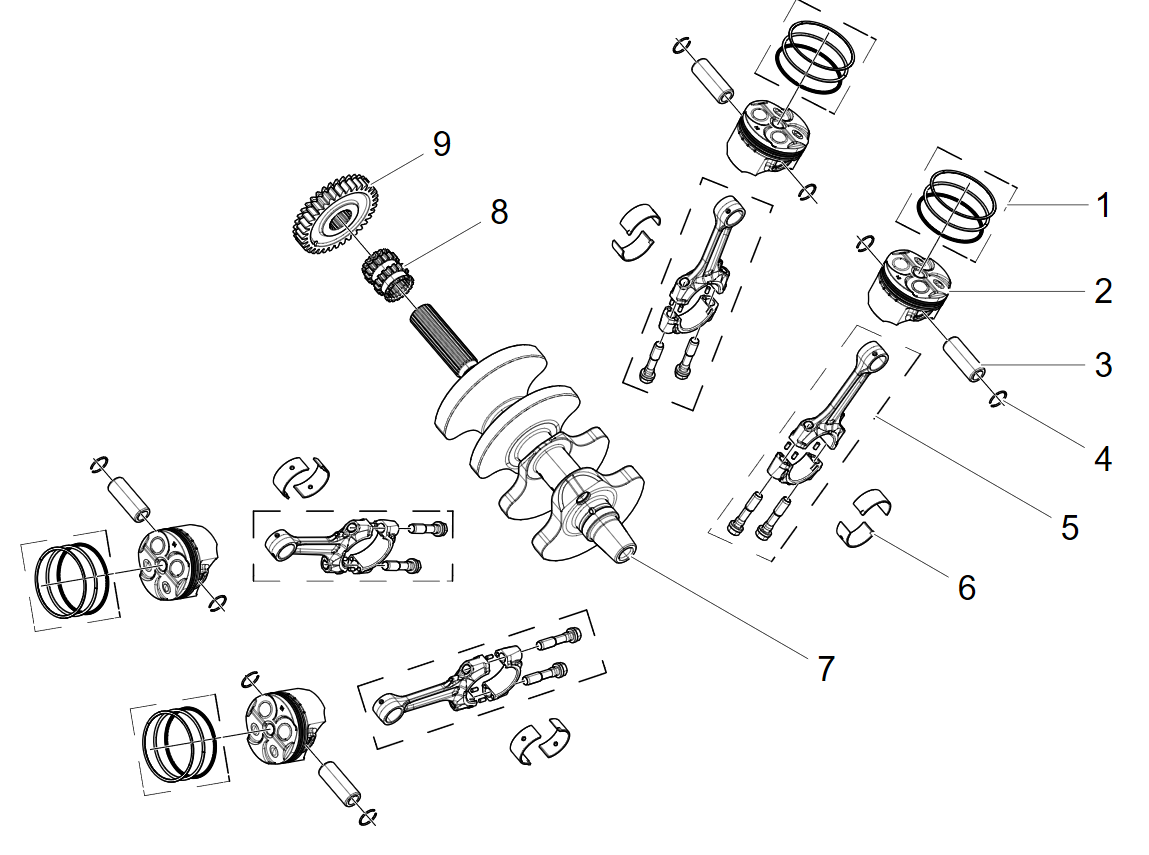

    E08 PISTON,CONNECTING ROD & CRANKSHAFT ASSY E08 PISTON,CONNECTING ROD & CRANKSHAFT ASSY

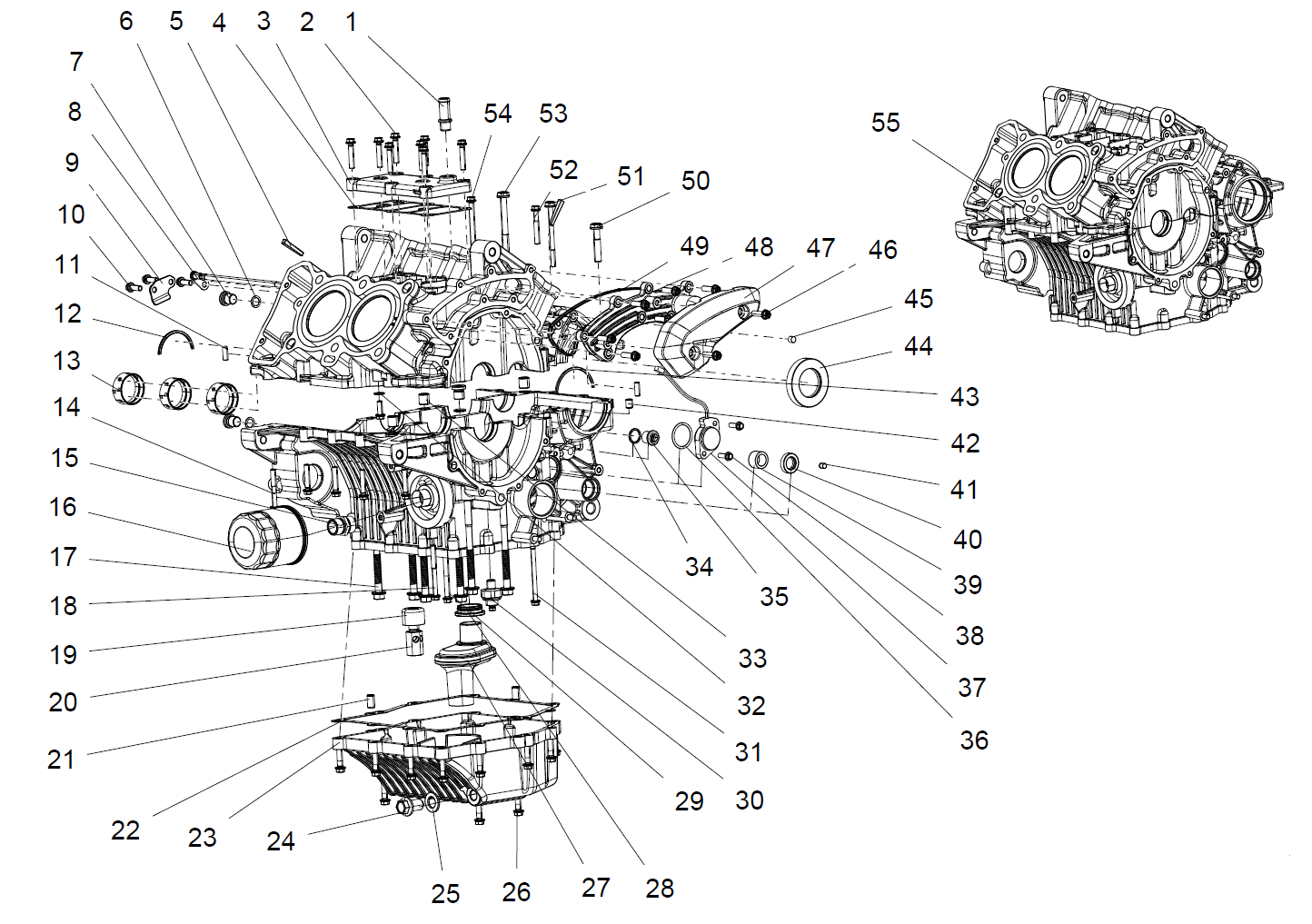

    E09 CRANKCASE ASSY E09 CRANKCASE ASSY

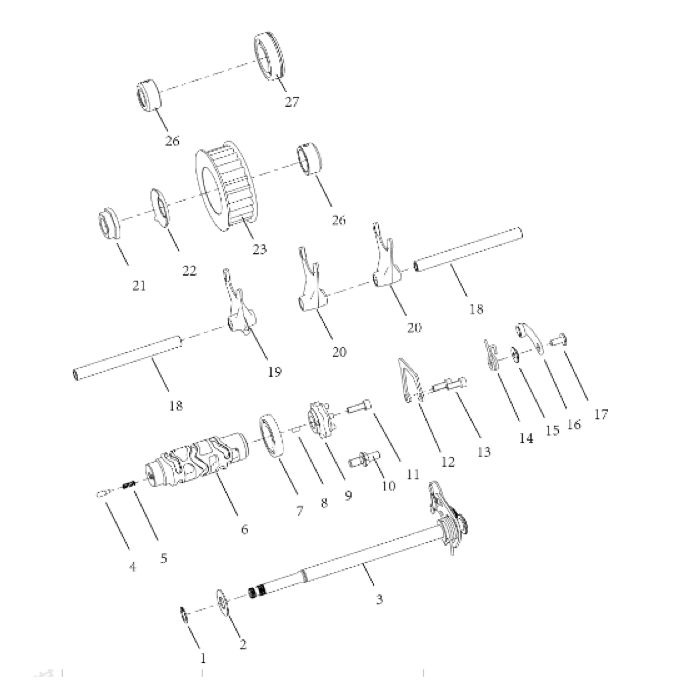

    E10 GEAR SHIFT MECHANISM ASSEMBLY E10 GEAR SHIFT MECHANISM ASSEMBLY

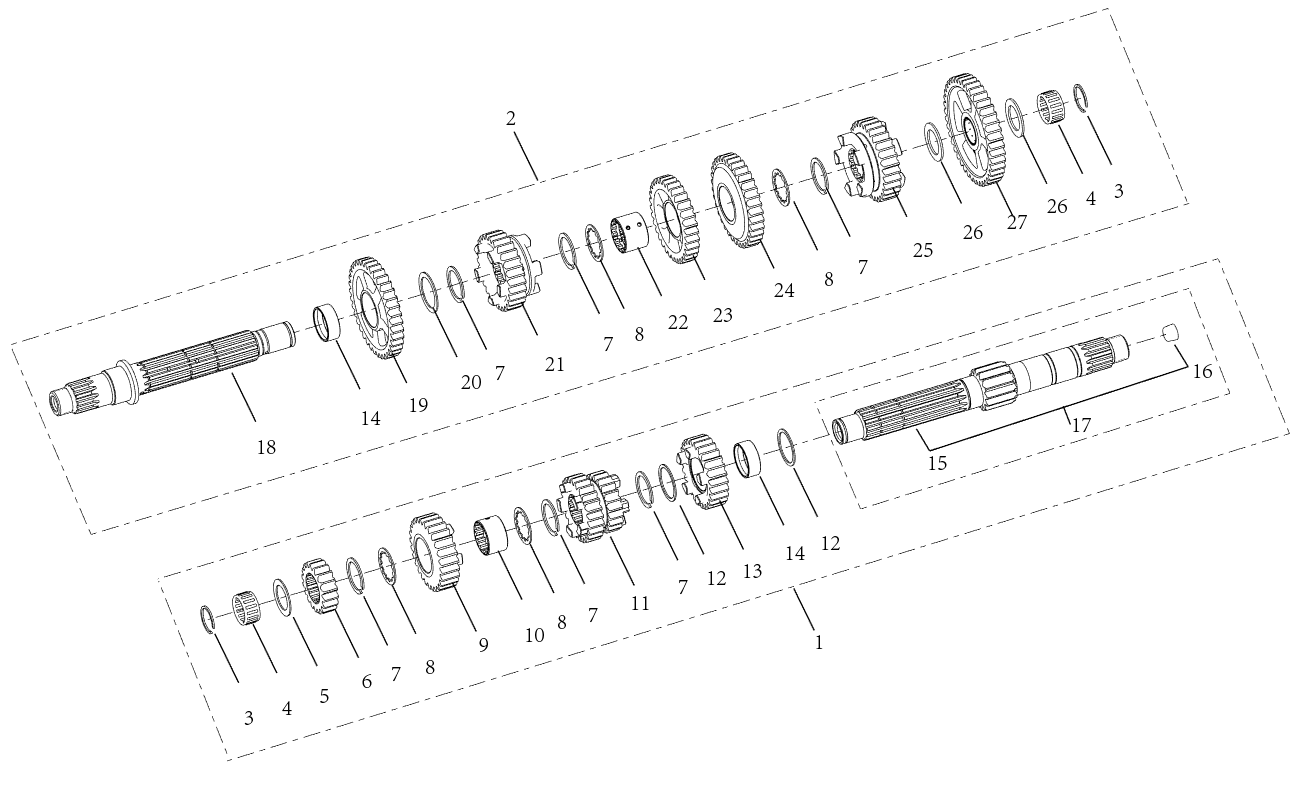

    E11 MAIN AND AUXILIARY SHAFT ASSEMBLY E11 MAIN AND AUXILIARY SHAFT ASSEMBLY

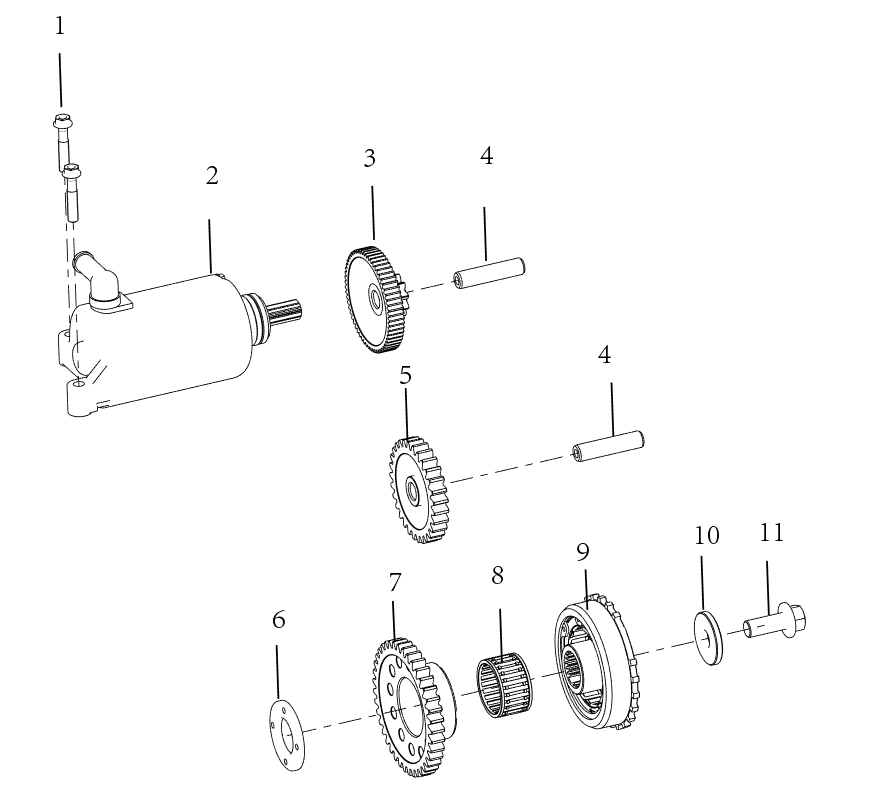

    E12 ELECTRICAL SYSTEM E12 ELECTRICAL SYSTEM

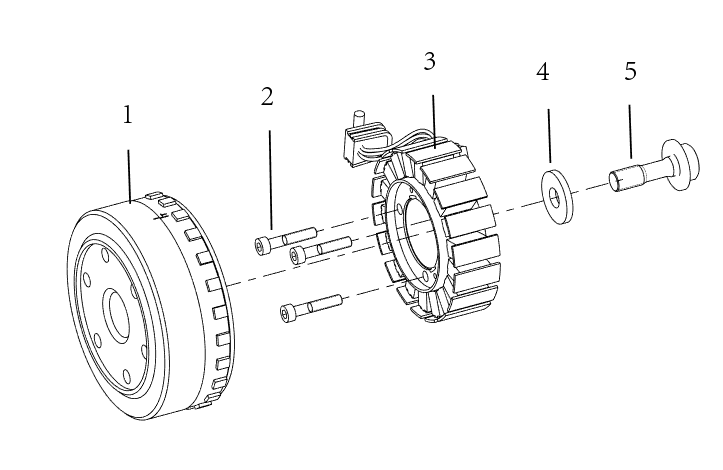

    E14 ELECTRICAL SYSTEM E14 ELECTRICAL SYSTEM

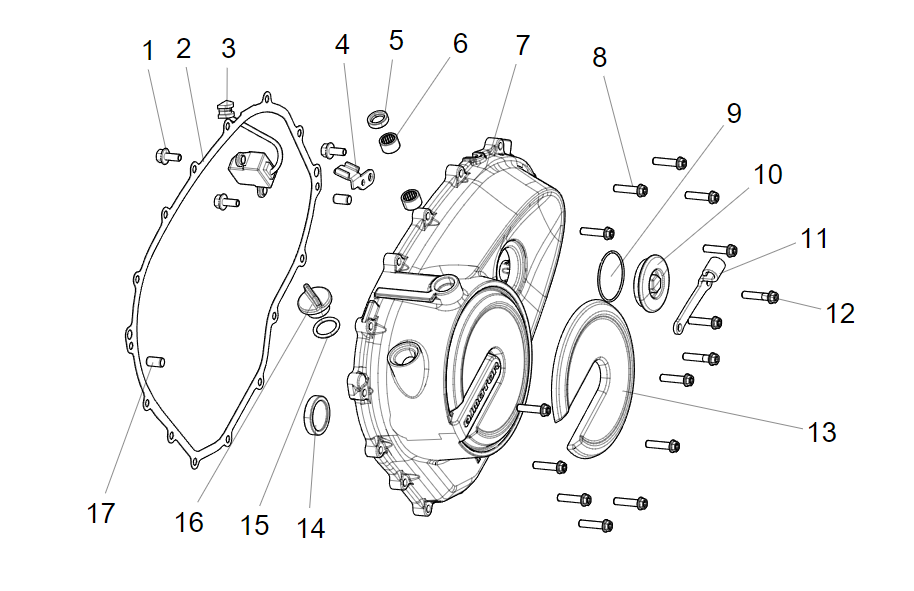

    E15 RIGHT COVER ASSY E15 RIGHT COVER ASSY

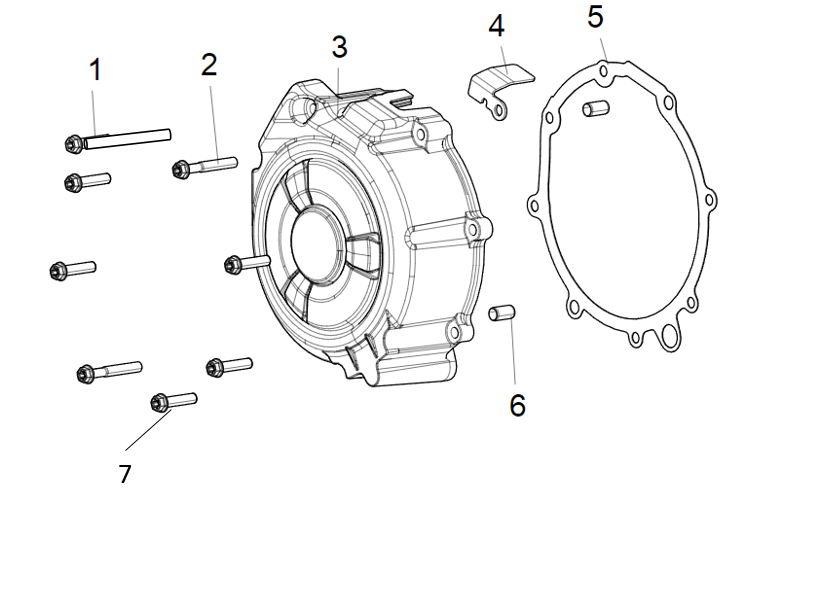

    E16 LEFT COVER ASSY E16 LEFT COVER ASSY

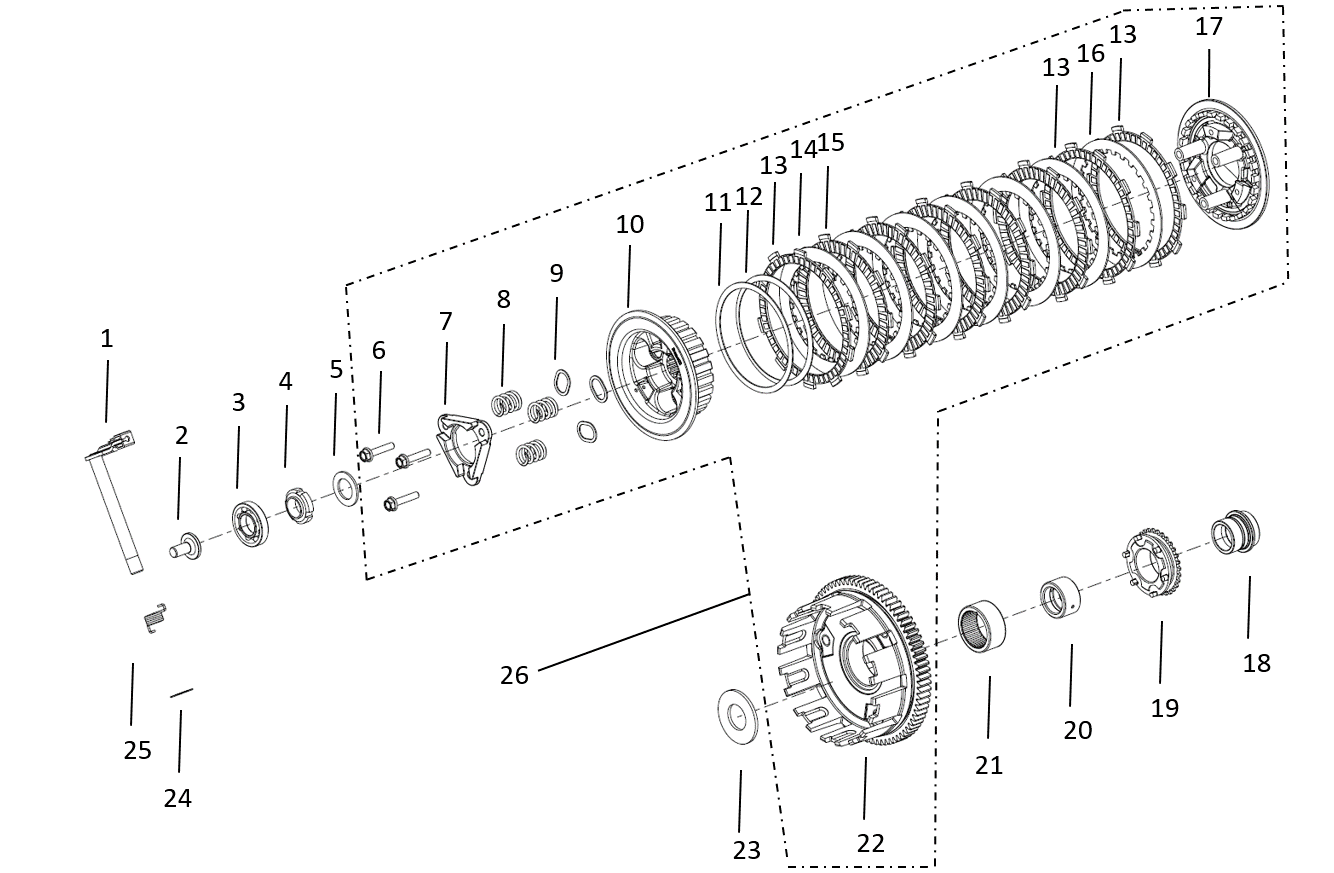

    E17 CLUTCH SYSTEM E17 CLUTCH SYSTEM

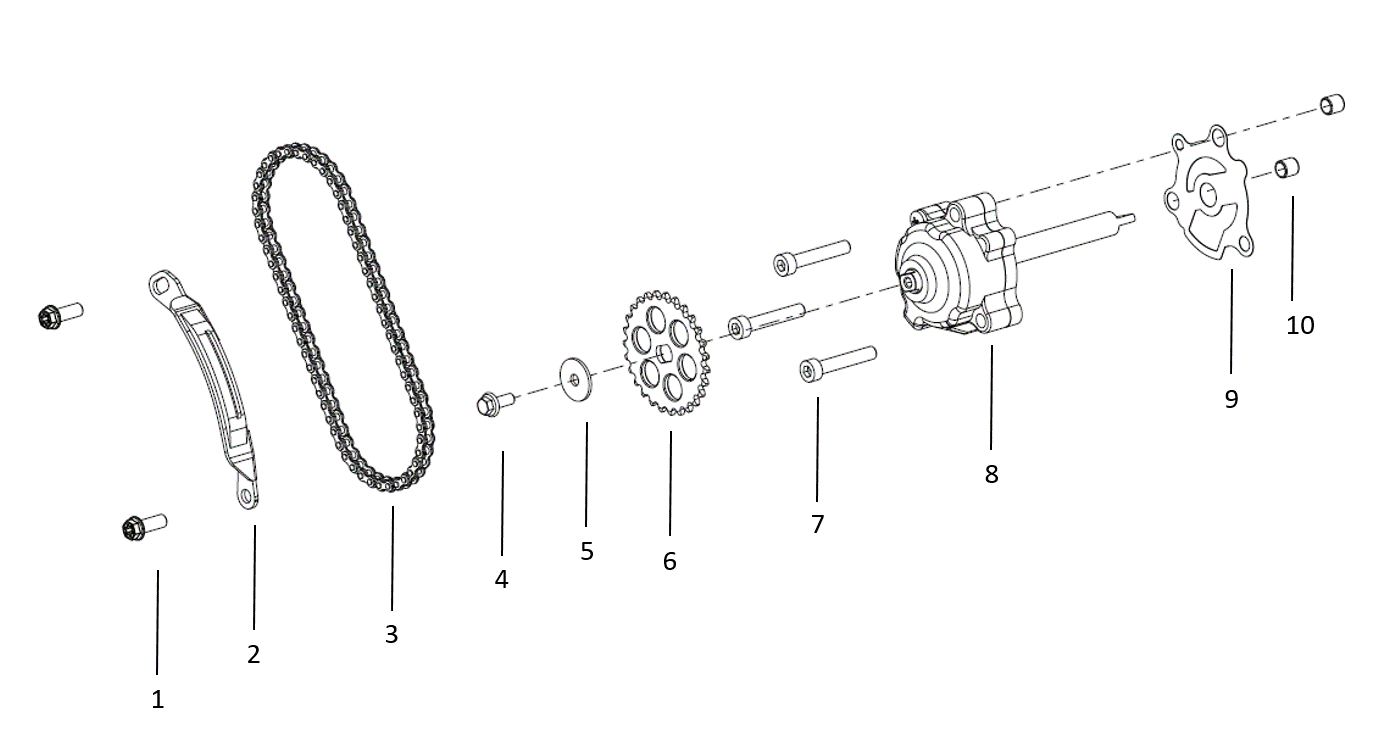

    E18 LUBRICATE SYSTEM E18 LUBRICATE SYSTEM

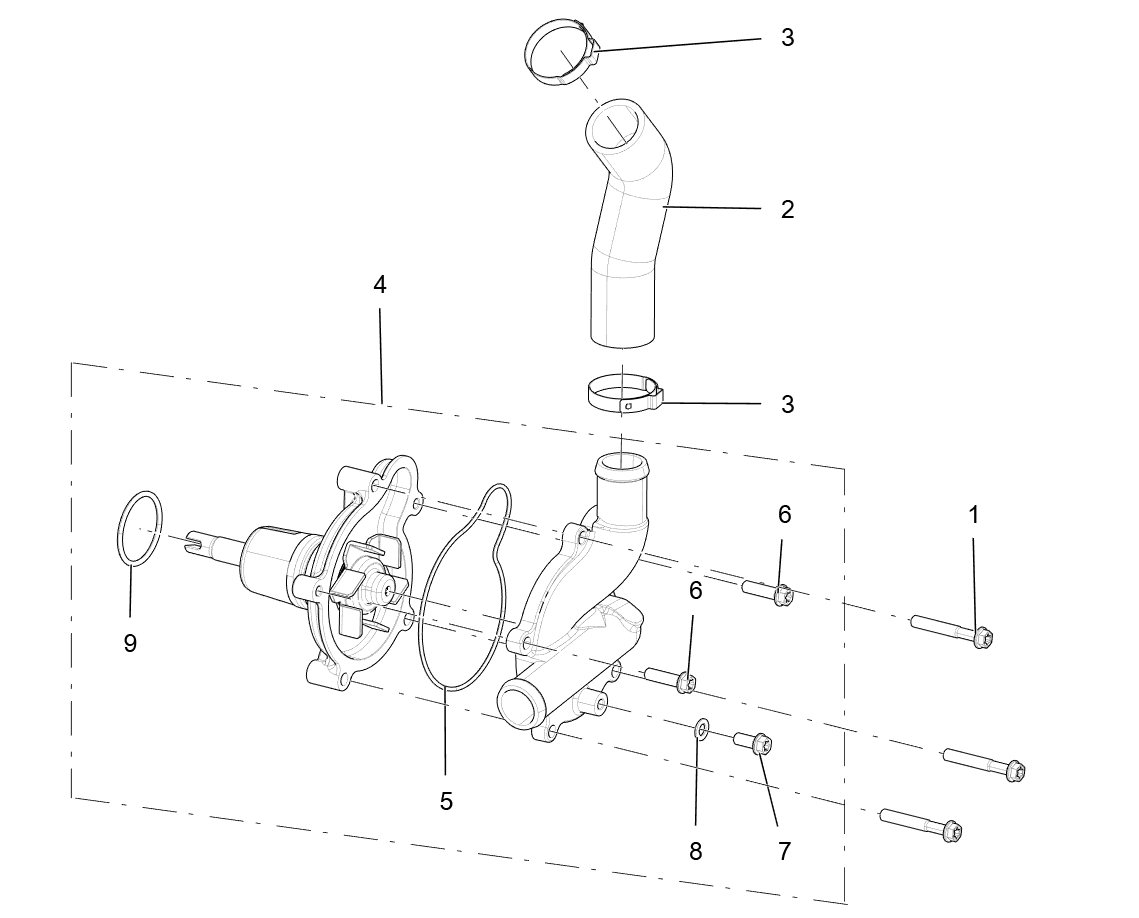

    E19 WATER PUMP SUB-ASSY E19 WATER PUMP SUB-ASSY

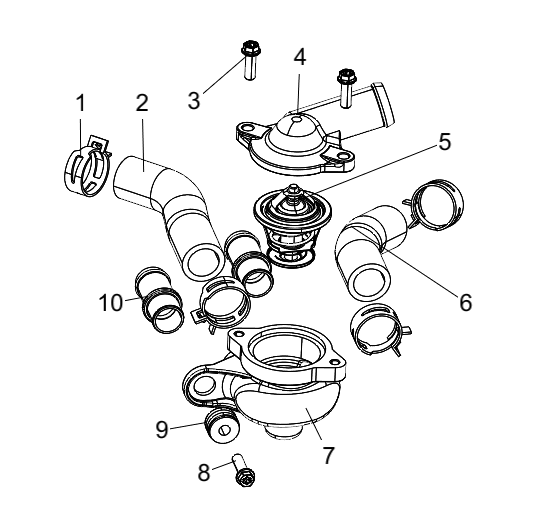

    E20 THERMONSTAT SUB-ASSEMBLY E20 THERMONSTAT SUB-ASSEMBLY

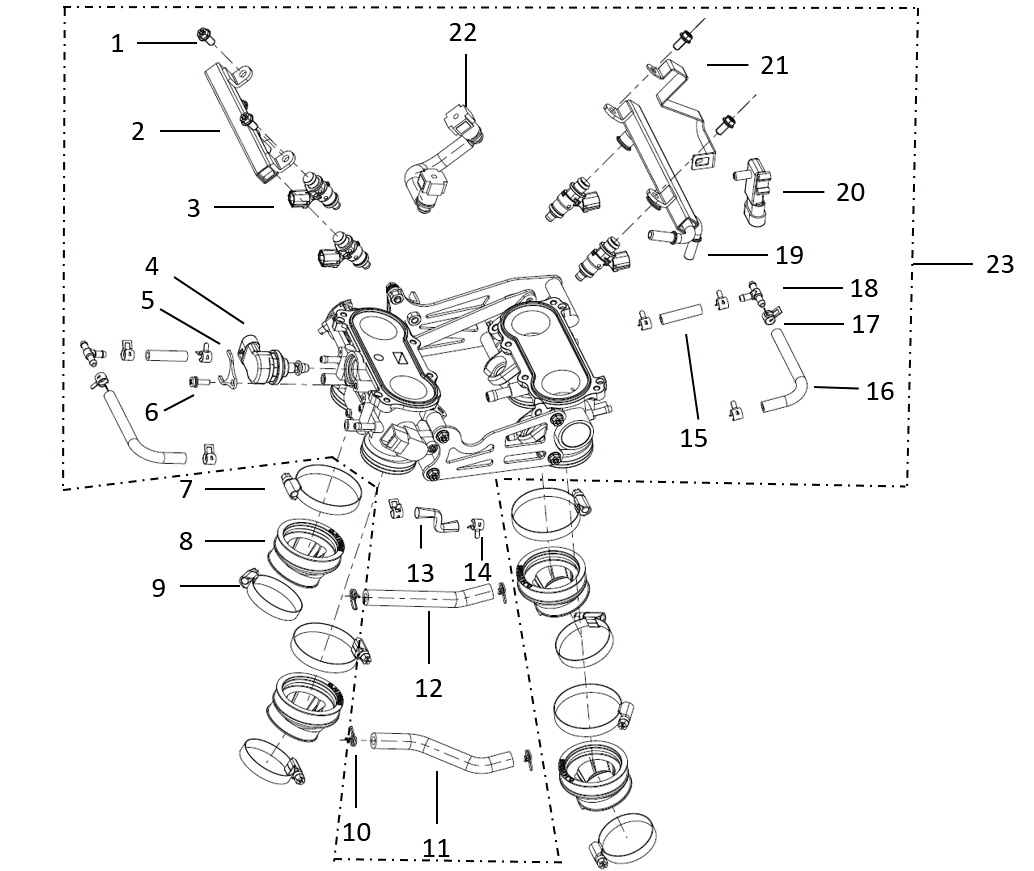

    E21 THROTTLE VALVE SUB-ASSEMBLY E21 THROTTLE VALVE SUB-ASSEMBLY

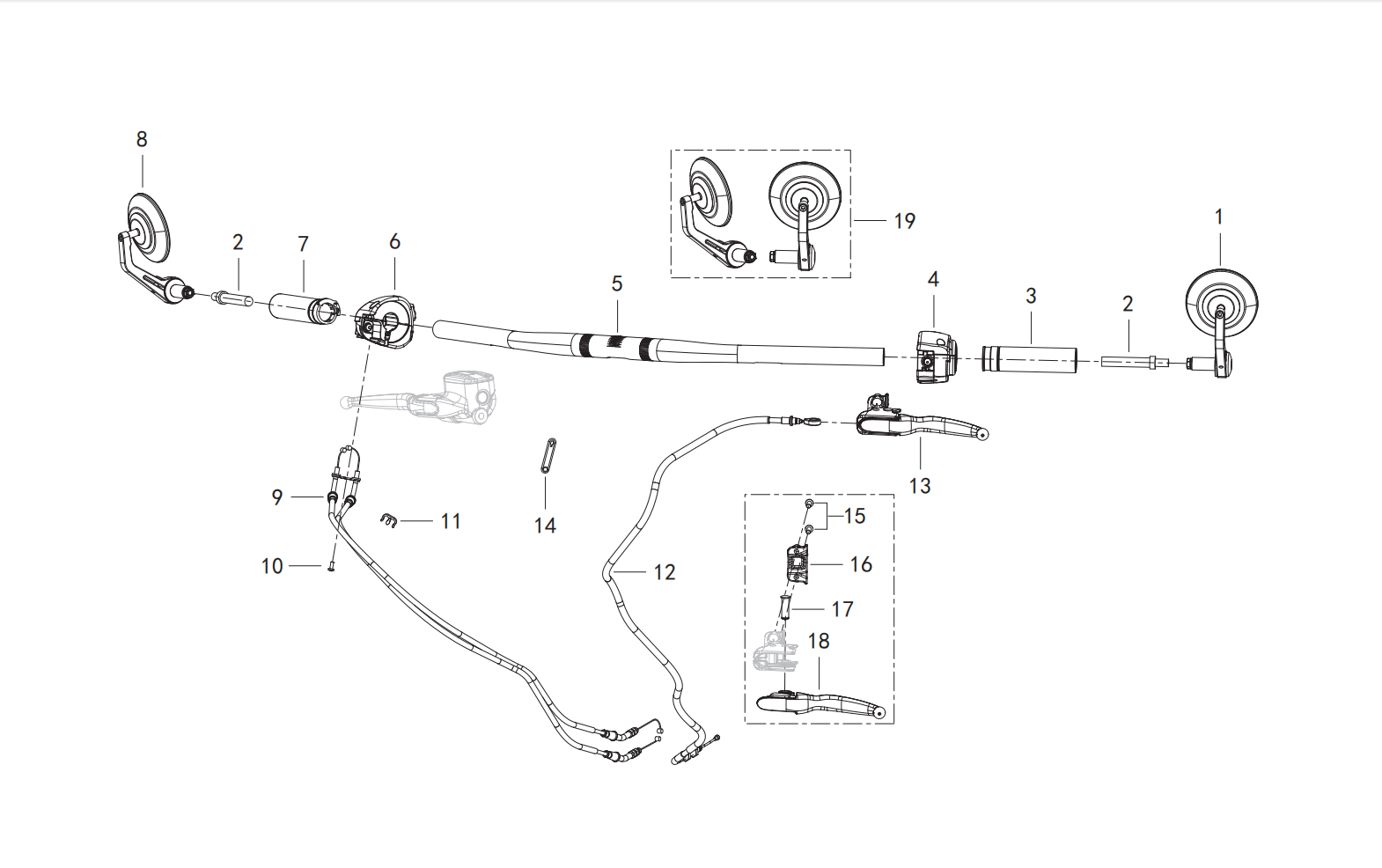

    F01 CONTROL ASSY. F01 CONTROL ASSY.

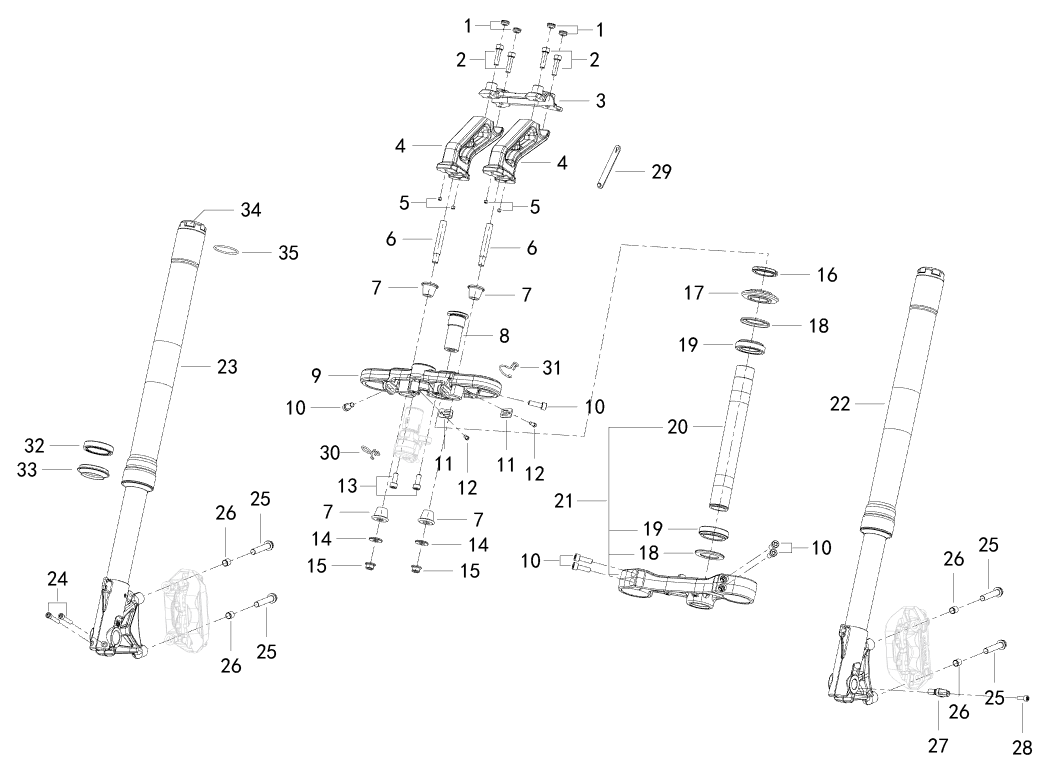

    F02 FORK ASSY. F02 FORK ASSY.

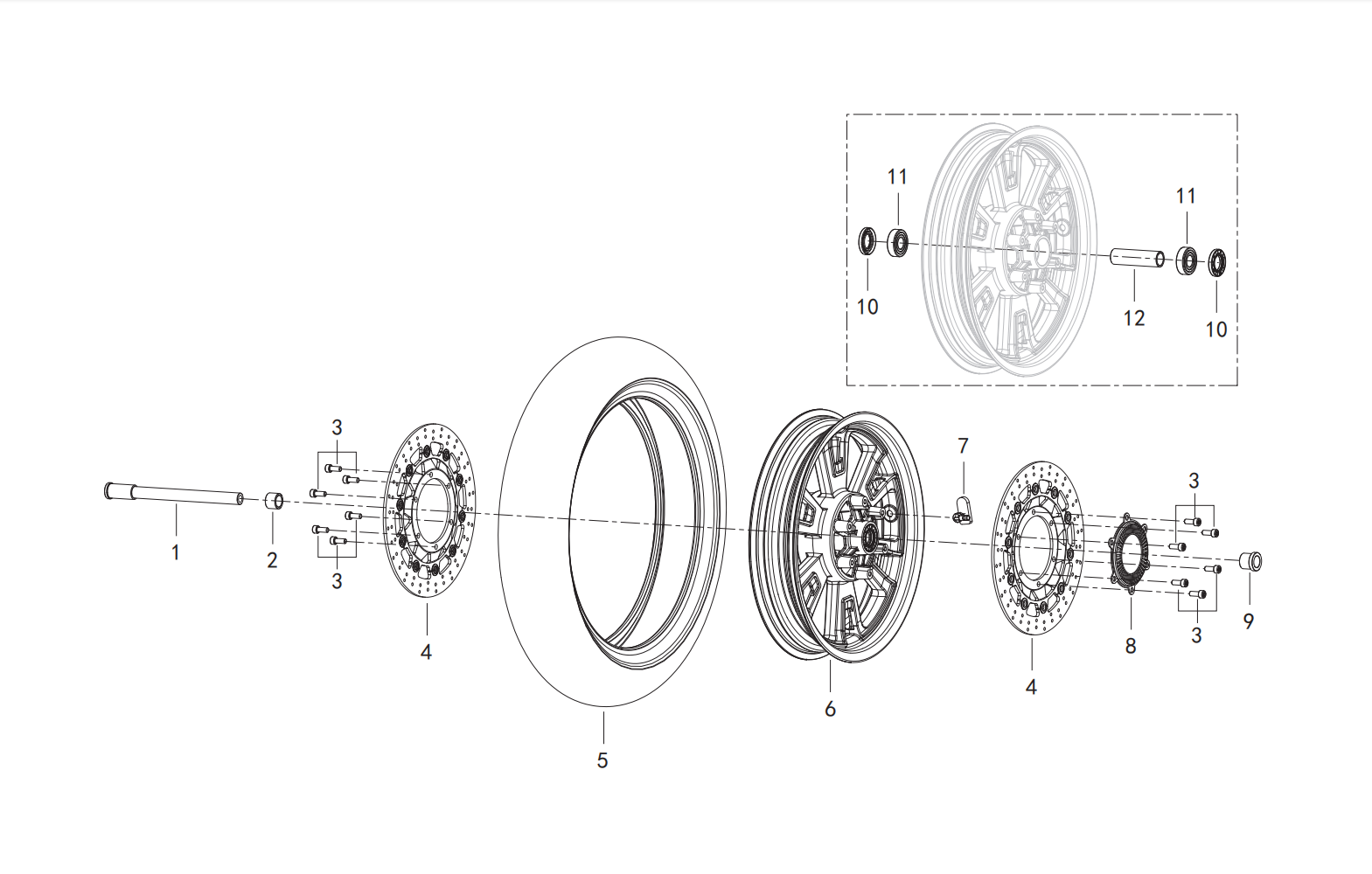

    F03 FRONT WHEEL ASSY. F03 FRONT WHEEL ASSY.

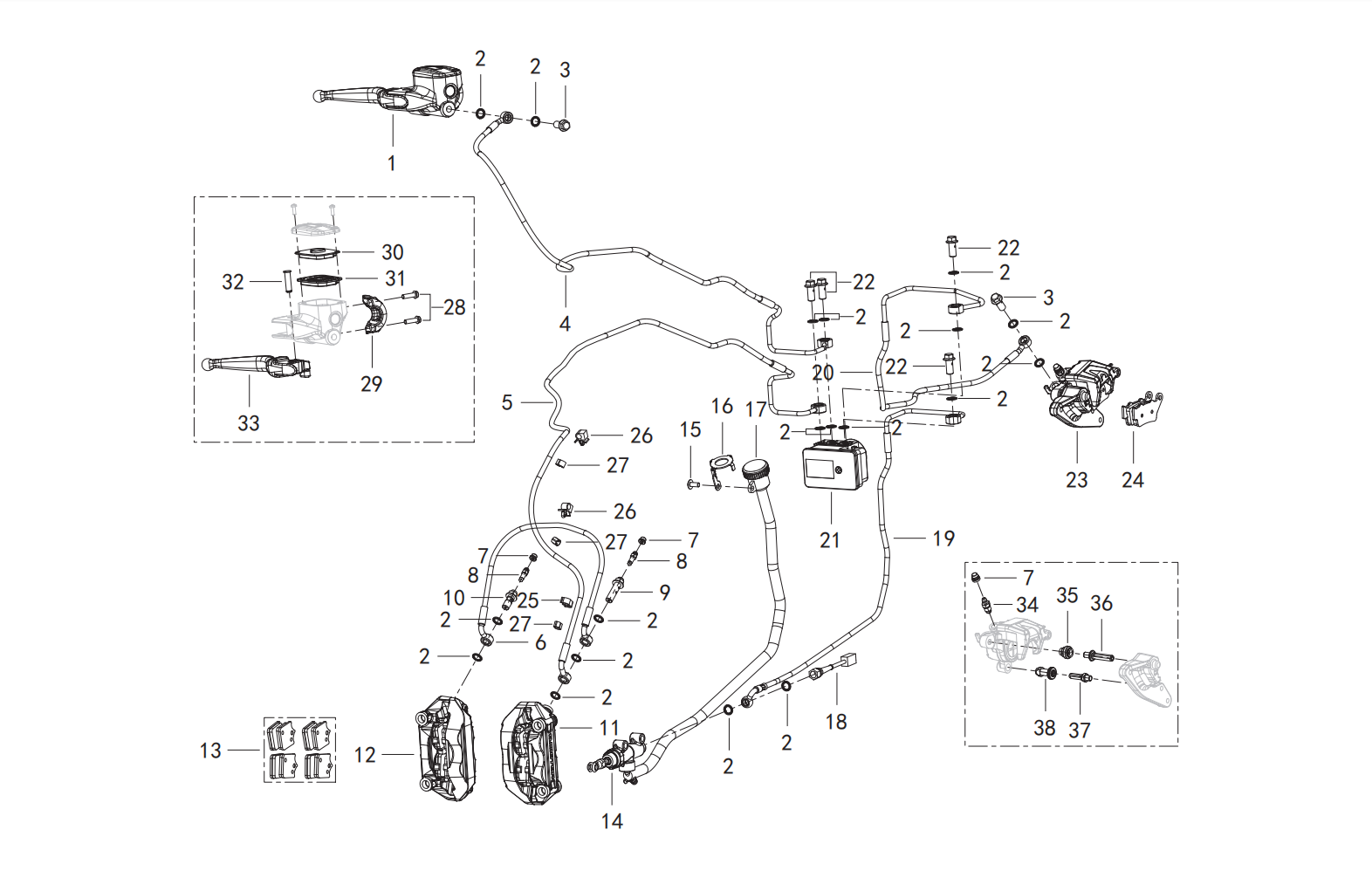

    F04 BRAKE ASSY. F04 BRAKE ASSY.

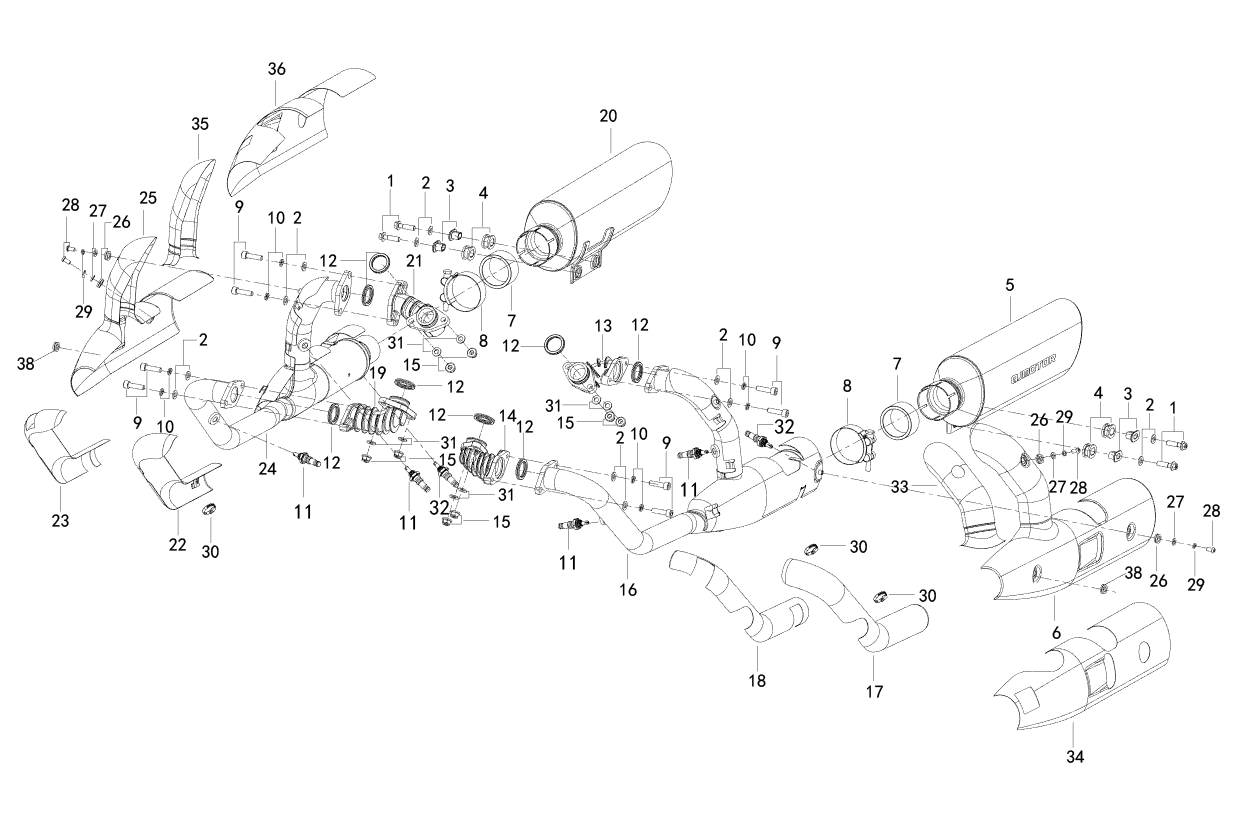

    F05 MUFFLER ASSY. F05 MUFFLER ASSY.

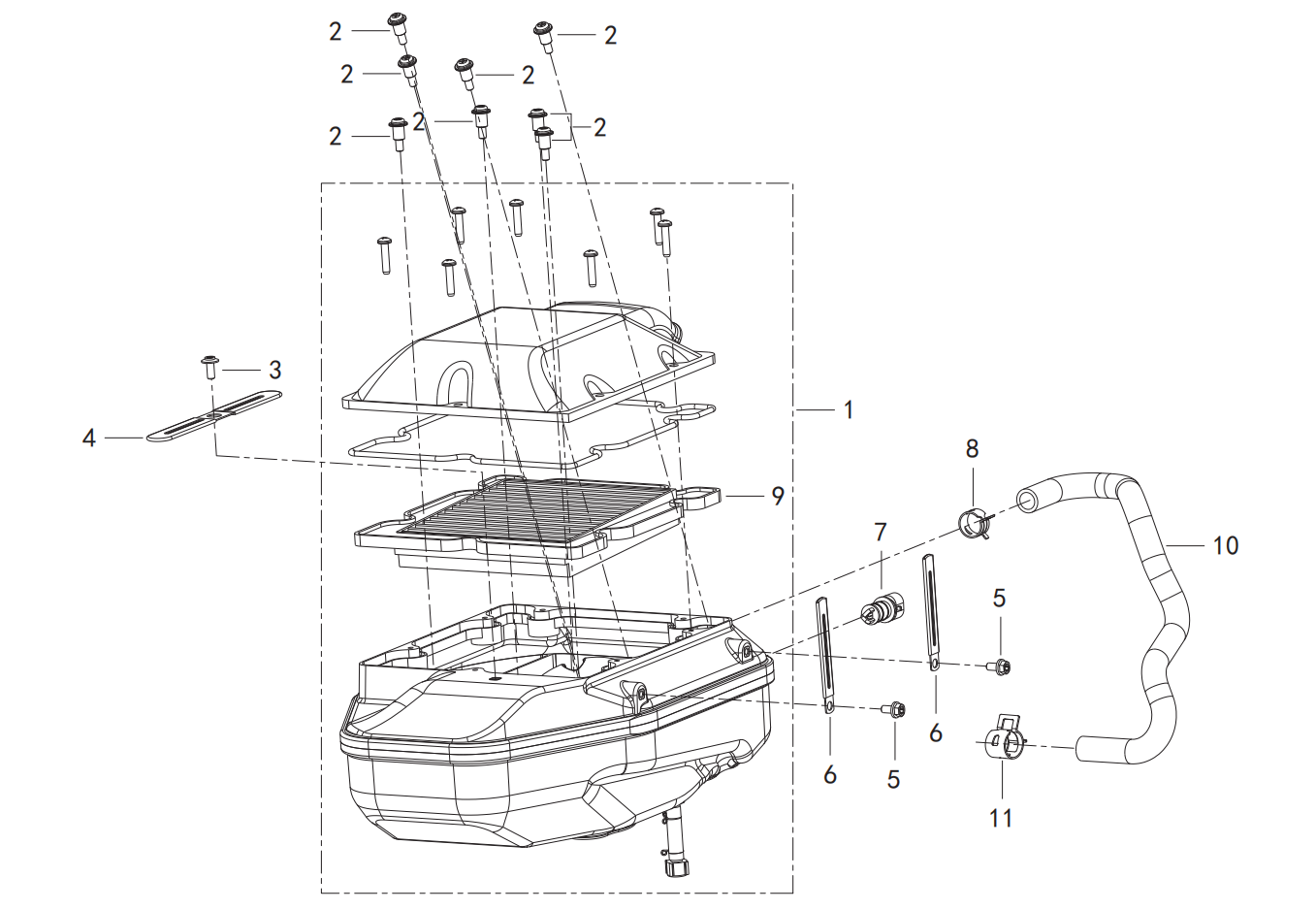

    F06 AIR CLEANER ASSY. F06 AIR CLEANER ASSY.

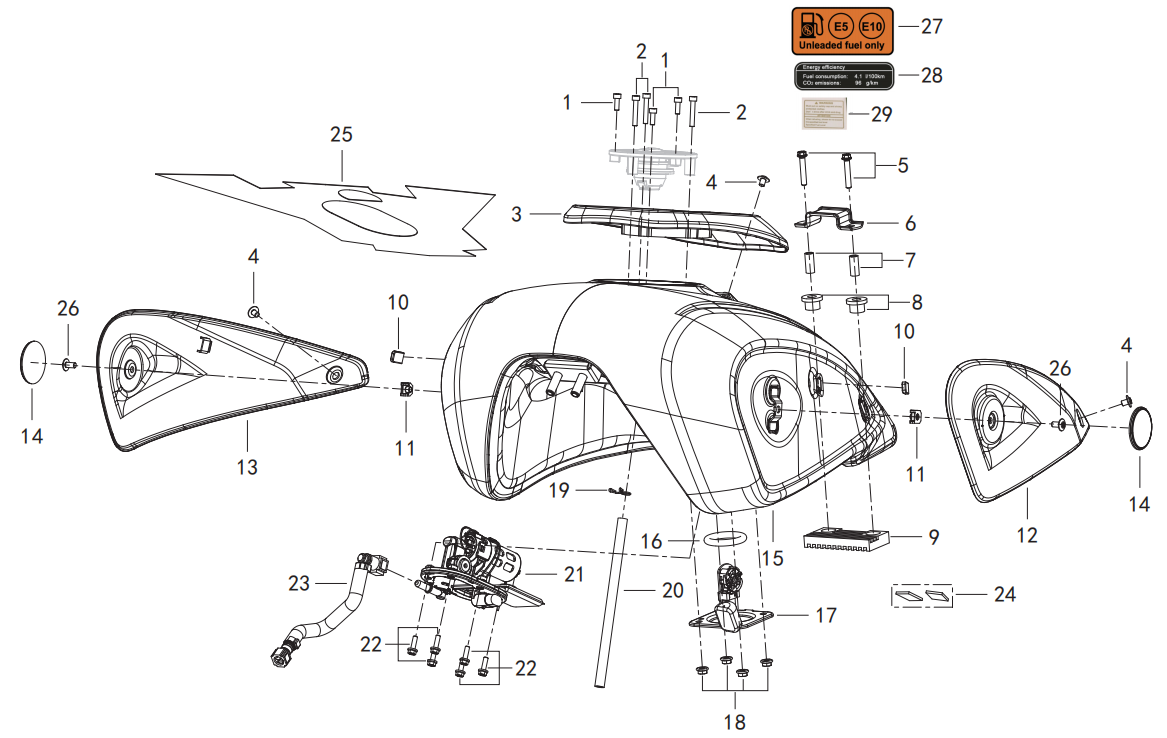

    F07 FUEL TANK ASSY. F07 FUEL TANK ASSY.

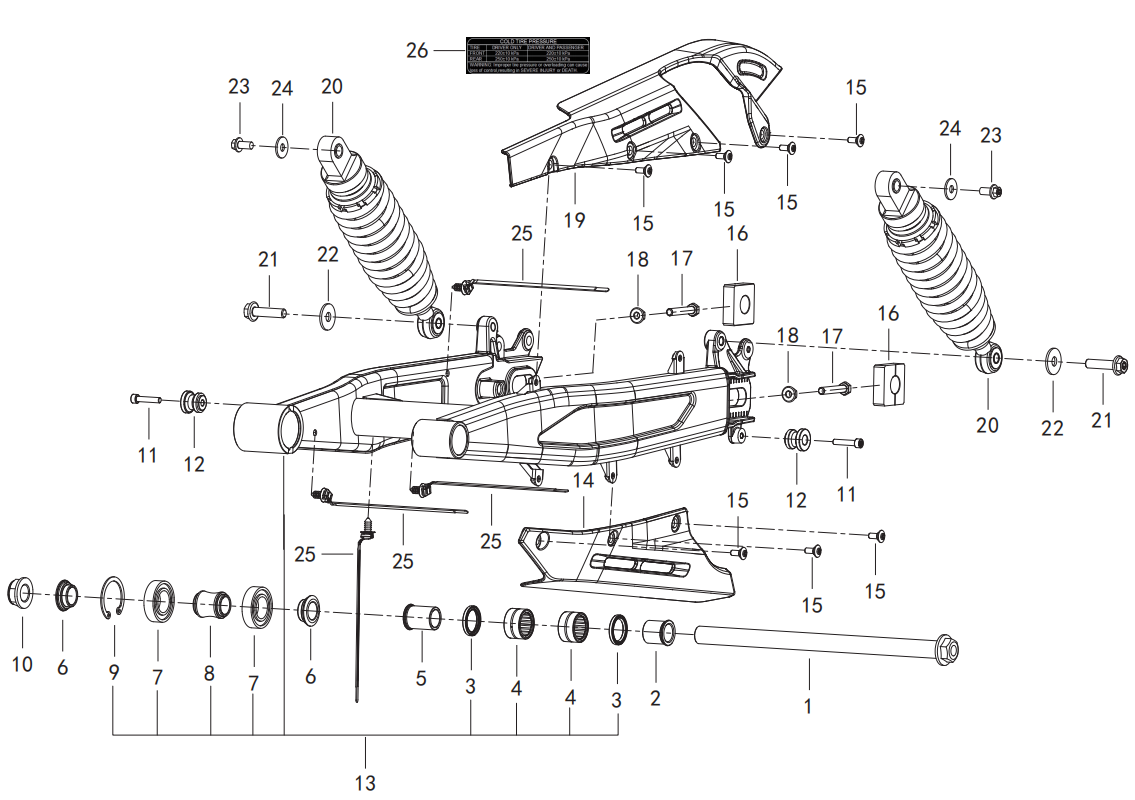

    F08 Ⅰ REAR SWINGING ARM ASSY. F08 Ⅰ REAR SWINGING ARM ASSY.
    F09 Ⅱ REAR SWINGING ARM ASSY. F09 Ⅱ REAR SWINGING ARM ASSY.

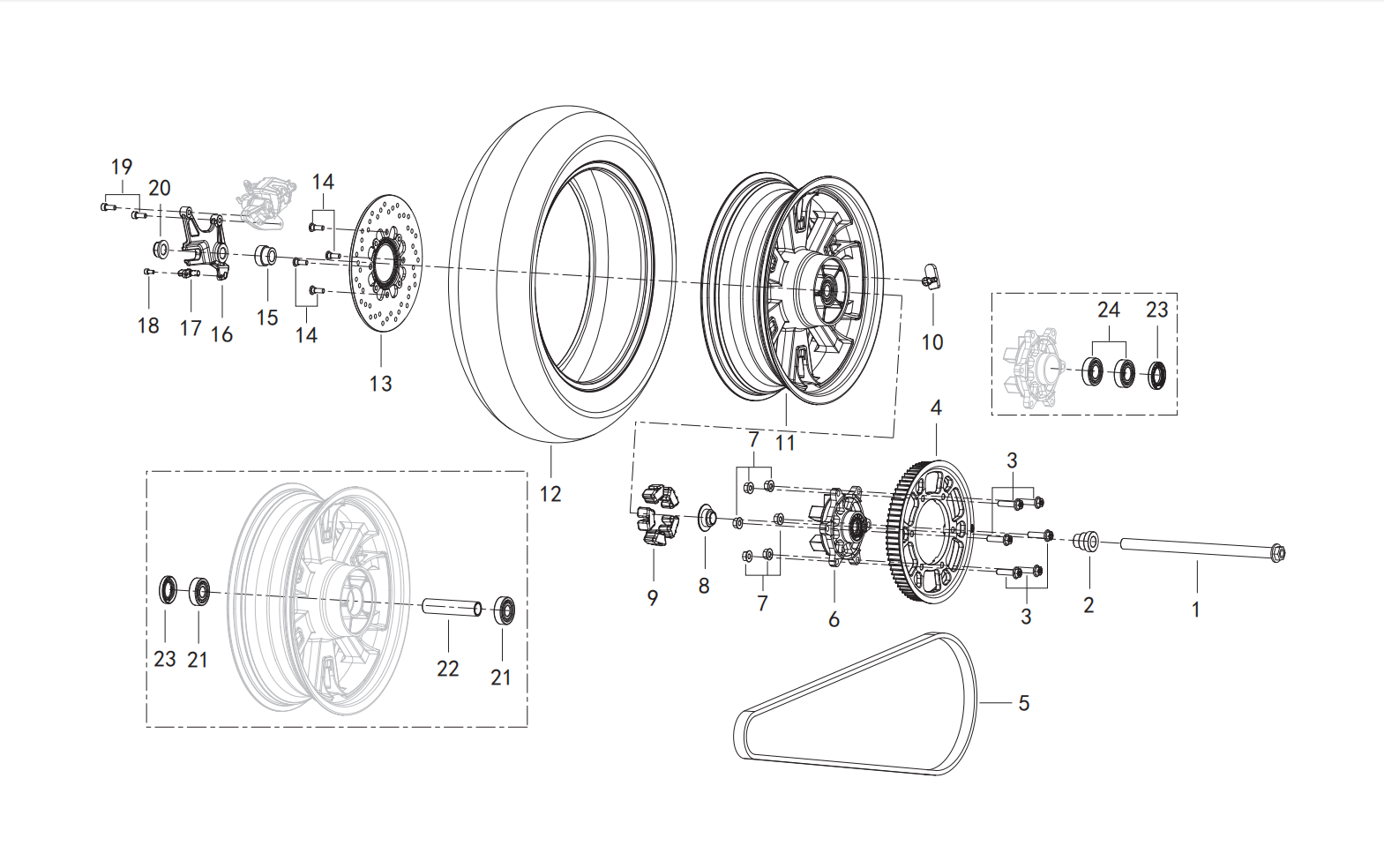

    F10 REAR WHEEL ASSY. F10 REAR WHEEL ASSY.

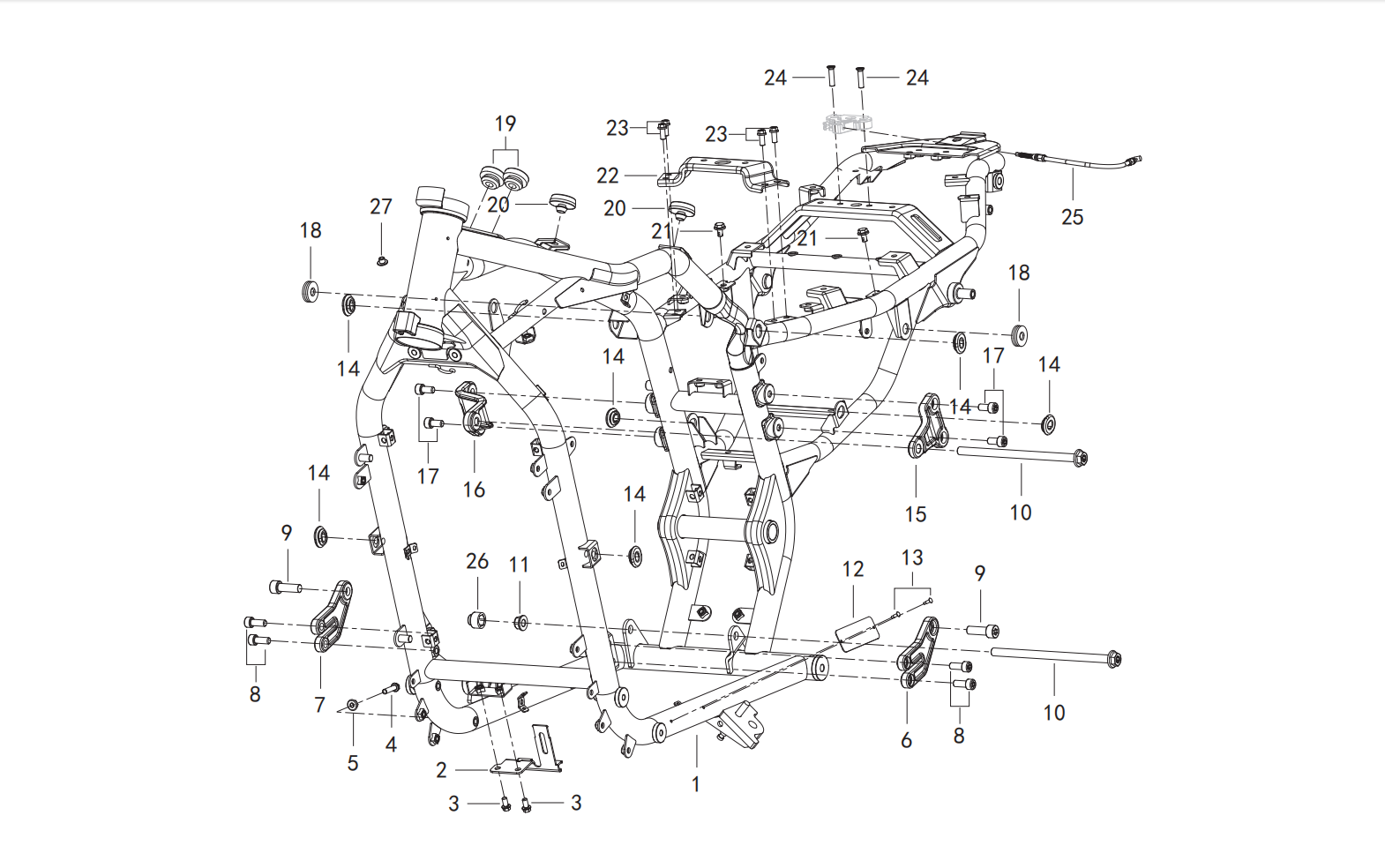

    F11 Ⅰ FRONT FRAME ASSY. F11 Ⅰ FRONT FRAME ASSY.

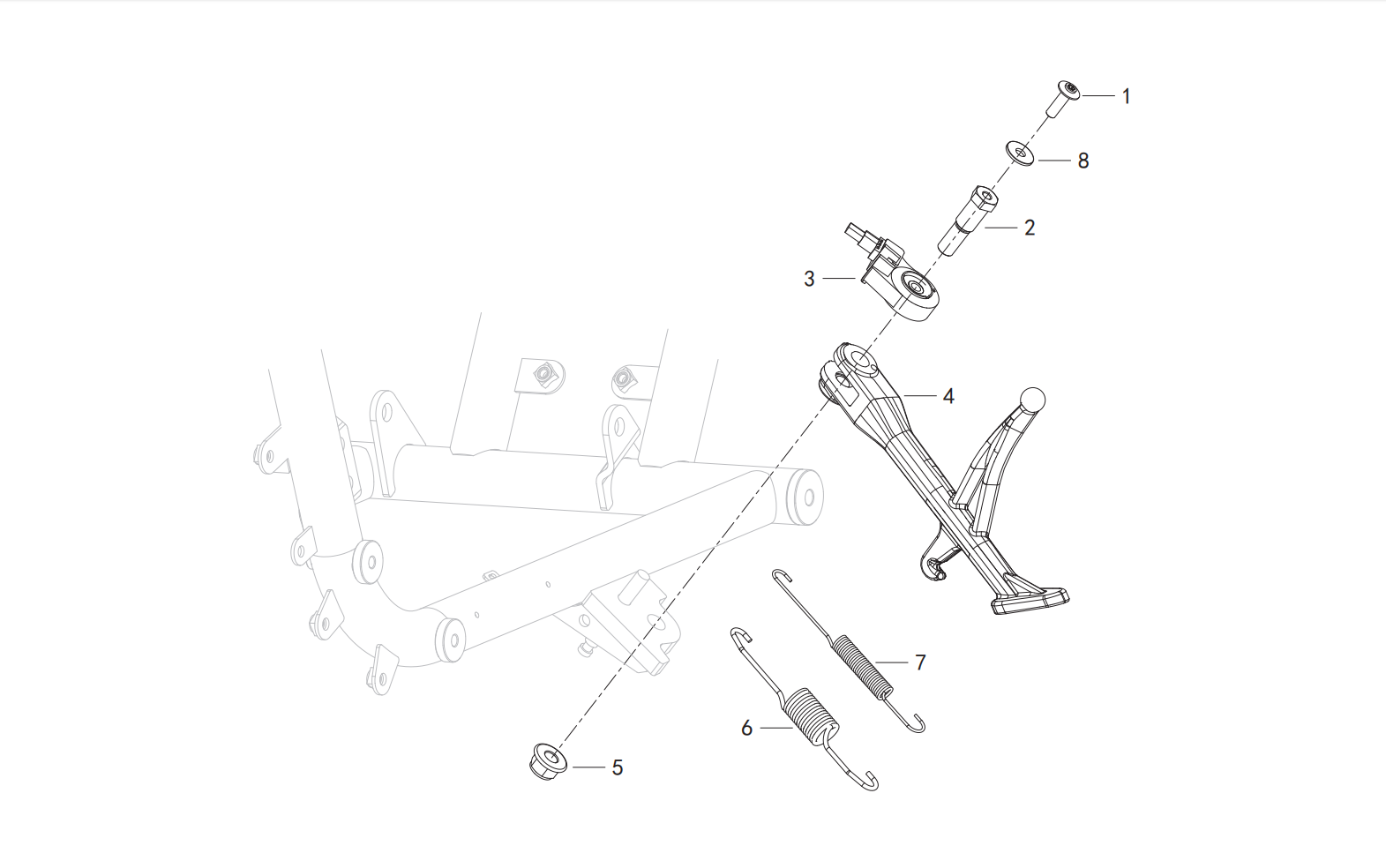

    F12 SIDE STAND ASSY. F12 SIDE STAND ASSY.

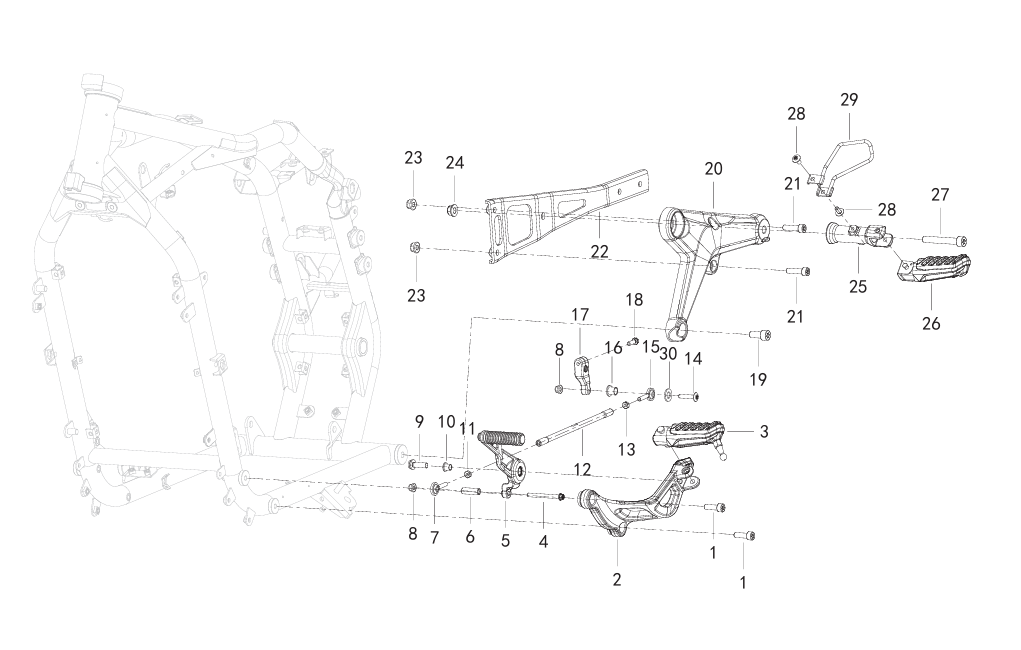

    F13 Ⅰ PEDALING ASSY. F13 Ⅰ PEDALING ASSY.

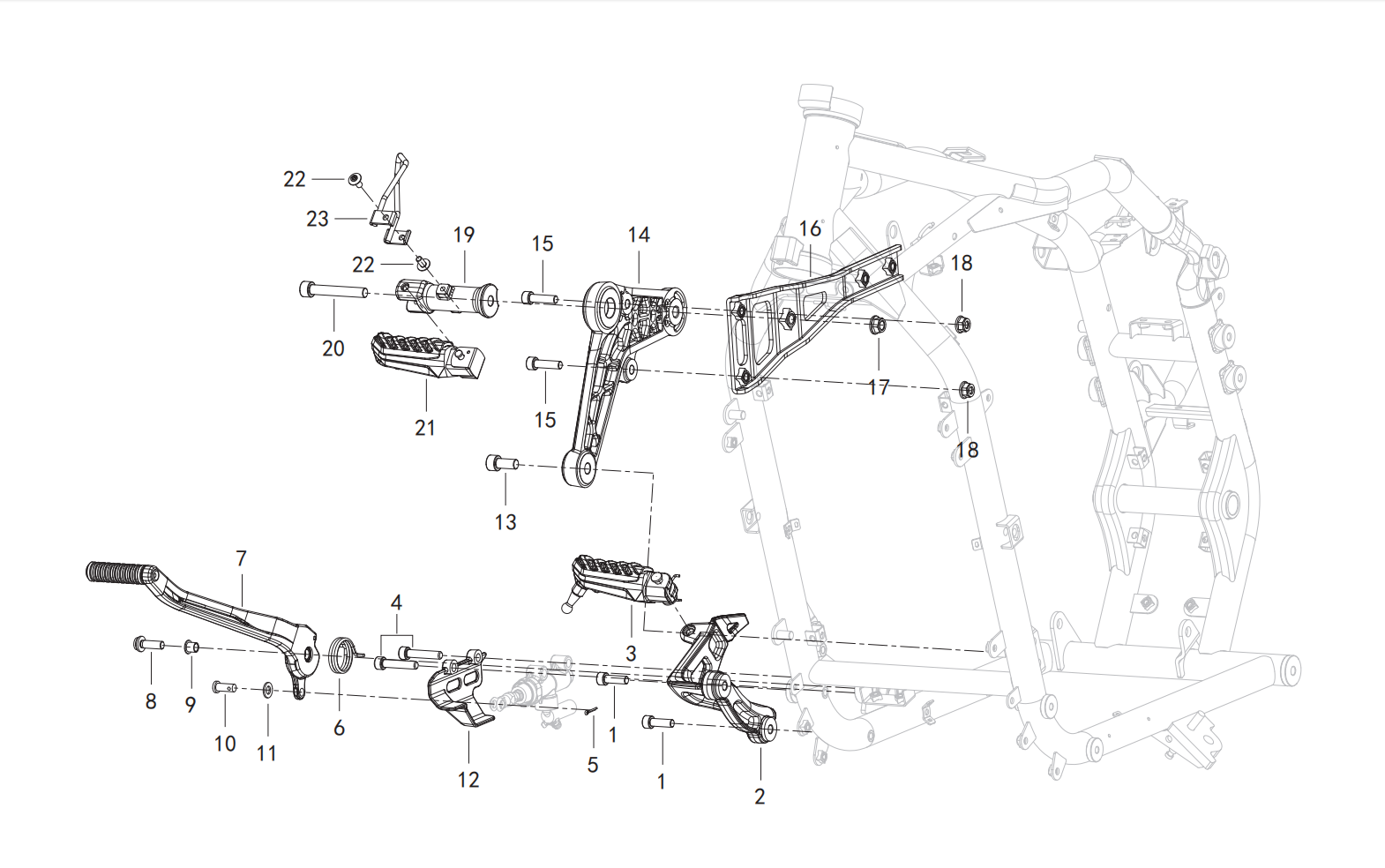

    F14 Ⅱ PEDALING ASSY. F14 Ⅱ PEDALING ASSY.

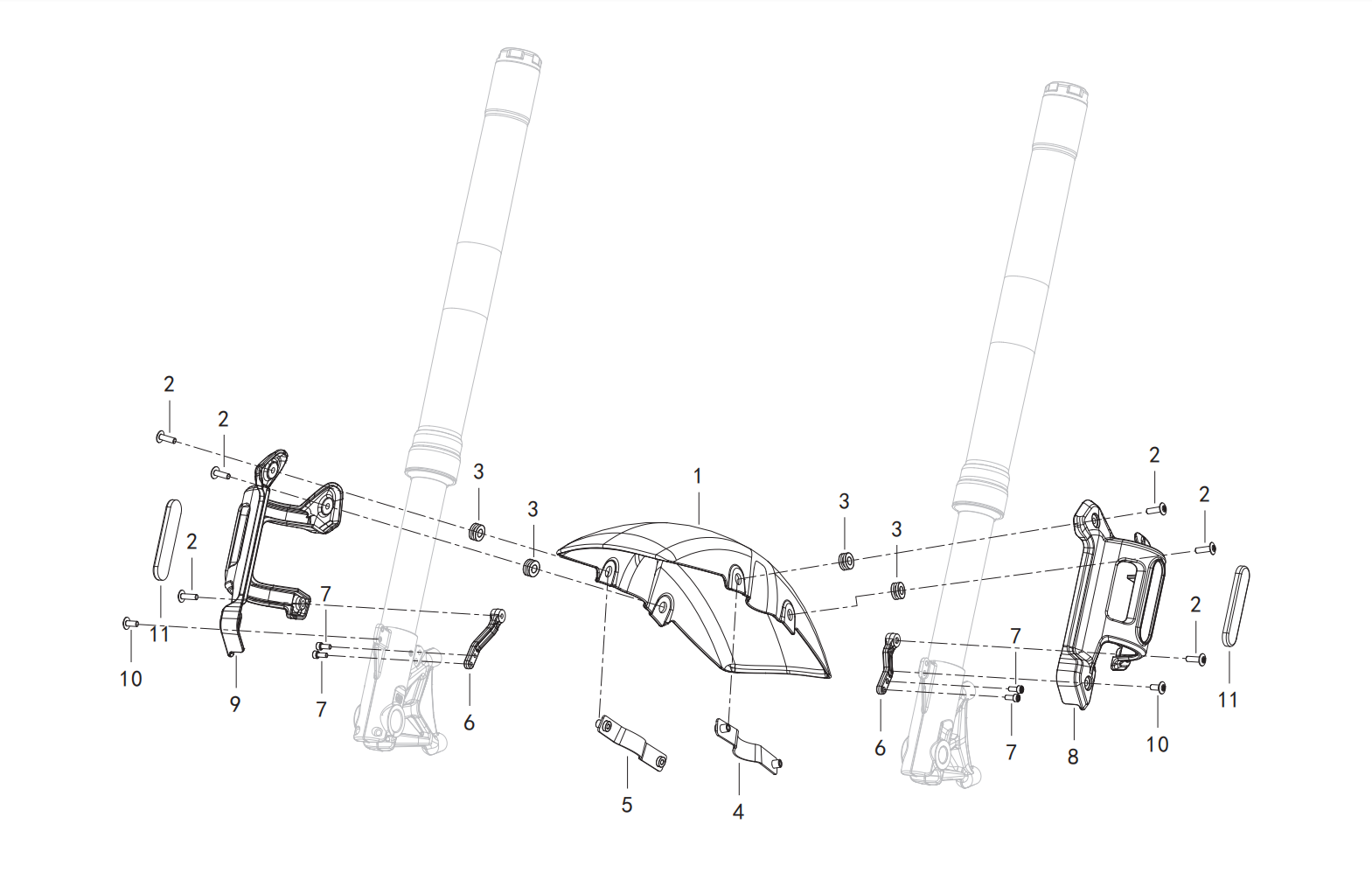

    F15 FRONT FENDER ASSY. F15 FRONT FENDER ASSY.

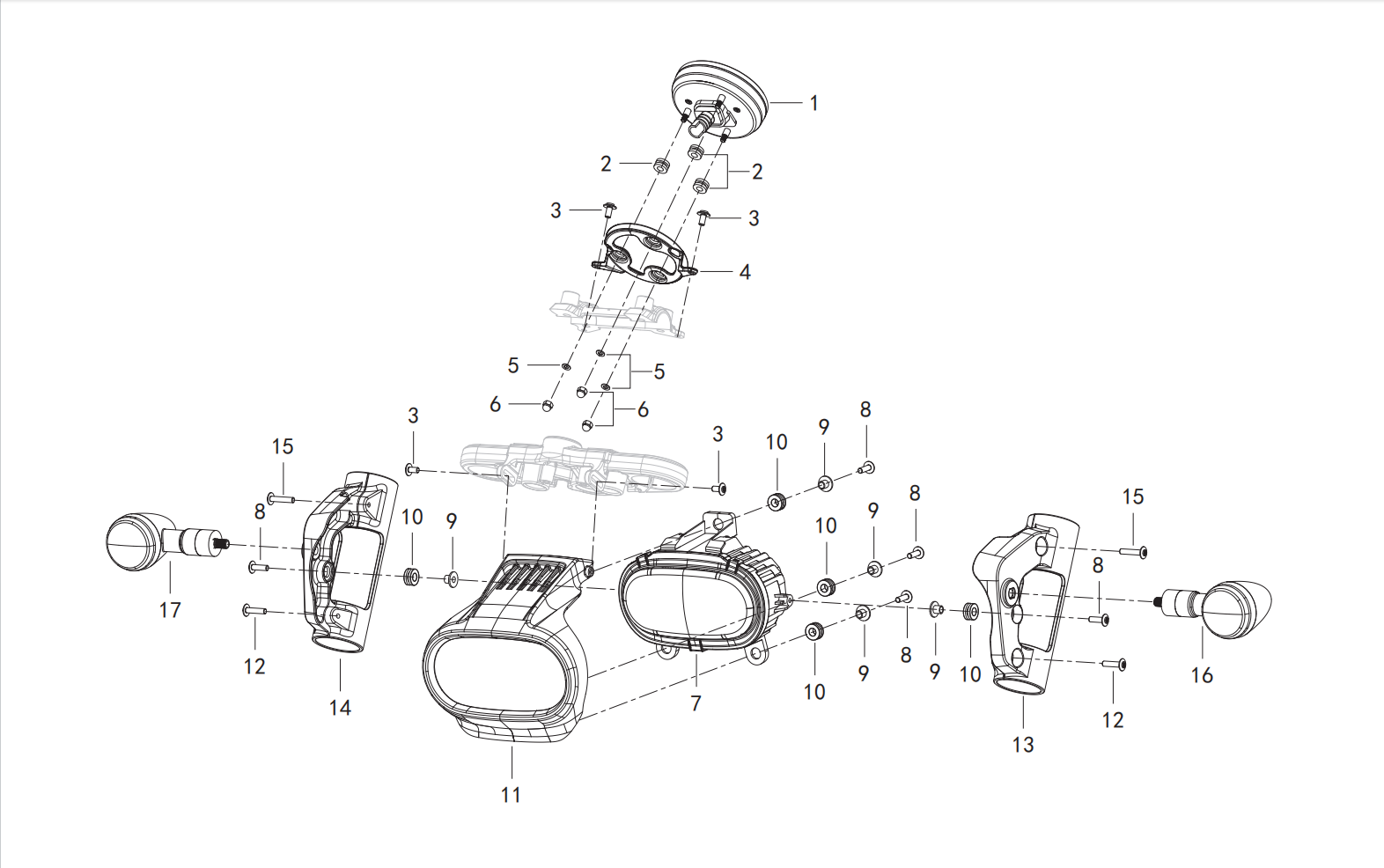

    F16 LIGHT & SPEEDOMETER ASSY. F16 LIGHT & SPEEDOMETER ASSY.

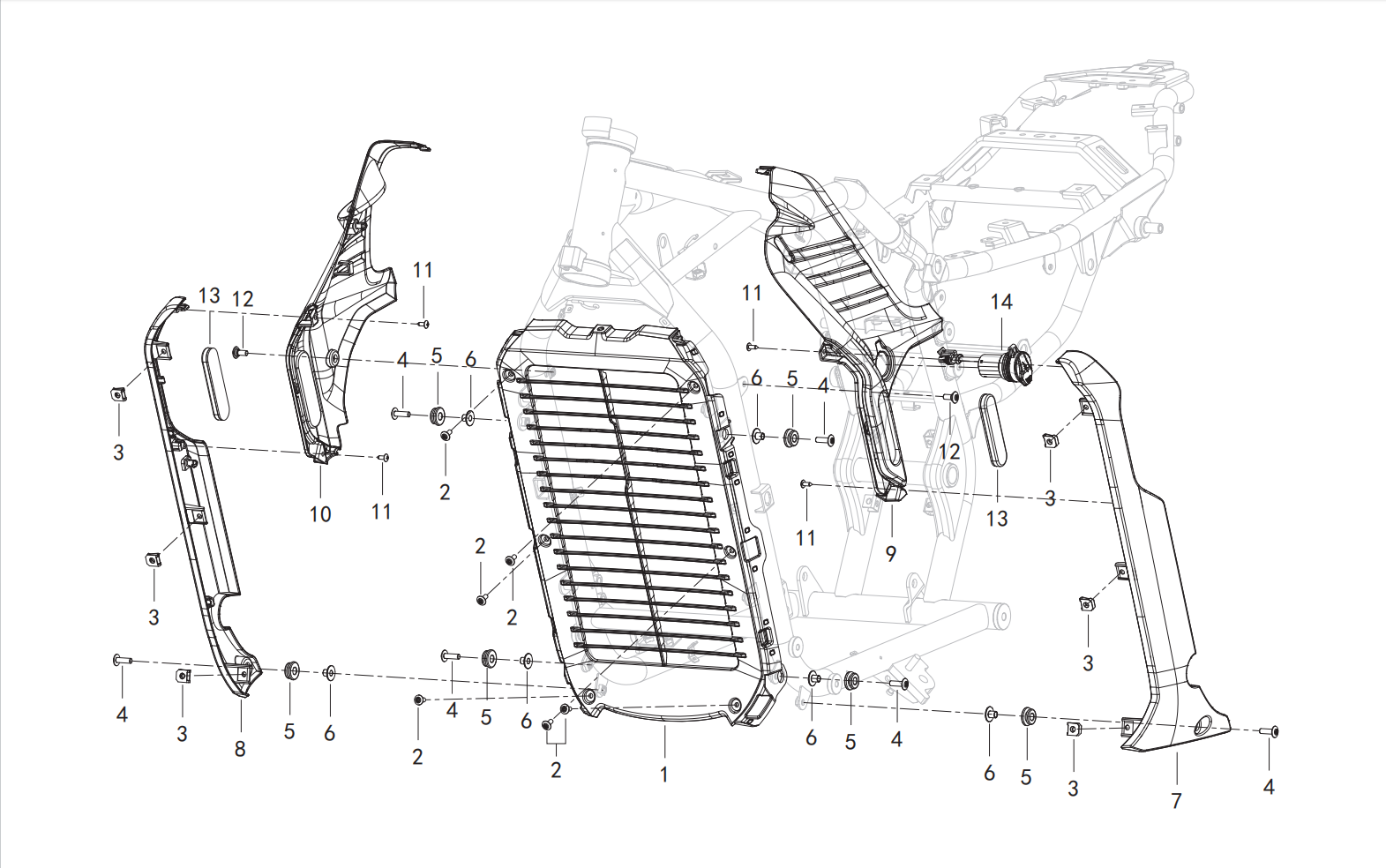

    F17 FRAME DECORATIVE PANEL ASSY. F17 FRAME DECORATIVE PANEL ASSY.

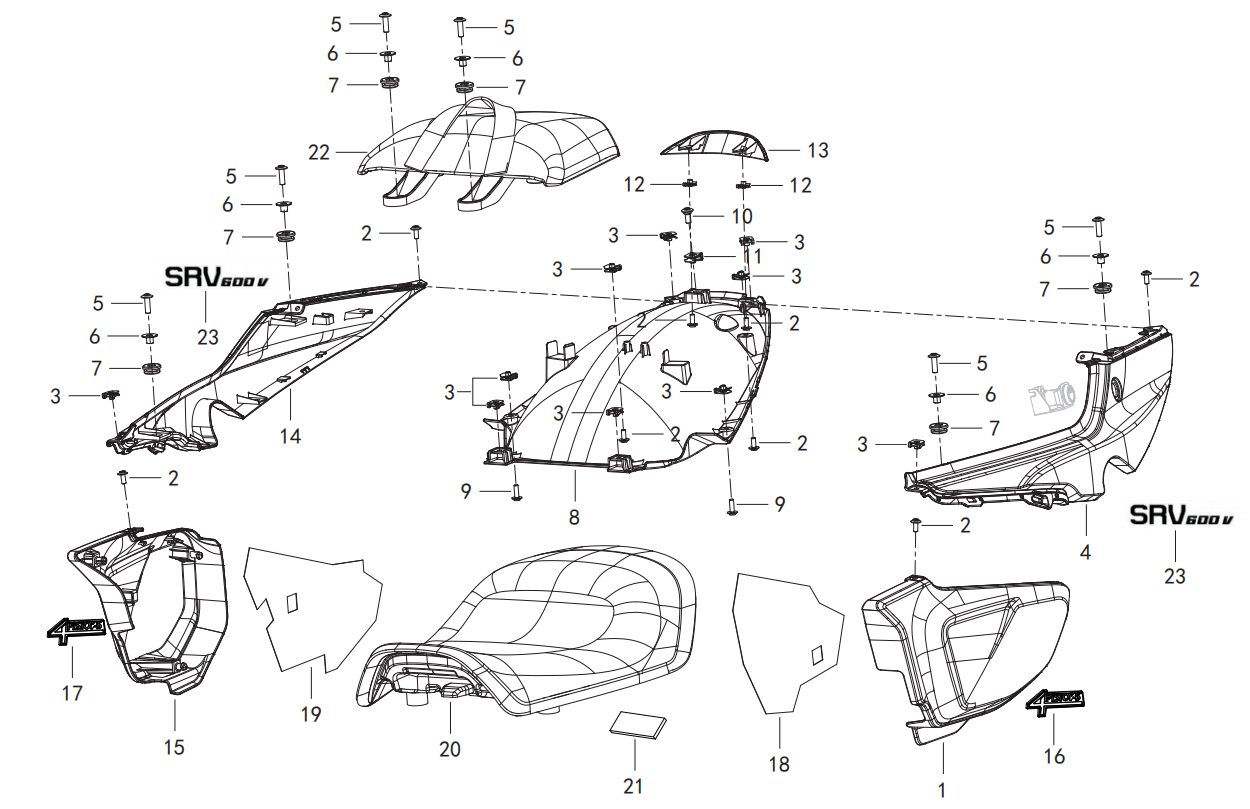

    F18 Ⅰ TAIL COVER ASSY. F18 Ⅰ TAIL COVER ASSY.

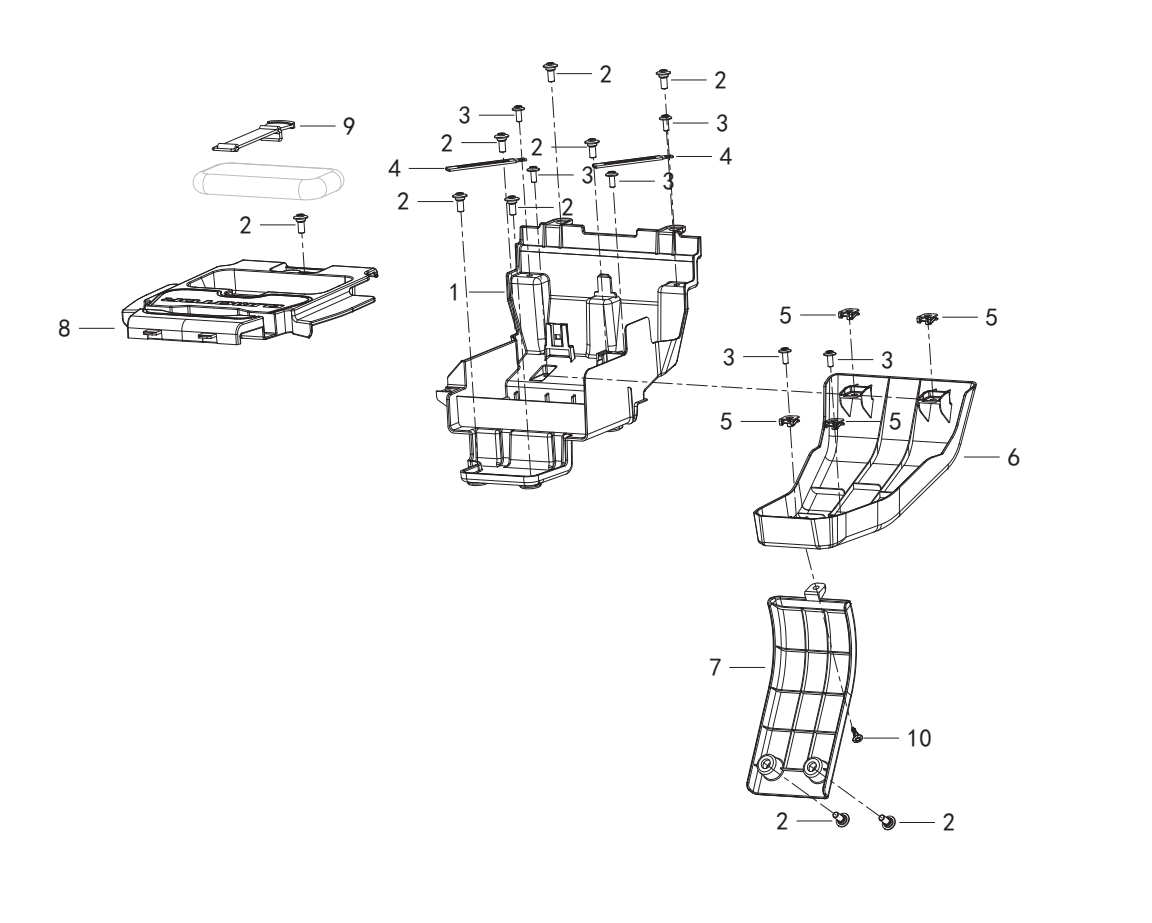

    F19 Ⅱ TAIL COVER ASSY. F19 Ⅱ TAIL COVER ASSY.

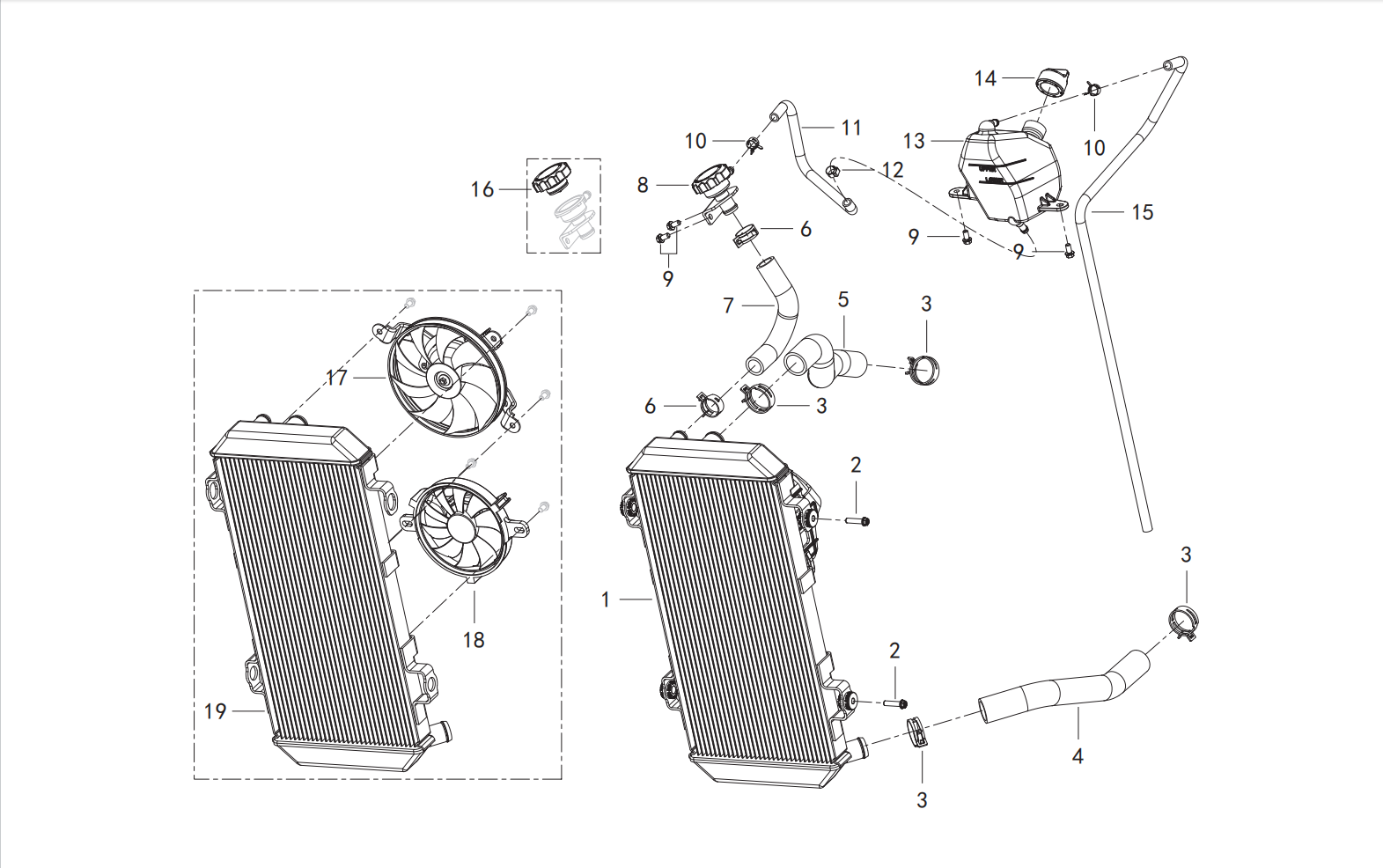

    F20 COOLING SYSTEM ASSY. F20 COOLING SYSTEM ASSY.

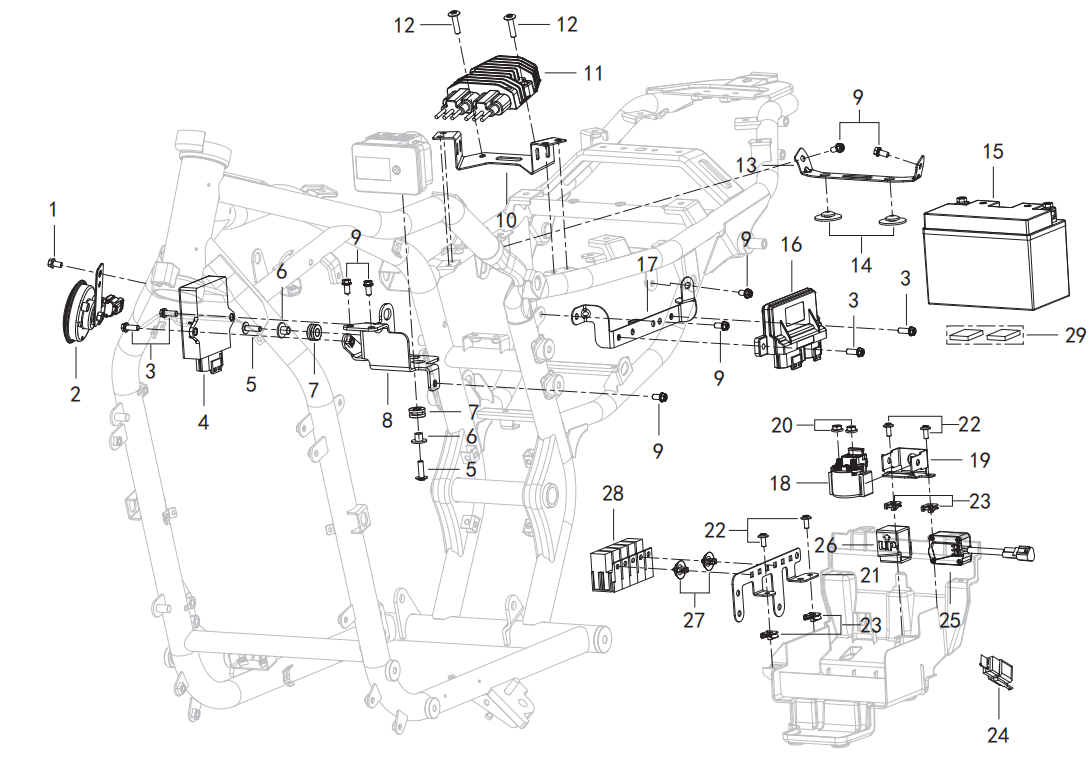

    F21 I ELECTRICAL EQUIPMENT ASSY. F21 I ELECTRICAL EQUIPMENT ASSY.

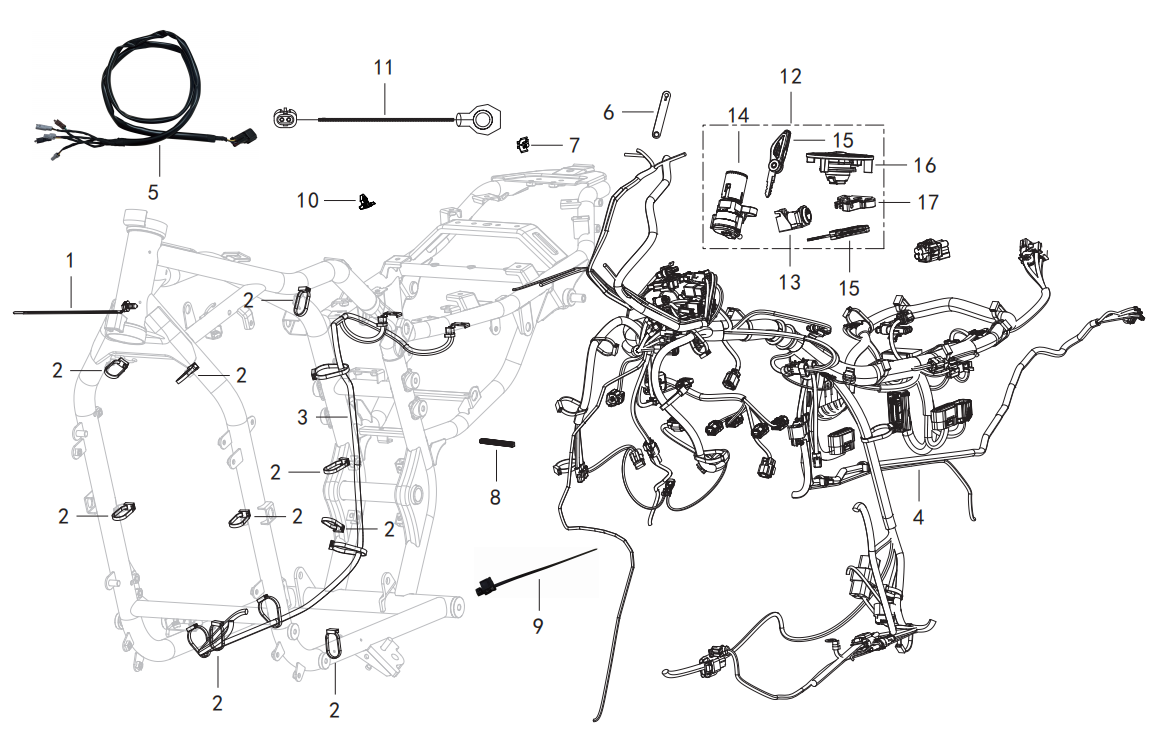

    F22 II ELECTRICAL EQUIPMENT ASSY. F22 II ELECTRICAL EQUIPMENT ASSY.

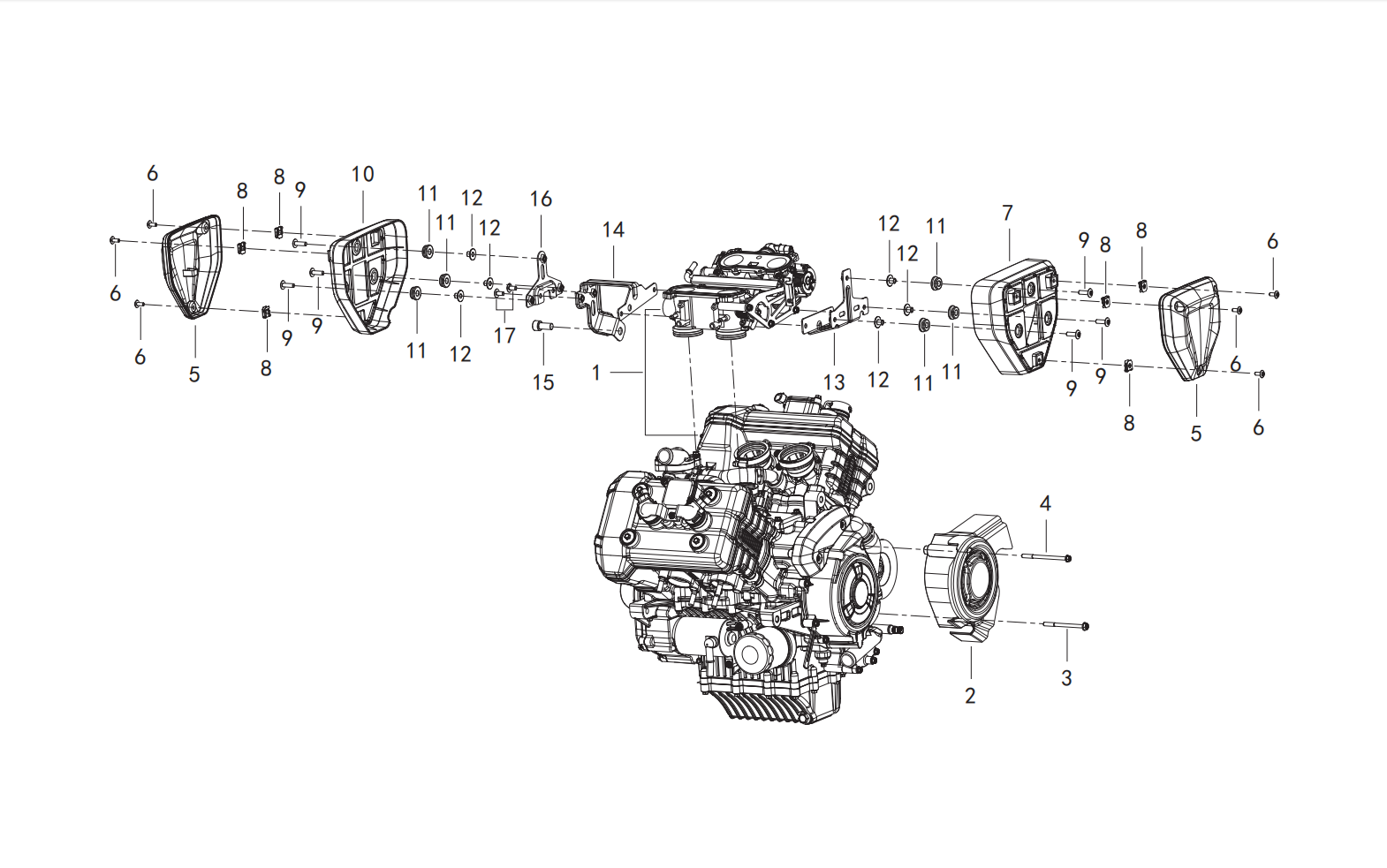

    F23 ENGINE ATTACHMENT ASSY. F23 ENGINE ATTACHMENT ASSY.

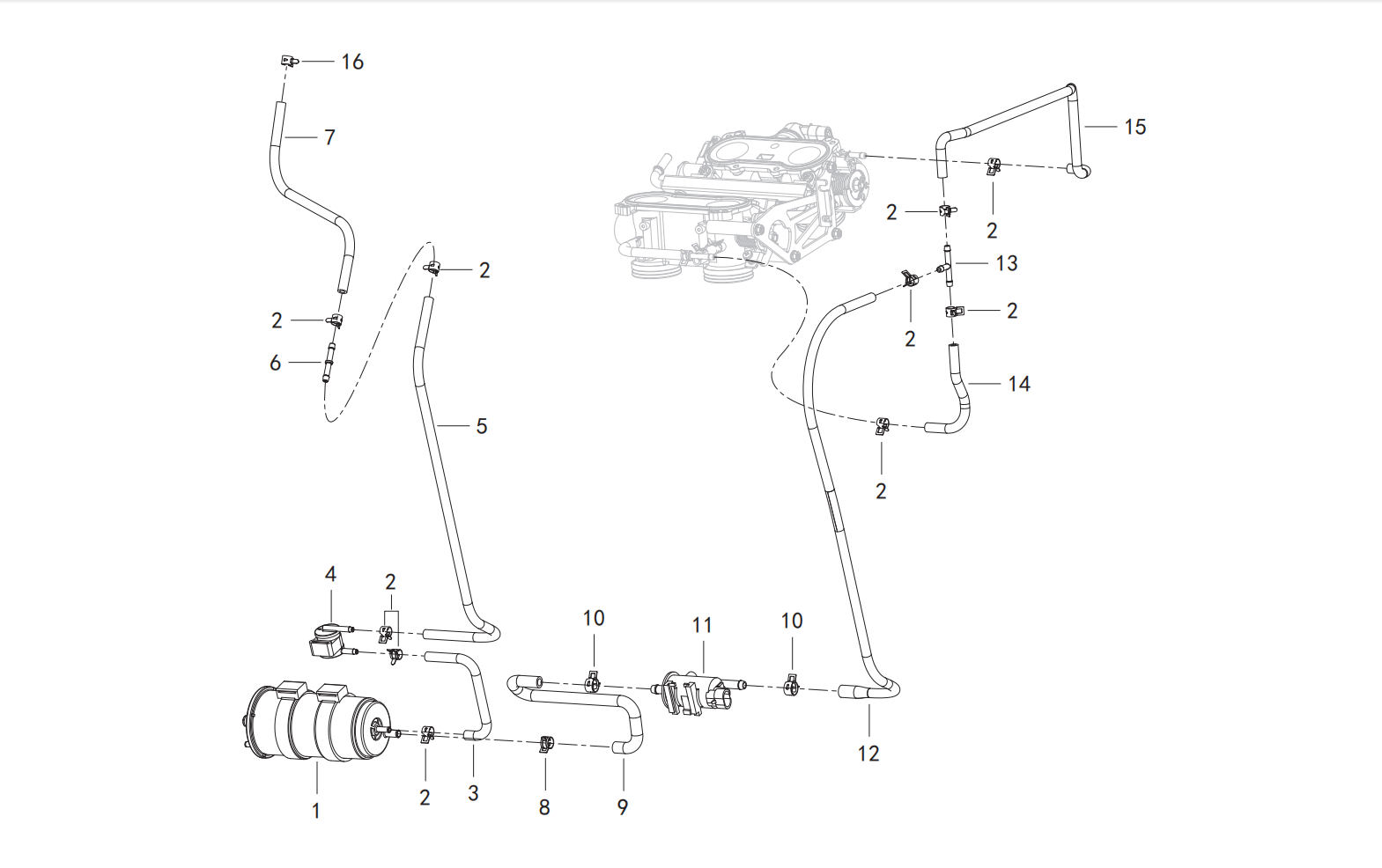

    F24 CARBON CANISTER ASSY. F24 CARBON CANISTER ASSY.
    F25 REPLENISH QI TWICE F25 REPLENISH QI TWICE

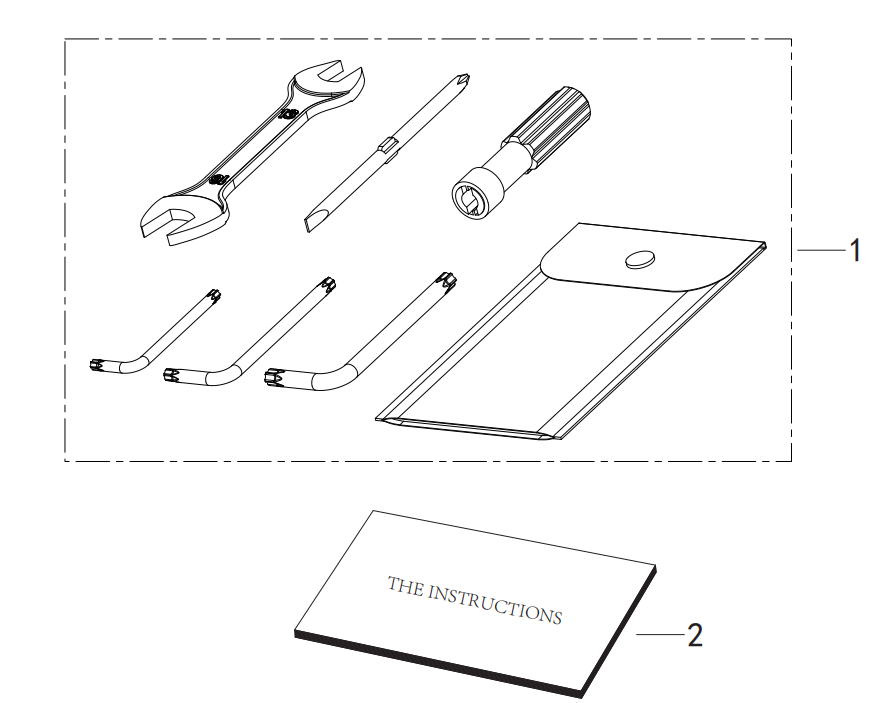

    F26 TOOL KIT ASSY. F26 TOOL KIT ASSY.
